Woodpeckers Corner Jig Routing Guide – Chamfer and Radius Profiles Deluxe Set - CJ-SET-DL-24

Woodpeckers Corner Jig Routing Guide – Chamfer and Radius Profiles Deluxe Set

ref: CJ-SET-DL-24

• Use with Hand-Held Router for Large Panels or with Router Table for Small Parts.
• Just pick the radius or chamfer you want, attach it to the base plate and you’re ready to rout a perfect corner…either hand-held or on your router table.

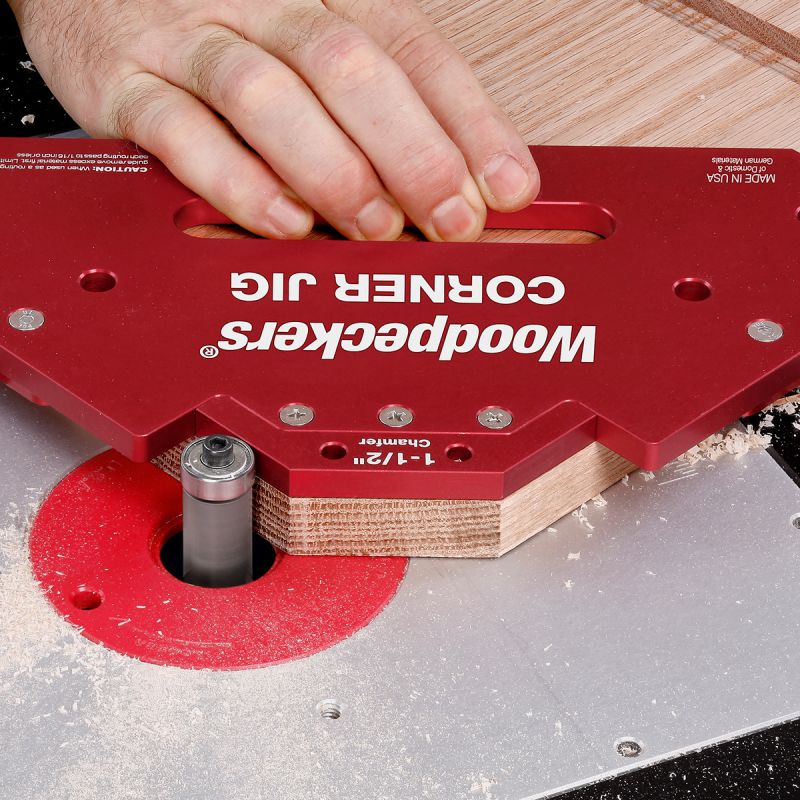

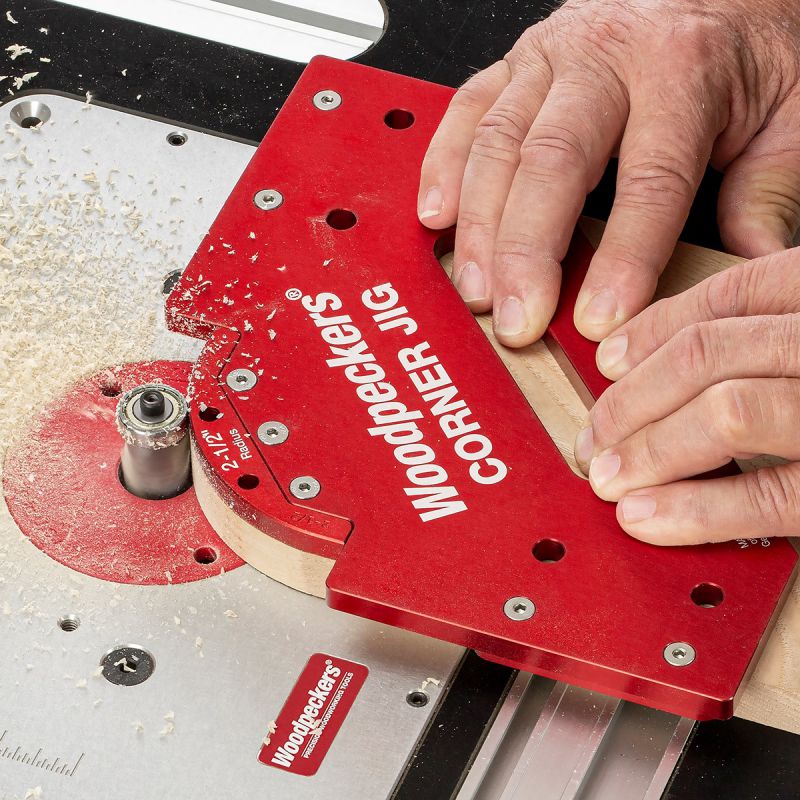

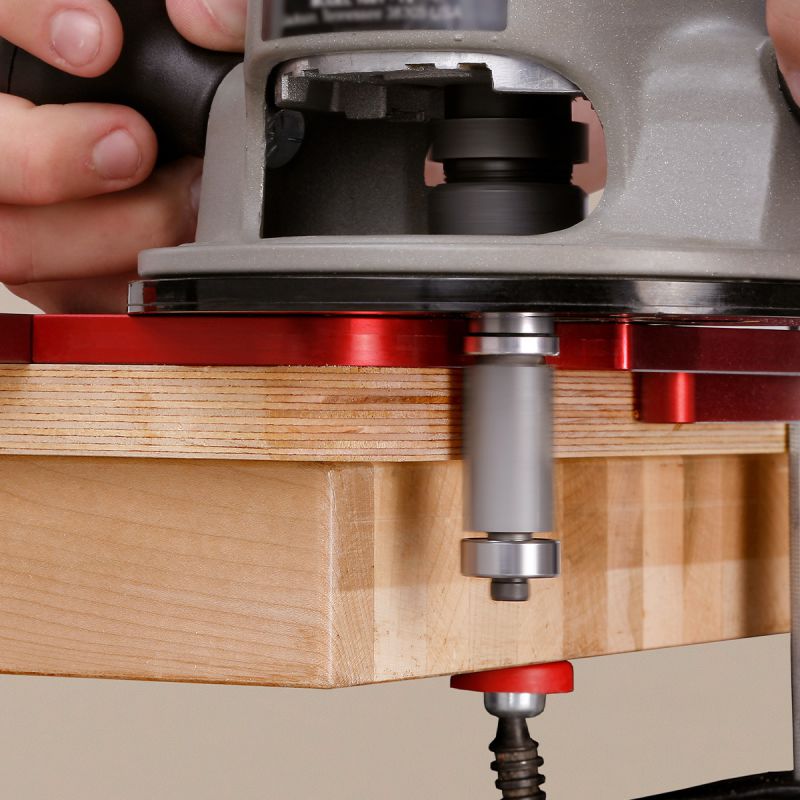

• We focused on versatility when we designed the Corner Jig. You can use it on your router table or with a hand-held router. You’ll get the same flawless results either way. Larger projects like table tops are easier when clamped to a bench and routed with a hand-held router. Smaller projects move along faster doing them on the router table. Either way, just guide the template along the bearing of a flush trim bit for a smooth, even radius or chamfer. You’ll machine a perfect corner every time.

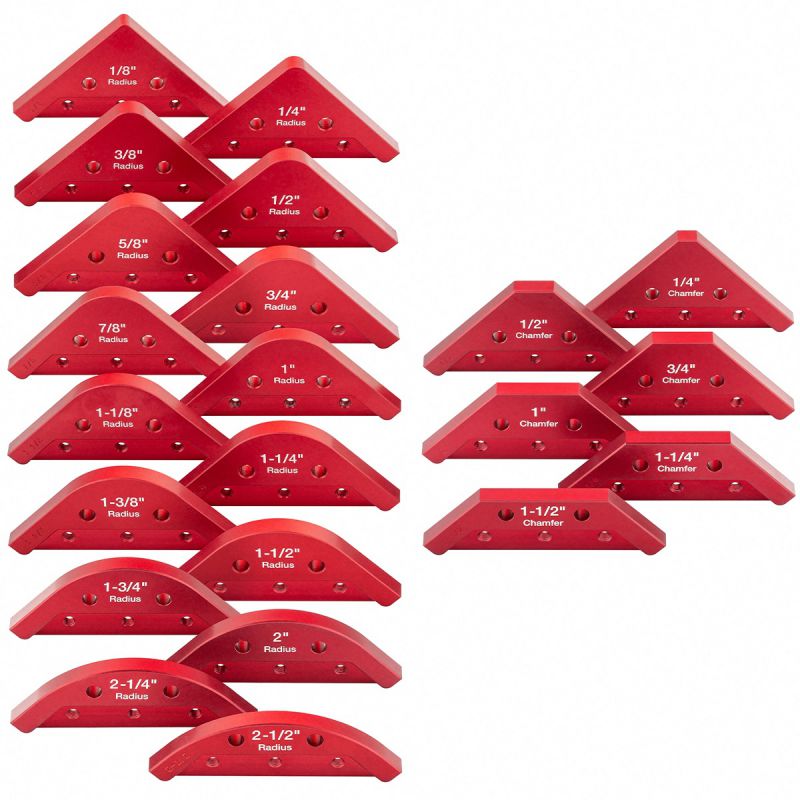

• The 16 radius templates start at 1/8" and run to 1-1/2" in eighth-inch increments and from 1-3/4" to 2-1/2" in quarter-inch increments. The chamfer templates run from 1/4" to 1-1/2" in quarter inch increments. When you’re deciding the style and size of the softened corner you want, just try them out on the corner of your work until you decide which looks best.
• Woodpeckers Corner Jig starts with a hefty base milled from cast and ground aluminum plate…the same top-quality material we use in our router lifts and precision squares. The 22 different templates mount to the base with three stainless steel screws. All the aluminum components are anodized for corrosion protection and to give them our distinctive “Woodpecker Red” appearance.

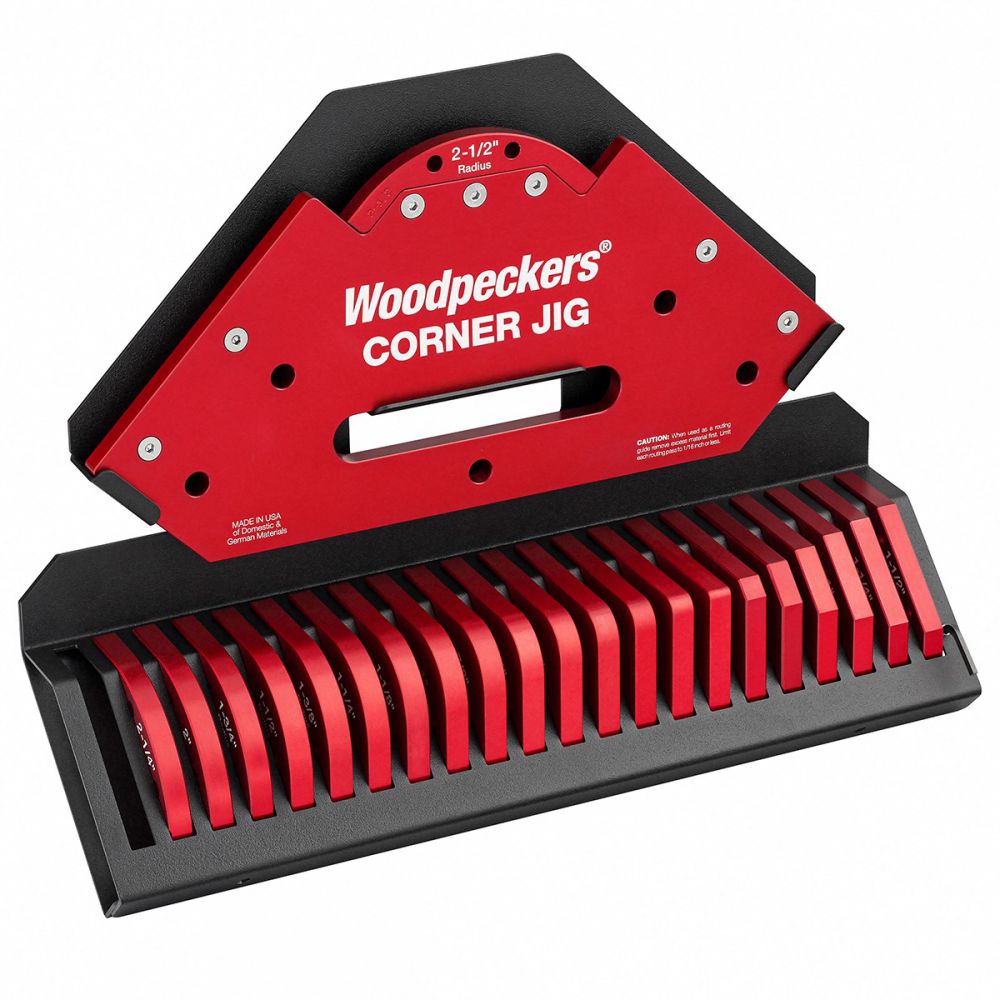

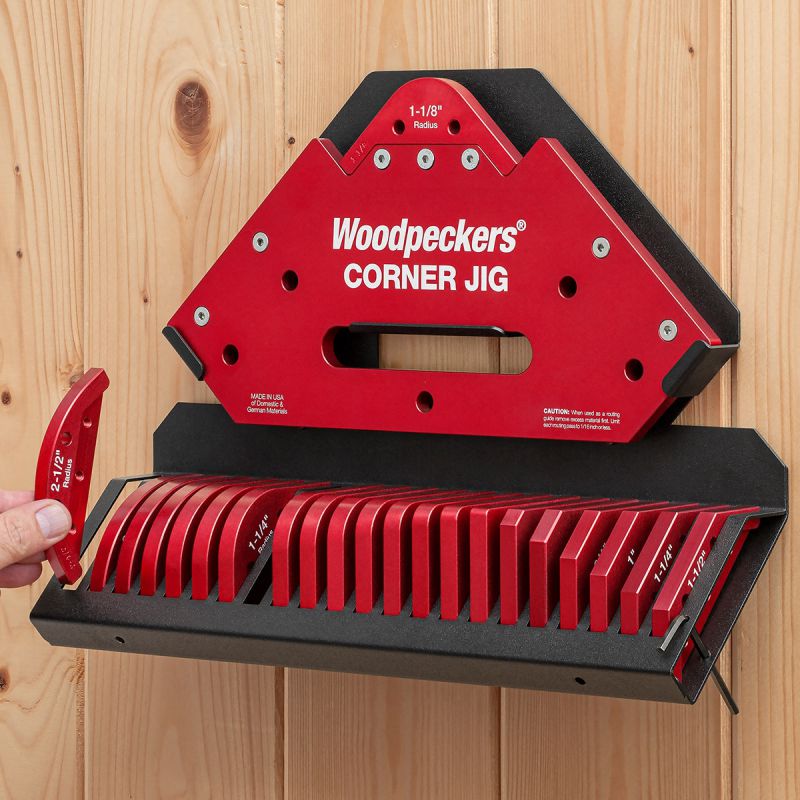

• We’re offering the Woodpeckers Corner Jig in three different sets, Radius, Chamfer and Deluxe. All sets include the Corner Jig Base and a wall-mountable Rack-It.
