Woodpeckers Precision Taper Jig 48" - PTJ-48

Woodpeckers Precision Taper Jig 48"

ref: PTJ-48

• Woodpeckers Precision Taper Jig takes a 120-year-old tool design and brings it into the 21st Century with modern materials and cutting-edge manufacturing techniques. This updated version of the traditional taper jig offers instantly repeatable quarter-degree angle setting, material clamping, zero-clearance material support and length capacity that can extend up to 48".

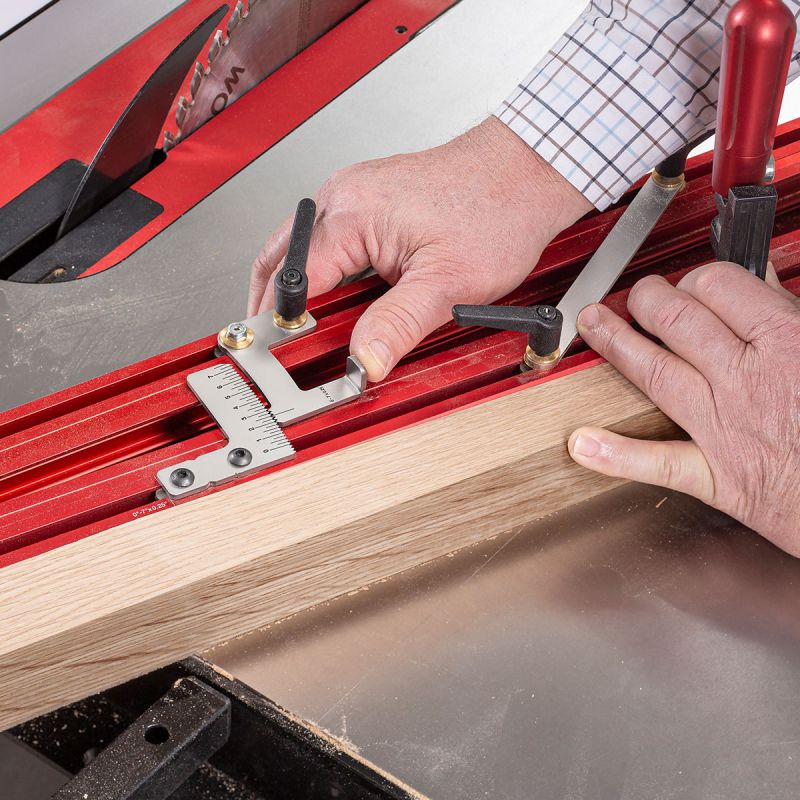

• Setting the angle of the Precision Taper Jig couldn’t be easier. A scale with interlocking teeth sets the angle precisely in quarter-degree increments from 0° to 7°. For larger angles, you can switch to the other scale which goes from 0° to 15° in half-degree increments. Should you need to change the angle, the interlocking teeth assure perfect realignment.

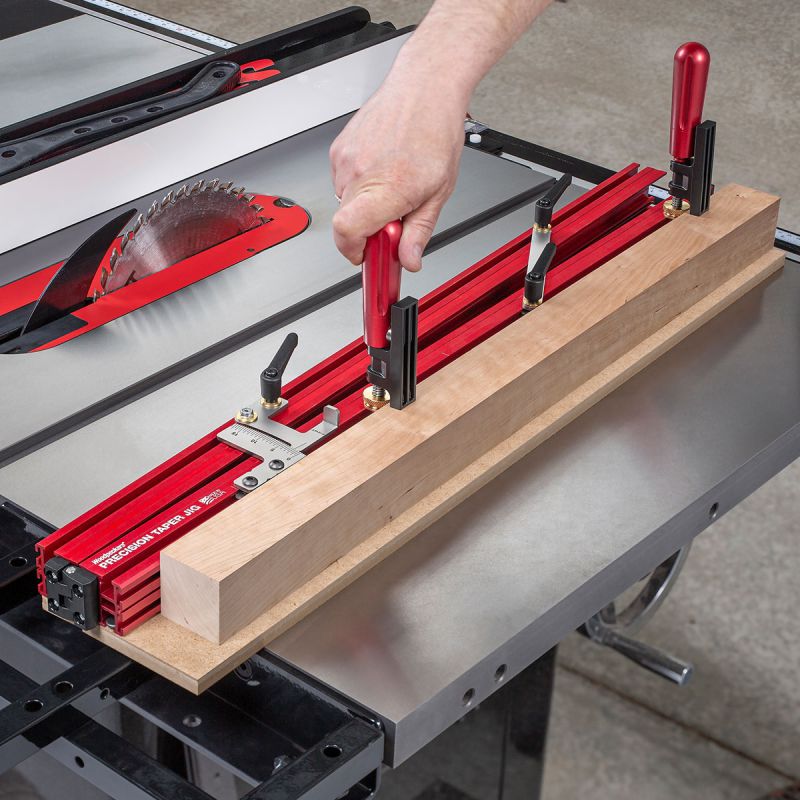

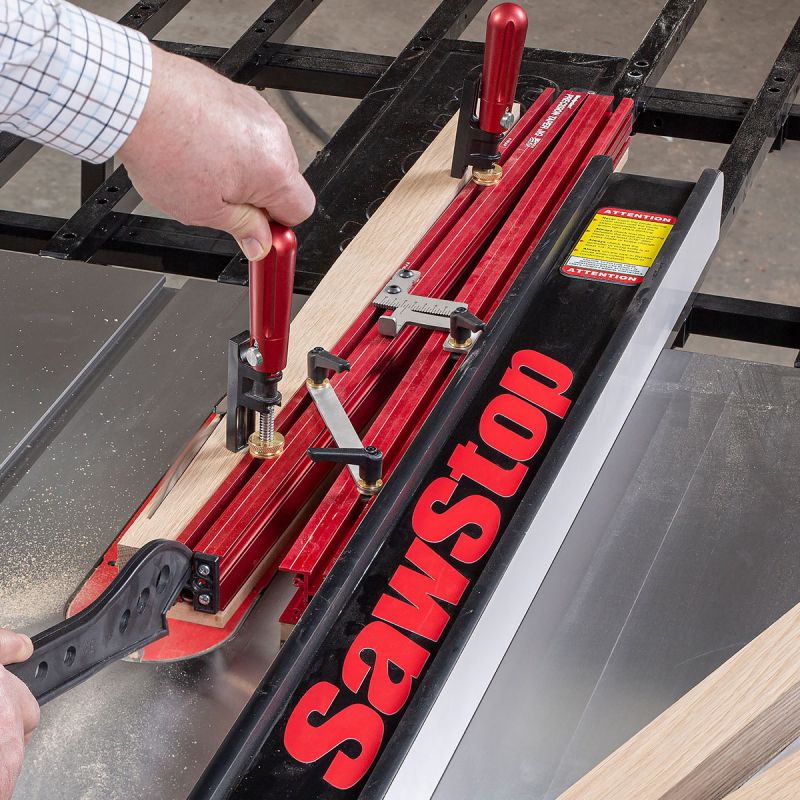

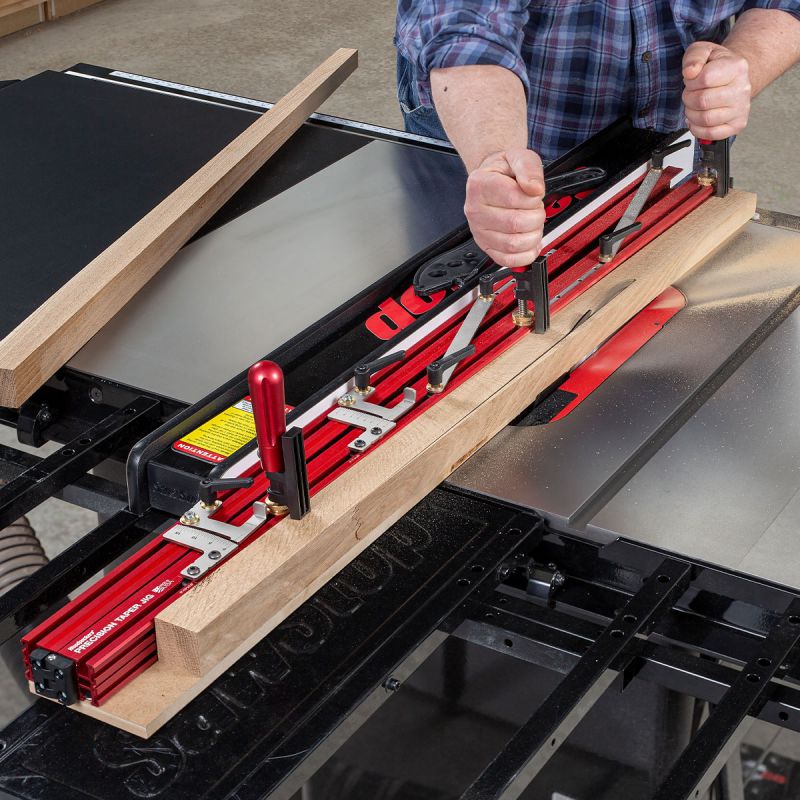

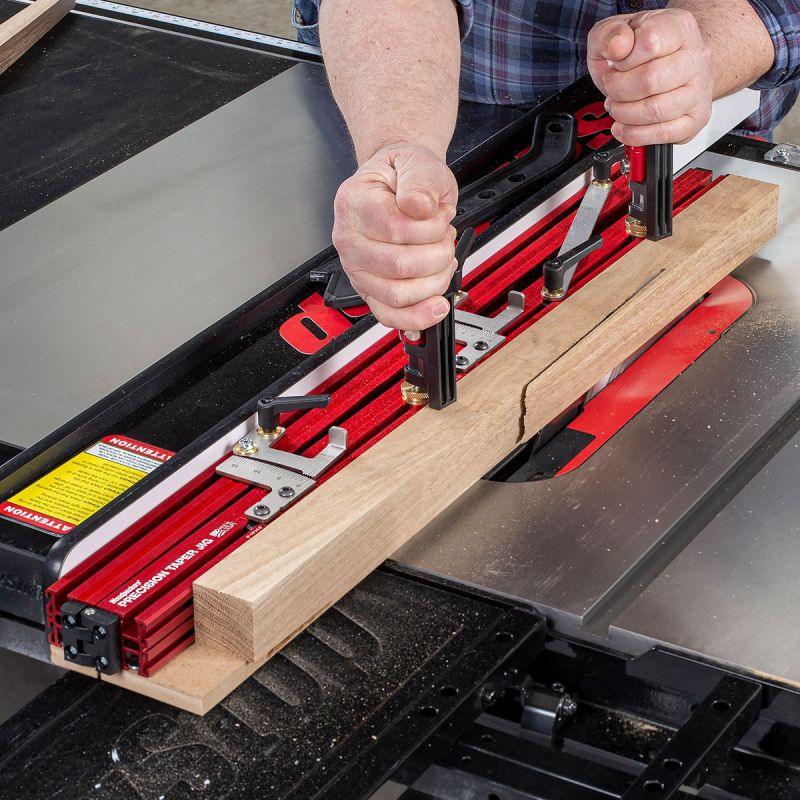

• We've put thought into safe and efficient operation, too. There’s a sacrificial MDF sled on the bottom and quick-release clamps riding in the extrusion tracks. With quick-release adjustment and a clamping range from 3" down to just 17/32", the clamps are simple to use for all manner of tapered projects.  The clamping handles serve double-duty as convenient gripping points for pushing the jig. And, the MDF sled eliminates any worry about bottom-side tear-out.

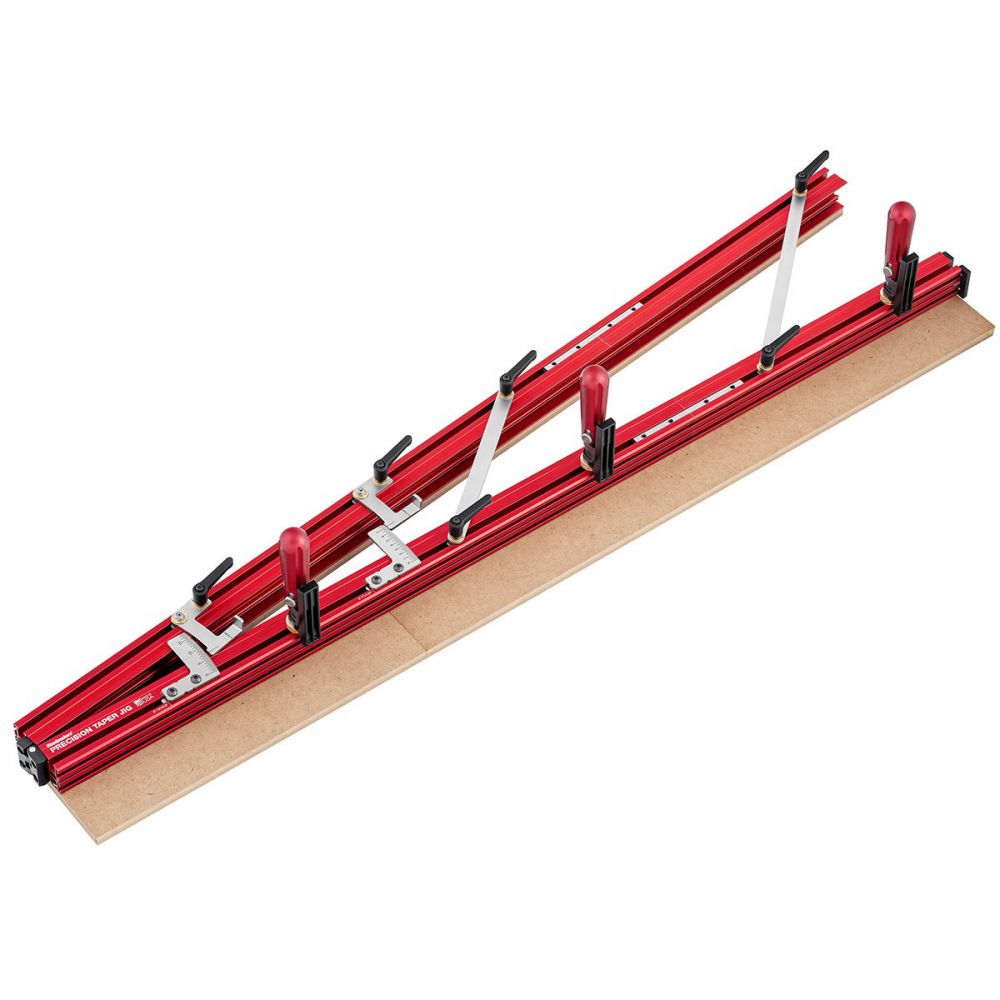

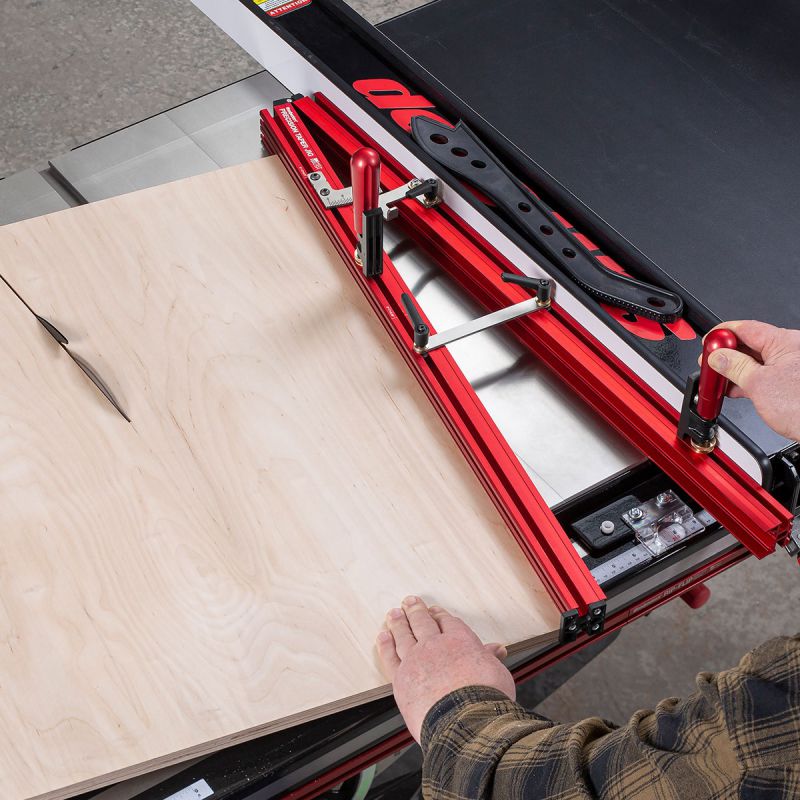

• For wider stock, you have two choices. You can make a sacrificial sled the same size as your workpiece or you can remove the sled and use the Precision Taper Jig riding straight on the table like all the rest. It’s your choice. If you need more than the 32" capacity of the standard Precision Taper Jig, you can expand it to 48". Even better, if you buy the standard unit now and take on a project that’s over 32" a year from now, the extension kit can be added at any time.
• There’s never been a taper jig with all these features; capacity that can extend from 32" to 48" in a matter of minutes, quarter-degree angle resolution that’s instantly repeatable, material clamping and zero-clearance support. This is a handsome, well-built tool that you’ll be proud to have in your shop. It’s designed and built to serve generations of woodworkers to come.
• Please note: images are for illustration purposes, please check the specification to ensure you order the correct product.

• PRECISION TAPER JIG - 48 INCH SKU: PTJ-48
• Includes (2) 32" Extrusion Tracks, (2) 16" Extrusion Tracks, MDF Sleds, (3) Clamping Handles, (1) 0°-15° x 0.5° Scale, (1) 0°-7° x 0.25° Scale, (1) Short Span Clamp, (1) Long Span Clamp and Hardware.
