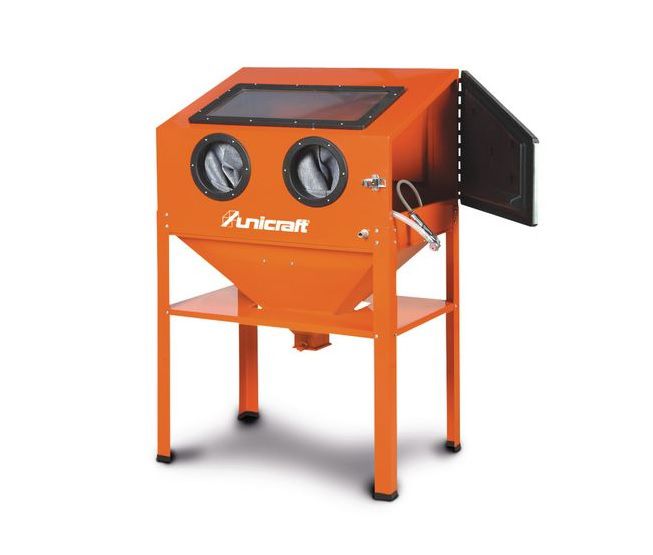

Sturmer Unicraft SSK 2 Floor Standing Multi-App Sand Blaster - 220Ltr Cabin

X
Product Code: STU/6204001
Brand: Stuermer
In Offsite Stock - Delivery in 4 to 5 Days
£395.99 Inc. VAT
£329.99 Exc. VAT
✗ COLLECTION
✓ DELIVERY
Please call to check stock availability for larger quantities
Qty
Stuermer
Special

Sturmer Unicraft

SSK 2 Floor Standing Multi-App Sand Blaster - 220Ltr Cabin

ref: 6204001



Key Features

  • SSK 2 Floor standing Multi-app sand blaster + 80kg max load weight + HQ blasting gun + 4 x ceramic nozzles + 5 x replacement foils for viewing windows
  • For clean blasting without pollution of the working environment
  • Suitable for various blasting materials, eg quartz, glass ball, plastic ball, etc.
  • Ideal for cleaning, rust removal or paint removal of metal parts of all kinds, eg engine parts, fittings, signs, housings, rims, hinges
  • High-quality work gloves made of latex are firmly attached to the housing
  • Optimum vision and work safety during workpiece machining due to the lens with glued-on protective foil
  • Dust-free work due to circumferential seals on cover and door frame
  • Stable storage grid allows laying of workpieces in the cabin interior
  • With drain opening for changing the blasting material
  • Suction pipe for the blasting material attached to the bottom of the collecting container
  • With compressed air connection on the outside
  • Glass bead blasting, corundum blasting, silicon carbide, plastic blasting, etc. can be used

Room amenities:

  • A large side door for loading and unloading
  • 2 exhaust air openings (1 exhaust air connection ø 92 mm and 1 exhaust air outlet ø 64 mm) for connecting an extraction system
  • 12 volt fluorescent tube with 230 volt power supply and external switch



Items included

  • High quality blasting gun with ceramic nozzle
  • 4 ceramic nozzles (4/5/6/7 mm)
  • 5 replacement foils for viewing windows



Technical details

  • Air requirement average, approx.: 200 – 350 l/min
  • Working pressure: 2.8 – 8.0 bar
  • Abrasive grain size recommended: 0.2 – 0.3 mm
  • Max. abrasive grain size: 0.125 – 0.45 mm
  • Max. load of grid: 80 kg
  • Max. weight of blast media: 50 kg
  • VPE: 1

Dimensions and weights

  • Cabin volume: 220 l
  • Cabin interior length: 840 mm
  • Cabin interior width: 550 mm
  • Cabin interior height: 360 mm
  • Diameter of hand hole: 175 mm
  • Length approx.: 950 mm
  • Width/depth approx.: 660 mm
  • Height approx.: 1380 mm
  • Weight approx.: 48 kg

Side door (see drawing)

  • A: 480 mm
  • B: 558 mm
  • C: 282 mm
  • D: 592 mm



SSK 2 Unicraft Sandblasting Cabinet Manual
