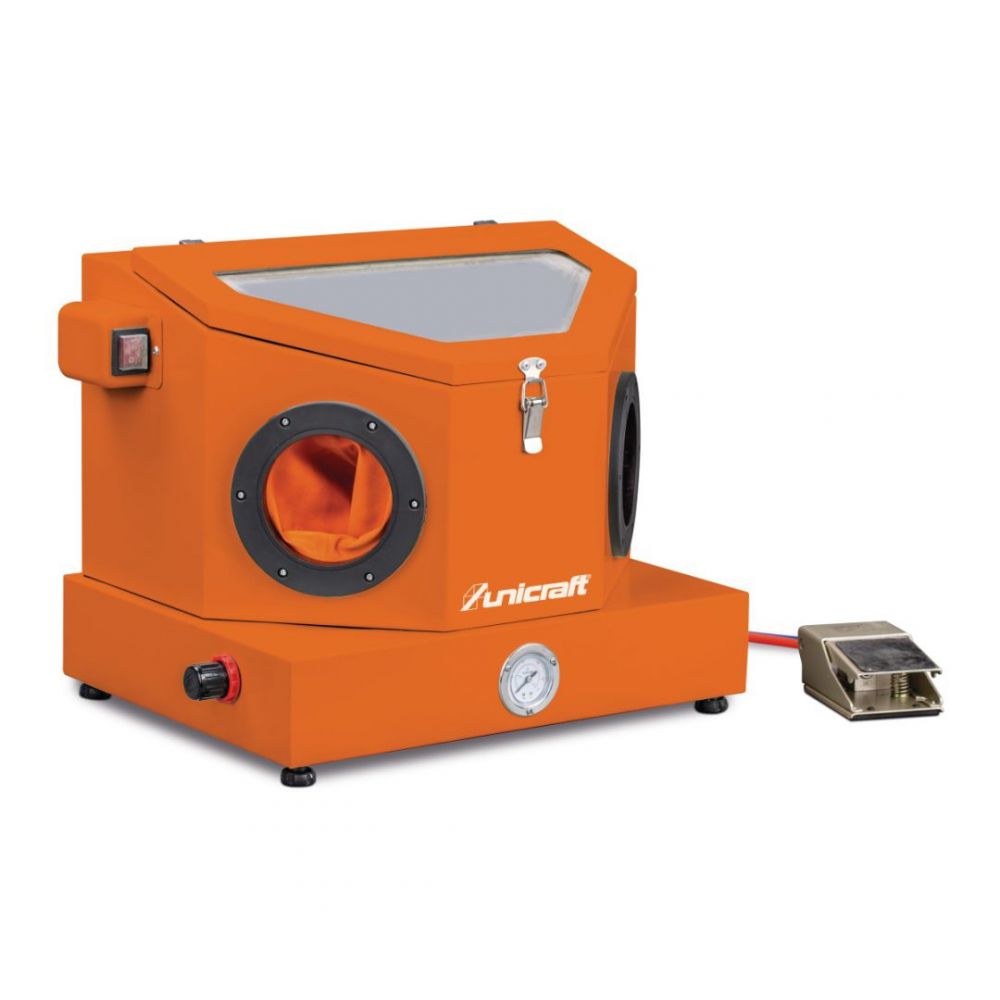

Sturmer Unicraft SSK 1.5 Sandblaster

Sturmer Unicraft

SSK 1.5 Sandblaster

ref: 6204010

• Suitable for various blasting materials, eg quartz, glass ball, plastic ball, etc.
• Ideal for paint removal or for cleaning and de-rusting metal parts of all kinds
• High-quality work gloves made of latex are firmly attached to the housing
• Lens with glued-on protective foil allows optimum visibility and safety during workpiece machining
• Dust-free work due to circumferential seals on cover and door frame

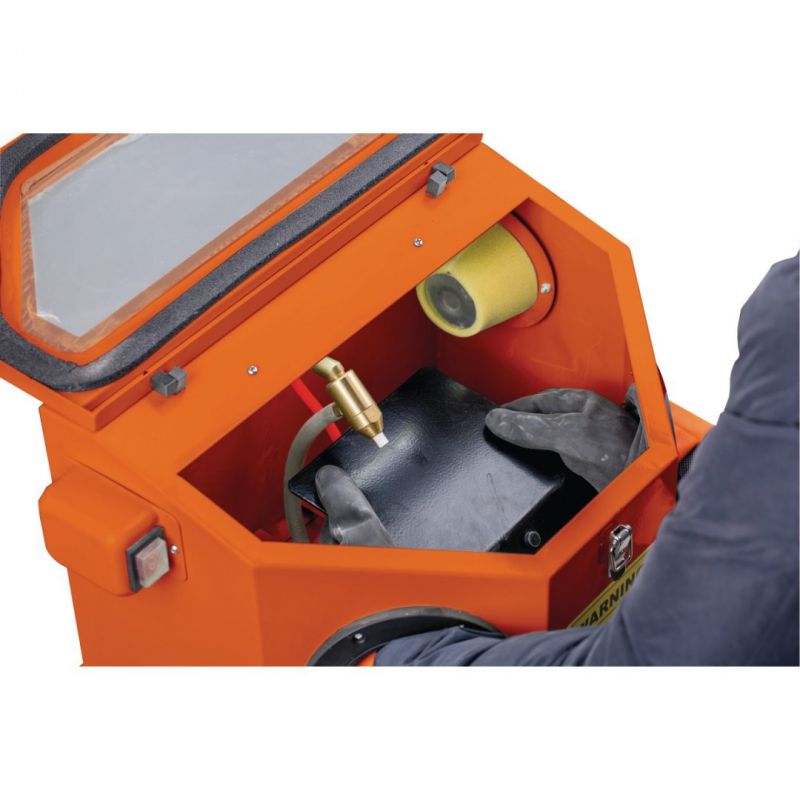

• Stable storage grid allows laying of workpieces in the cabin interior
• With opening for draining the blasting material
• Suction pipe for the blasting material attached to the bottom of the collecting container

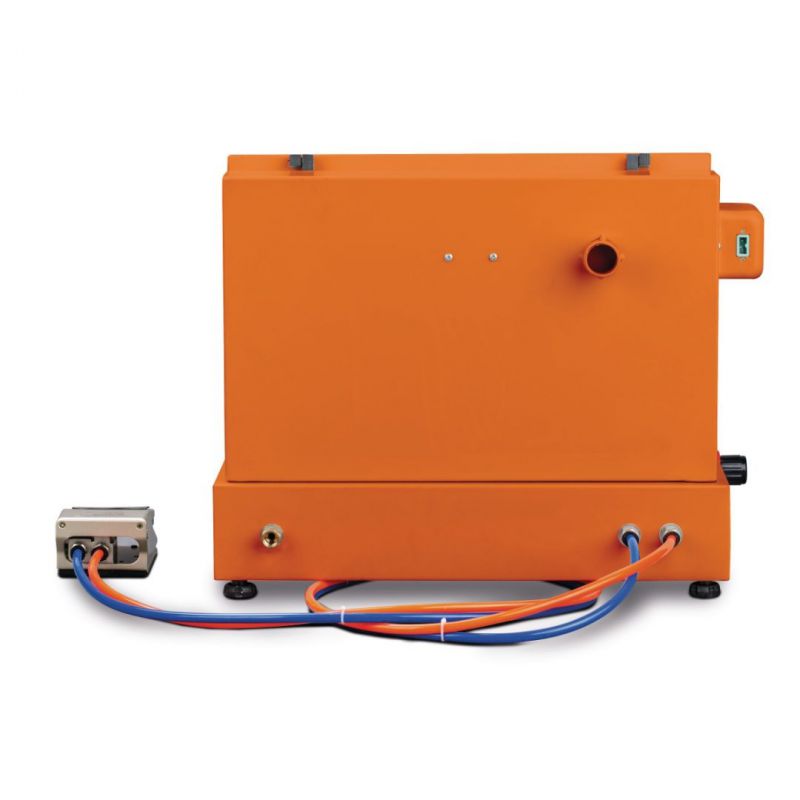

• With compressed air connection on the outside
• Glass bead blasting abrasives, corundum abrasives, silicon carbide, plastic abrasives and much more. used

Room amenities

• Regulation of working pressure via pressure regulator with manometer

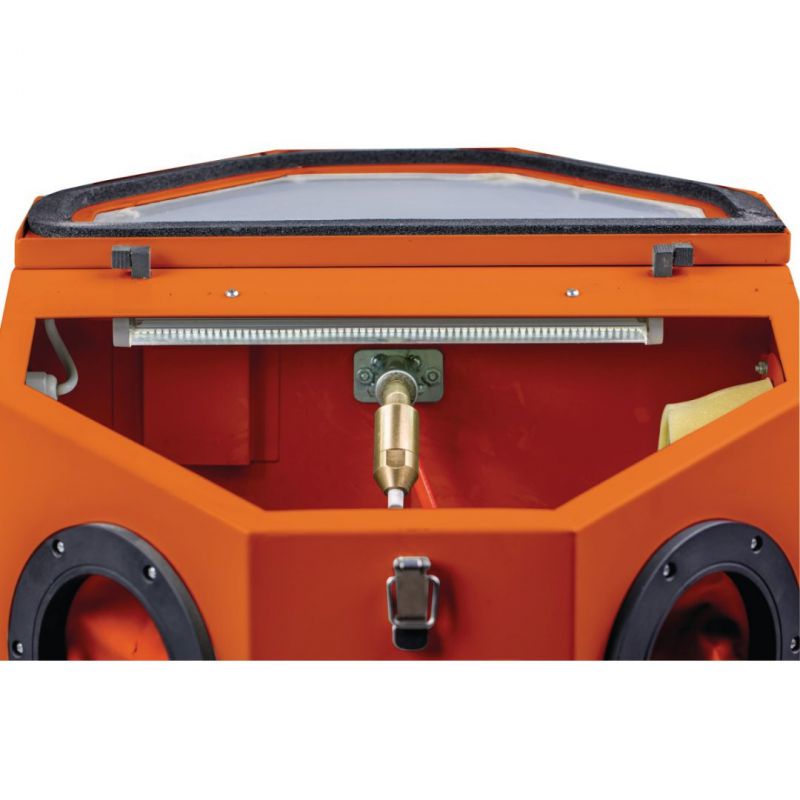

• Fixed jet nozzle with 120 ° tilt for comfortable working with two hands
• Airflow control via foot pedal

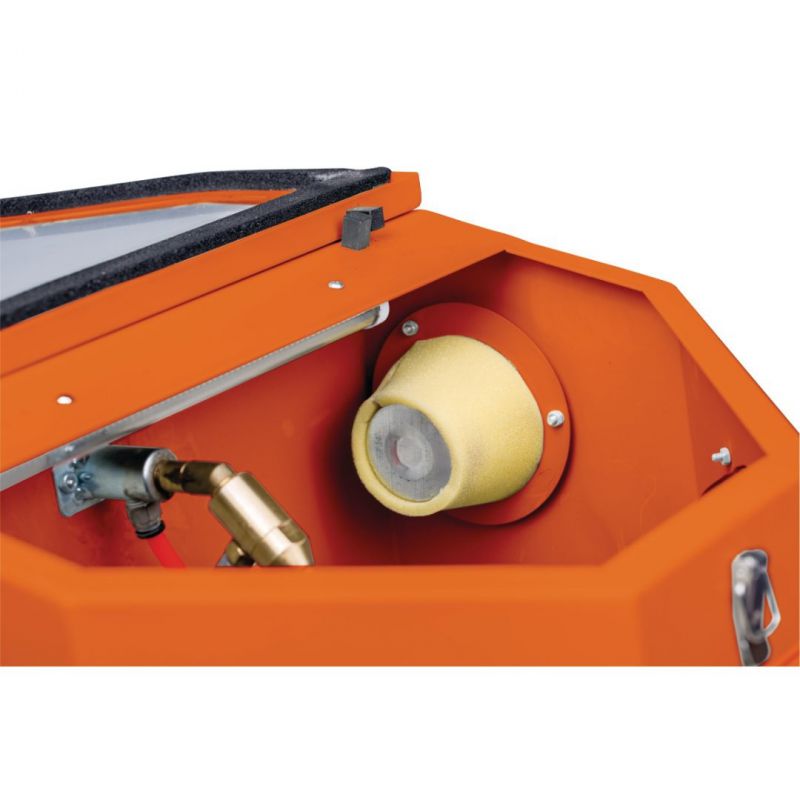

• Integrated cabin ventilation with replaceable air filter
• 12 volt fluorescent tube with 230 volt power supply and external switch

• Air requirement average, approx.: 196 l/min
• Working pressure: 5.5 – 7.9 bar
• Abrasive grain size recommended: 0.2 – 0.3 mm
• Max. abrasive grain size: 0.125 – 0.45 mm
• Nozzle diameter: 3.5 mm
• Max. load of grid: 10 kg
• Max. weight of blast media: 5.45 kg
• VPE: 1

Dimensions and weights

• Cabin volume: 25.4 l
• Cabin interior length: 410 mm
• Cabin interior width: 310 mm
• Cabin interior height: 200 mm
• Diameter of hand hole: 100 mm
• Length approx.: 475 mm
• Width/depth approx.: 370 mm
• Height approx.: 370 mm
• Weight approx.: 12,5 kg
