Sturmer Unicraft ESW 800 Electric Winch Hoist - 800kg Max Lift 230v
Product Code: STU/6199800
Brand: Stuermer
Low Stock - Contact Us For Availability
£479.99 Inc. VAT
£399.99 Exc. VAT
✗ COLLECTION
DELIVERY
Please call to check stock availability for larger quantities
Sturmer Unicraft

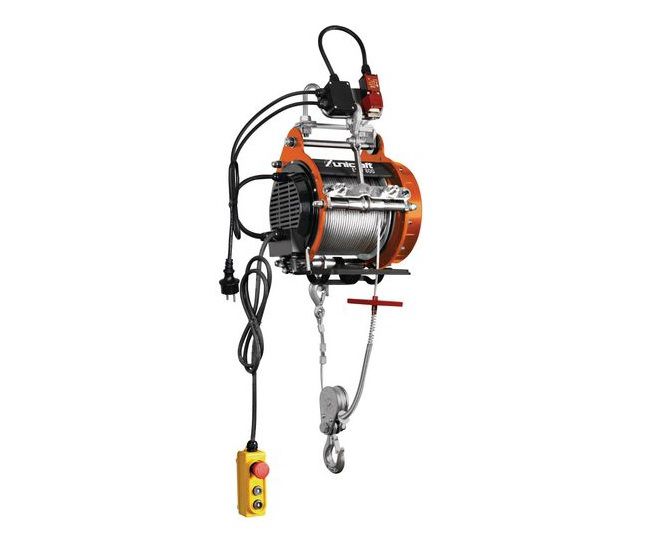

ESW 800 Electric Winch Hoist - 800kg Max Lift 230v
ref: 6199800
Key Features
- ESW 800 Electric winch + 30m lifting height + 800kg max lift with deflection pulley + 230v
- Rope guide roller supports the rolling up of the rope
- New storage increases the life of the engine
- With quick coupling for immediate use without complex assembly
- By a pulley doubled the lifting power
Technical details
- Control unit cable length: 5 m
- Lifting force without deflection pulley: 400 kg
- Lifting force with deflection pulley: 800 kg
- Stroke without deflection pulley: 30 m
- Stroke with deflection pulley: 15 m
- Max. lifting speed without deflection pulley: 8 m/min
- Max. lifting speed with deflection pulley: 4 m/min
- VPE: 1
Dimensions and weights
- Cable diameter: 5 mm
- Length approx.: 310 mm
- Width/depth approx.: 330 mm
- Height approx.: 440 mm
- Weight approx.: 32 kg
Electrical Data
- Main motor: 1.3 kW
- Supply voltage: 230 V
- Mains frequency: 50 Hz
