Laserliner SmartCross-Laser GX Set Cross-Line Laser - 036.731E

Laserliner SmartCross-Laser GX Set Cross-Line Laser

ref: 036.731E / 32636

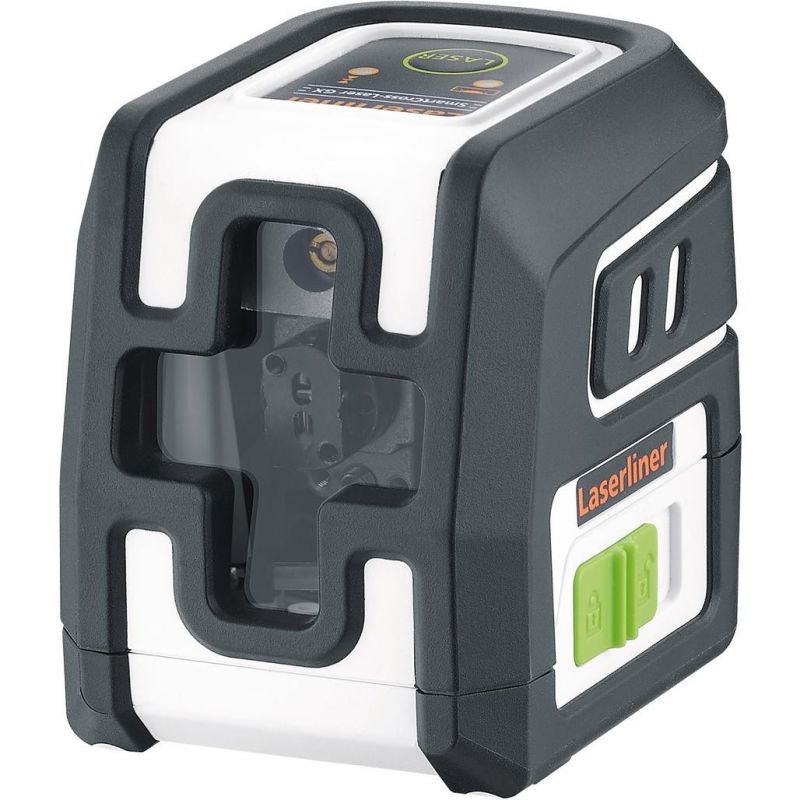

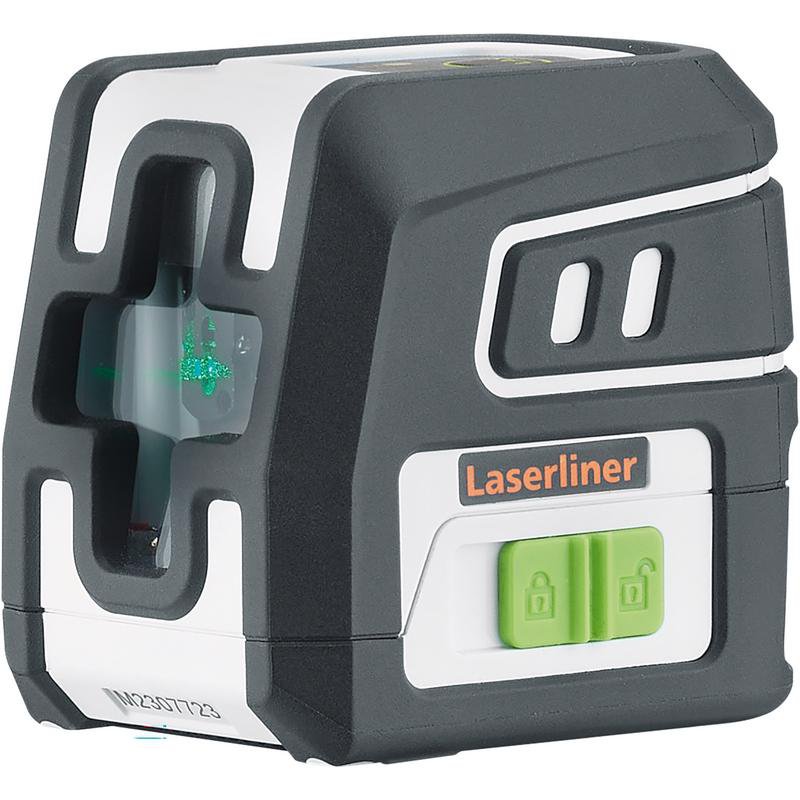

This cross-line laser projects a highly visible green laser cross for precise horizontal and vertical alignment of objects. It also offers a manual slope function for easy creation of gradients and a 1/4” thread for mounting on a tripod or the supplied clamping bracket. This enables optimal use of the laser in interior fitting work and allows rapid adjustment of position and height. It can be fixed in place on site without damaging surfaces. The laser can also be used for outdoor applications and alignment work at long distances with the integrated hand-held receiver mode. The housing of the device is made from a large proportion of recycled plastic and makes a valuable contribution to sustainability. Supplied with flexclamp and batteries.

• Sustainable design: large proportion of the housing is made from recycled plastic
• Supplied with flexclamp and batteries
• Accurate horizontal and vertical alignment of objects
• Good visibility through green laser technology
• Easy alignment of slopes with manual tilt function
• Versatile damage-free mounting options
• Height and position of the measuring device easily adjustable
• Time-saving automatic alignment
• Integrated hand-held receiver mode for outdoor applications
• Visual signals indicate when the device is outside its self-levelling range

• 1 x Laserliner SmartCross-Laser GX Set Crossline Laser

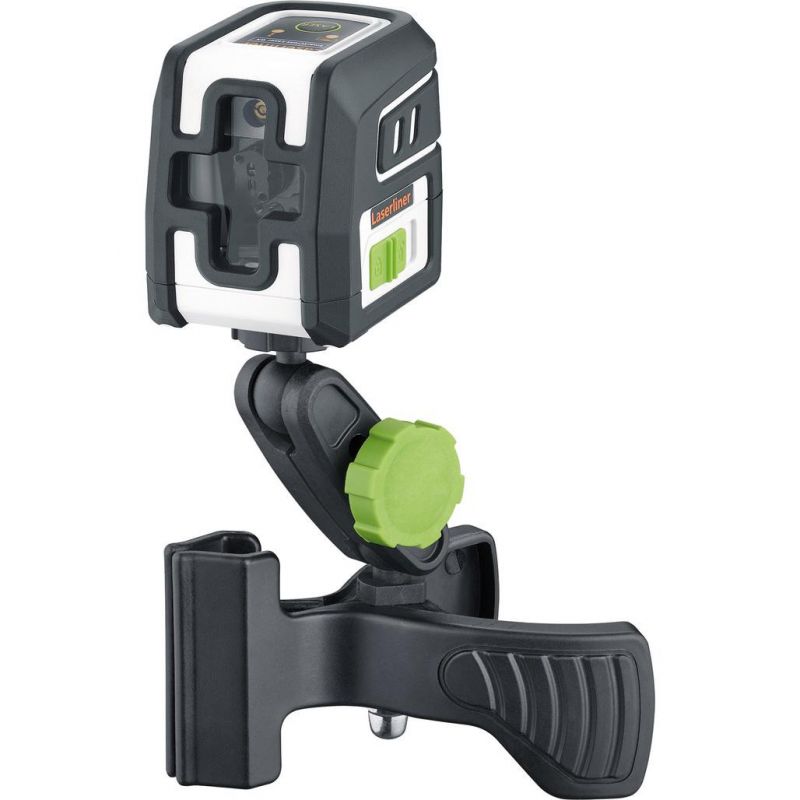

• 1 x FlexClamp
• 1 x Batteries

• Horizontal/vertical levelling: Yes
• Manual slope function: Yes
• Battery operation: Yes
• Hand receiver mode: Yes
• Accuracy: ±0.3 mm/m
• Levelling: Automatic
• Visibility (Typical)*: 40 m
• Laser Wavelength: 515 nm
• Power Supply: 2 x 1.5V LR6 (AA)
• Operating Time: approx. 6 hours
• Dimensions (W x H x D): 84 mm x 76 mm x 62 mm
• Weight: 276 g (inc. Batteries)
