Laserliner PocketPlane-Laser 3G Set Three-Dimensional Laser, 150cm - 036.703A

Laserliner PocketPlane-Laser 3G Set Three-Dimensional Laser, 150cm

ref: 036.703A / 32165

This three-dimensional, compact and highly visible green laser projects one horizontal and two vertical laser circles for precise alignment of objects. The laser crosses form a plumb function for working simultaneously on floors and ceilings. A manual slope mode is available for creating gradients. This laser is all you need for demanding projects thanks to the comprehensive range of accessories. Multi-section telescopic tripod legs and a 30 cm crank on this compact tripod provide an extensive adjustment range. The PocketWallHolder is a multi-functional, height-adjustable, magnetic bracket for attaching to walls, metal items and tripods with a 1/4” or 5/8” thread. Supplied with battery.

• Three-dimensional laser with a horizontal and two vertical 360° laser circles
• Supplied with battery
• Accurate horizontal and vertical alignment of objects
• Good visibility through green laser technology
• Easy alignment of slopes with manual tilt function
• Plumb function for synchronous working on floor and ceiling

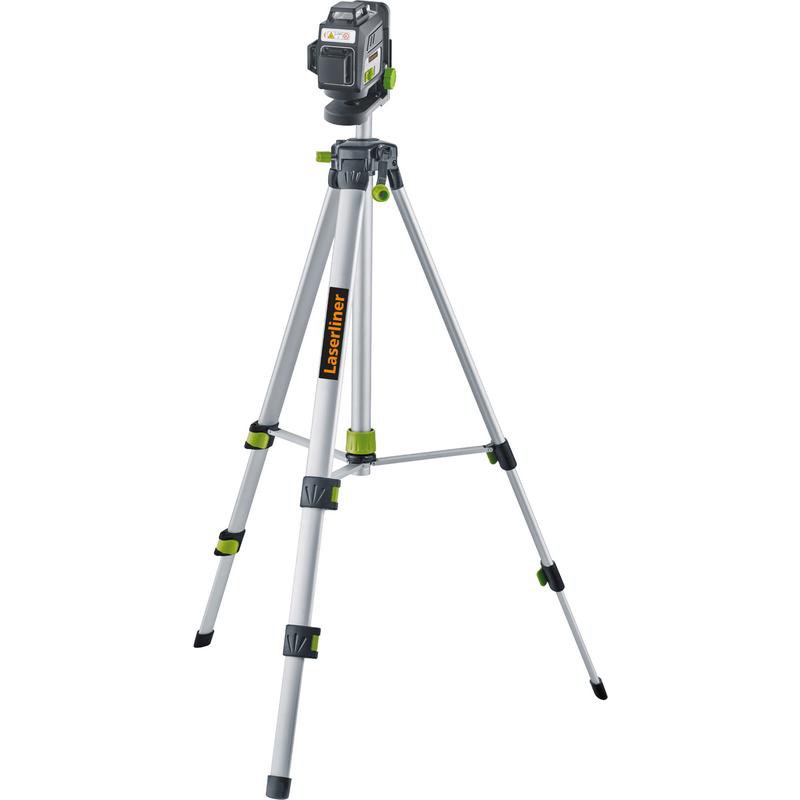

• Light and robust compact tripod 150cm
• Crank height adjustment and telescopic tripod legs

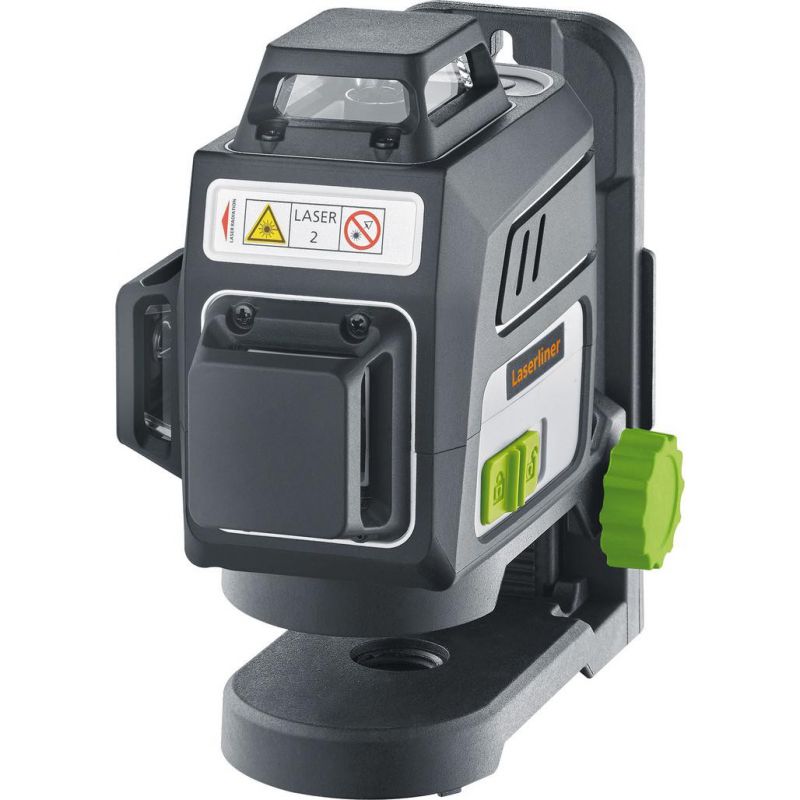

• Height-adjustable, magnetic, multi-function bracket with 1/4” and 5/8” thread for attaching to walls, metal items and tripods
• Magnetic target plate with stand, nail hole and dual scale – perfect for working close to ceilings

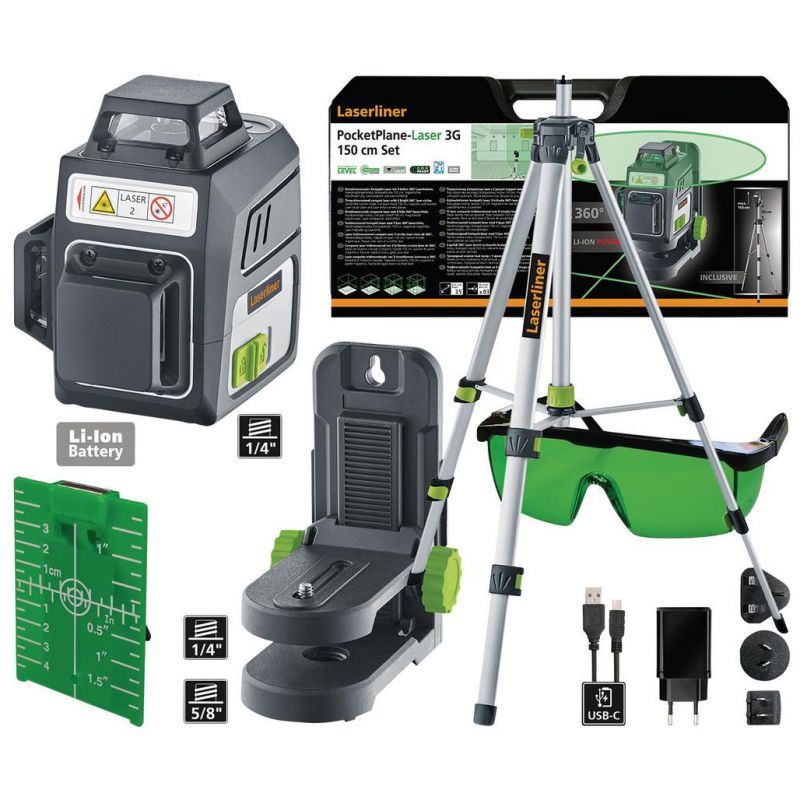

• 1 x Laserliner 036.703A PocketPlane-Laser 3G Set Three-Dimensional Laser, 150cm
• 1 x Compact tripod 150 cm
• 1 x PocketWallHolder
• 1 x Magnetic target plate green
• 1 x Laser enhancement glasses
• 1 x Li-ion battery pack
• 1 x Network/charging device incl. international adapter
• 1 x USB-C-cable
• 1 x Carrying case

• Horizontal/vertical levelling: Yes
• Manual slope function: Yes
• Battery and mains operation: Yes
• Hand receiver mode: Yes
• Self-Levelling Range: ± 3.5° (horizontal)
• Accuracy: ±0.3 mm/m
• Levelling: Automatic
• Visibility (Typical)*: 30 m
• Laser Wavelength: 515 nm
• Laser Class: 2 / < 1 mW (EN 60825-1:2014/A11:2021 / EN 50689:2021)
• Power Supply: Li-ion battery pack 3.7V / 3.6Ah / 13.32Wh, Power adapter 5V / DC / 2A
• Operating Time: with 3 laser levels: approx. 9 hours
• Operating Conditions: 0°C 50°C
• Storage Conditions: -10°C 70°C
• Dimensions (W x H x D): 104 mm x 97 mm x 76 mm
• Weight: 388g (incl. Akkupack)
