Laserliner Cubus 210 S Set Rotary Laser Kit, 1500mm - 052.205A

Laserliner Cubus 210 S Set Rotary Laser Kit, 1500mm

ref: 052.205A / 32170

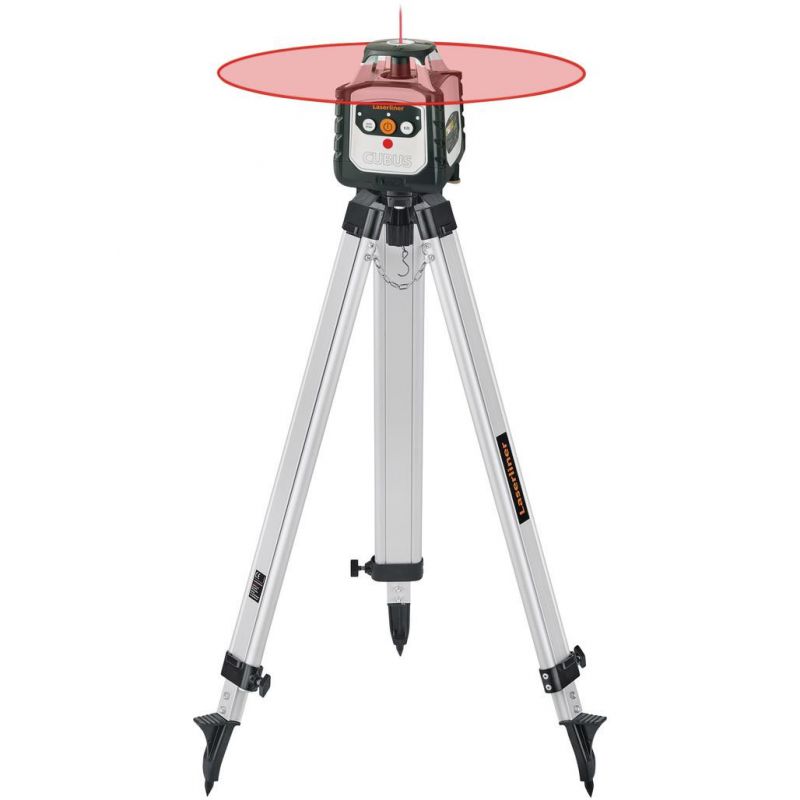

This long range, fully automatic rotary laser is ideal for excavation work. The robust device provides precise levelling of horizontals, verticals and slopes. A 90° reference beam provides plumb-lining and aligning for partitions. Available modes include spot, scan, rotary and hand-held receiver. The combination of light-weight tripod, laser receiver and measuring staff is ideal for determining and working with reference dimensions. All functions can be easily controlled with the remote control up to a maximum distance of 30 metres. In the event of external influences, the device shuts down automatically to prevent measurement errors. The battery pack can be used and charged at the same time which means users can work without interruption.

• Exact horizontal and vertical alignment of objects
• Long range, ideal for excavation work
• The 90° reference beam is provided to plumb and align partition walls
• Reliable measurement through automatic power off with ADS tilt
• Time-saving fully automatic alignment by means of automatic sensor
• Long operating life due to powerful HighCapacityPack with lithium-ion technology
• Extremely simple operation for practical use
• Manual alignment of slopes
• Laser modes: spot, scan, rotary and hand receiver mode

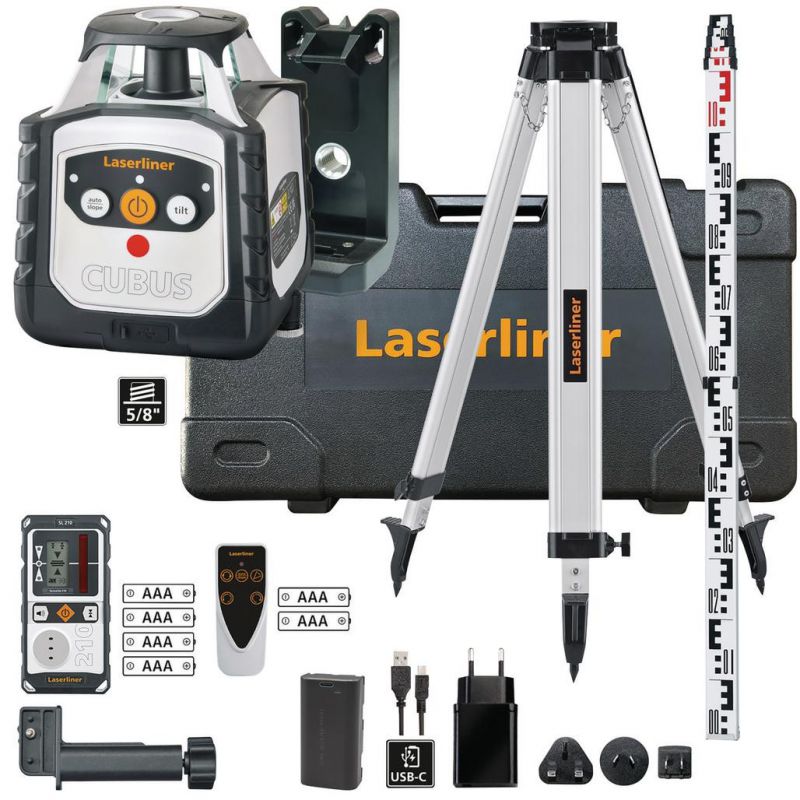

• 1 x Laserliner 052.205A Cubus 210 S Set Rotary Laser Kit, 1500mm
• 1 x SensoLite 210

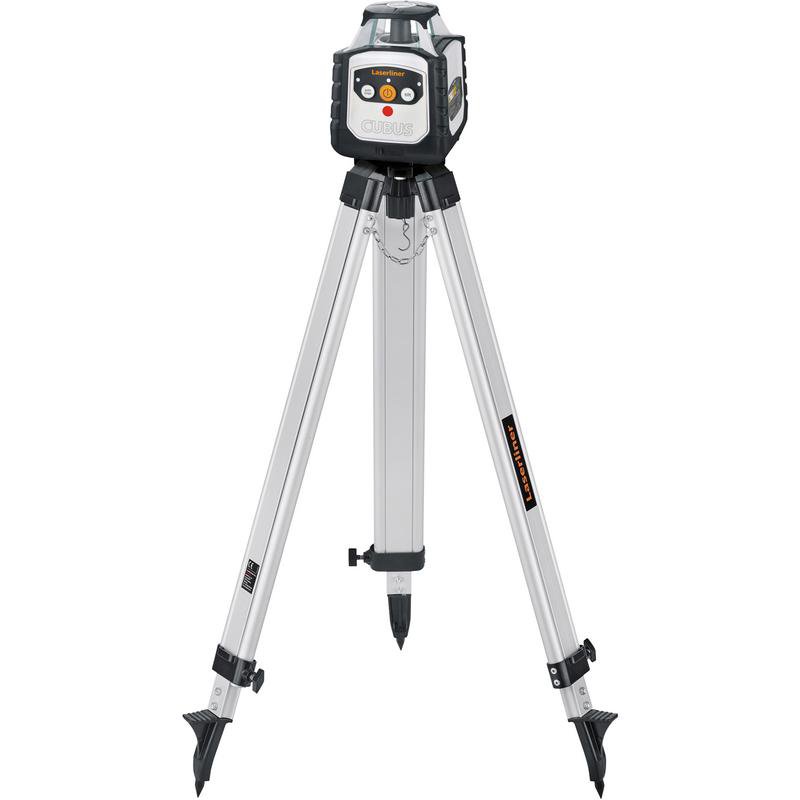

• 1 x Light-weight tripod 150 cm
• 1 x Tripod/wall bracket
• 1 x Universal mount
• 1 x Telescopic levelling staff LT 4 m
• 1 x Remote control
• 1 x HighCapacityPack (Li-Ion)
• 1 x Batteries
• 1 x Network/charging device incl. international adapter
• 1 x Carrying strap
• 1 x Carrying case

• Horizontal/vertical levelling: Yes
• Hand receiver mode: Yes
• Scan mode: Yes
• Spot mode: Yes
• Manual slope function: Yes
• Precision sensor levelling; Yes
• Battery and mains operation: Yes
• Anti-Drift-System (ADS): Yes
• Tilt warning function: Yes
• Self-Levelling Range: ± 4°
• Accuracy: ±0.15 mm/m
• Levelling: Automatic horizontal / vertical levelling with electronic levels and motors
• Laser Wavelength; 635 nm
• Laser Class: 2 / < 1 mW (EN 60825-1:2014/A11:2021 / EN 50689:2021)
• Protection Class: IP 66
• Power Supply: Li-ion battery pack 7.4V / 2.6Ah / 19.24Wh
• Operating Time: approx. 20 hours
• Battery Recharging Time: approx. 4 hours
• Operating Conditions: -10°C 50°C
• Storage Conditions: -10°C 70°C
• Dimensions (W x H x D): 130 mm x 160 mm x 145 mm
• Weight: 1300g
