Laguna Fusion 3 Cast Iron Table Saw 3Hp 230v - Upgrade Machine

Laguna Fusion 3 Cast Iron Table Saw - Laguna Fusion 3 3Hp 230V

Please note: The video shown here features the product in North American specification. European specification has several differences due to legal requirements. The product we sell does have some visual differences and the specification may differ slightly. For example: Please note the mitre fence pictured is the USA specification and different to the UK version

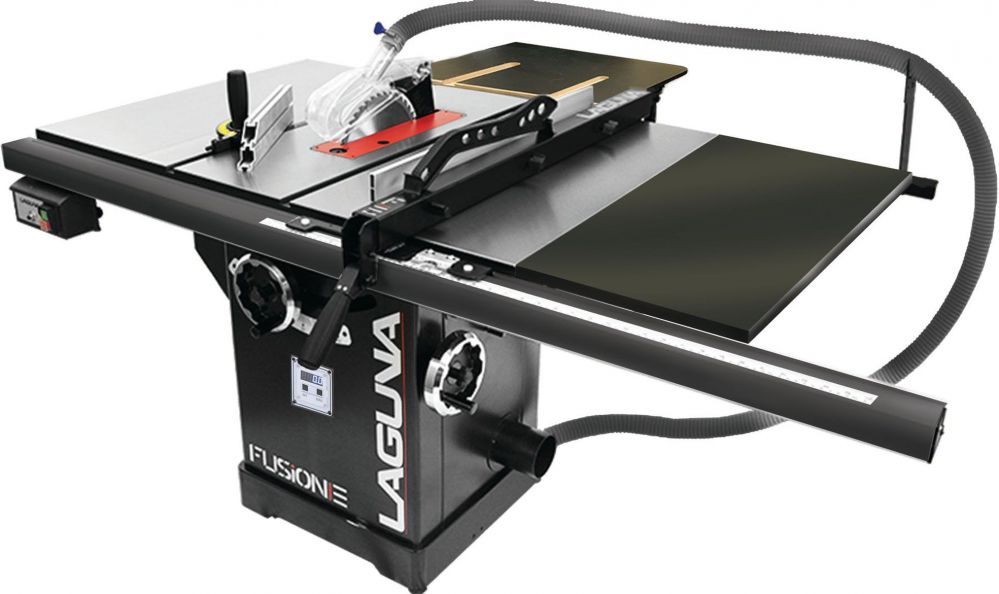

The Laguna F3 Fusion Tablesaw is the next step up from the F2 Model, making it an even more robust machine with greater quality and power. The F3 is everything you could want in an industrial tablesaw and more! Featured Upgrades

• Large 3HP Motor on 220V
• Large Industrial Cabinet
• Solid Cast Iron Trunnion
• Electromagnetic Contactor
• Professional Arbor Controls

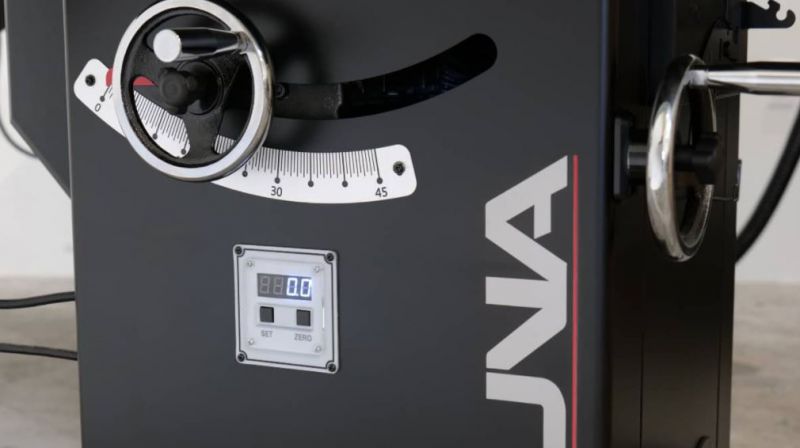

• Blue LED digital readout for tilt mechanism

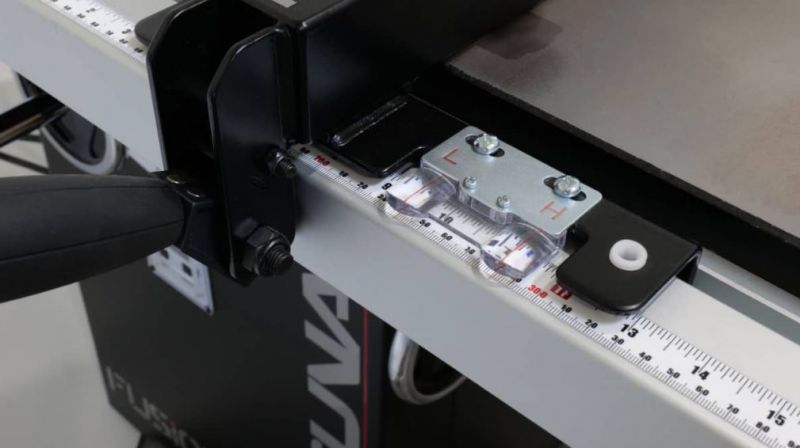

• Dual hairline readout to rip cut fence position

The first thing that will catch your eye is the large precision ground mirror finished tabletop which allows excellent work piece support. For Europe we have added a 500mm rear take off table for even more support, if not in use this can be easily taken off and stored flat. The classic 'T Style' rip fence which is exceptionally smooth moving and rock solid locking is a pleasure to use with an easy cam lock handle and will guarantee accurate cuts up to the 36" standard capacity.

Laguna have also completely redesigned the arbor controls so that the rise/fall/tilt handles give a lovely buttery smooth blade movement courtesy of a 2:1 ratio gear box. Dust extraction is a crucial part of any machine for operator safety and machine longevity and for Europe we have specified a crown guard hose in conjunction with Laguna's newly designed interior shrouded dust collection.

The heart of this saw is the powerful 3 Hp 2200W braked motor which is mounted onto the powder coated cabinet base via solid cast-iron trunnions. This mounting method ensures the table top is left unstressed by the motor weight and guarantees a perfectly flat working surface. The substantial professional 'zero clearance' throat plate is suitable for all blade angles and is supplied as standard, it has fine adjustment grub screws to precisely line up to the table surface and is also easy to remove.

For further convenience a wheel kit is integrated within the base and there are storage points for all the accessories. Supplied with mitre fence fitting in the T slots. There is a 250mm 40T blade supplied as standard. Finally, the quick release riving knife makes blade changing easier and safer.

• Phase 1PH
• Voltage 230V
• Motor Type TEFC Capacitor Start AC Induction
• Horsepower 2200W (3Hp)
• Motor Speed 3450 RPM
• Cycle 50 Hz
• Full Load Amperage 14.5 Amp.
• Start Capacitor 400 µF-U
• Run Capacitor 50 µF-U
• Switch Type Magnetic with Overload Protection
• Power Transfer Single V-Ribbed Band 142J FJ
• Power Cord 2M H07RNF
• Power Plug Included CEE 7/7 Plug
• Breaker Recommendation 30 Amp
• General
• Foot Print (LxW) 503 mm x 520 mm
• Overall Dimensions (LxWxH) 1663 mm x 1652 mm x 1080.9 mm
• Shipping Dimensions (LxWxH) 870 mm x 1190 mm x 1085 mm
• Net Weight (No Accessories) 157 Kgs
• Shipping Weight 202 Kgs
• Dust Collection: Outlet Dia. 101.6 mm (4″)
• Dust Collection: M3 Min. Req. 934 M3 / H
• Sound Emissions N/A
• Tablesaw Specs
• Blade Diameter / Bore 250 mm / 30 mm
• Arbor Diameter 5/8″
• Arbor Speed 3800 RPM
• Rip Capacity, with Fence 914.4 mm Right / 431.8 mm Left (1320.8 mm Optional)
• Maximum Depth of Cut @ 90° 79 mm
• Maximum Depth of Cut @ 45° 56 mm
• Blade Tilt 45° Left, 3° Arbor Adjustment
• Mitre Slot 19 mm to 23 mm T Slot (3/4″ to 1″ T)
• Fence Type Sliding Cam Action Fully Adjustable
• Fence Face Dimensions (LxWxth.) 670 mm x 80 mm x 17 mm
• Throat Plate Type Professional Square Zero Clearance
• Throat Plate Dimensions (LxWxth.) 372 mm x 104.5 mm x 13 mm
• Floor to Table Height 887 mm

PLEASE NOTE THIS VIDEO IS FROM AMERICA AND YOU SHOULD THEREFORE ALLOW FOR COSMETIC DIFFERENCES IN THE SOON TO BE UPLOADED UK VERSION OF THIS MACHINE.
