Laguna 24/36 REVO Woodturning Lathe - Laguna Variable Speed Wood Lathe

X
Product Code: LG/24/36REVO/111778
Brand: Laguna
Stock Available
Delivery typically 3-4 days
Was £3,921.98 Inc. VAT
Now £3,529.79!
£2,941.49 Exc. VAT
✗ COLLECTION
✓ DELIVERY
Qty
Laguna

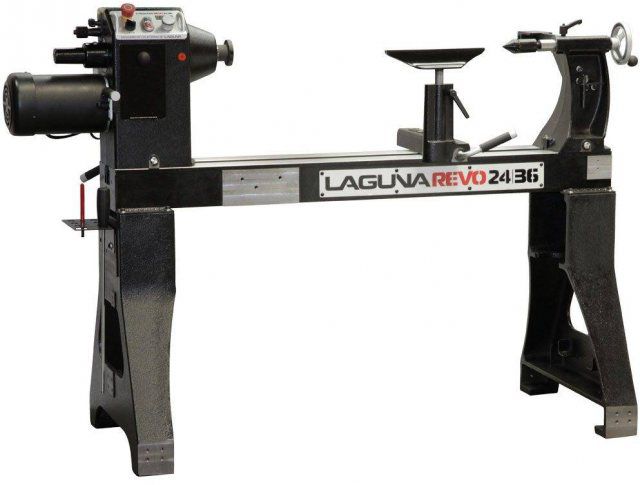

Laguna 2436 REVO Woodturning Lathe - Laguna Variable Speed Wood Lathe



Key Features

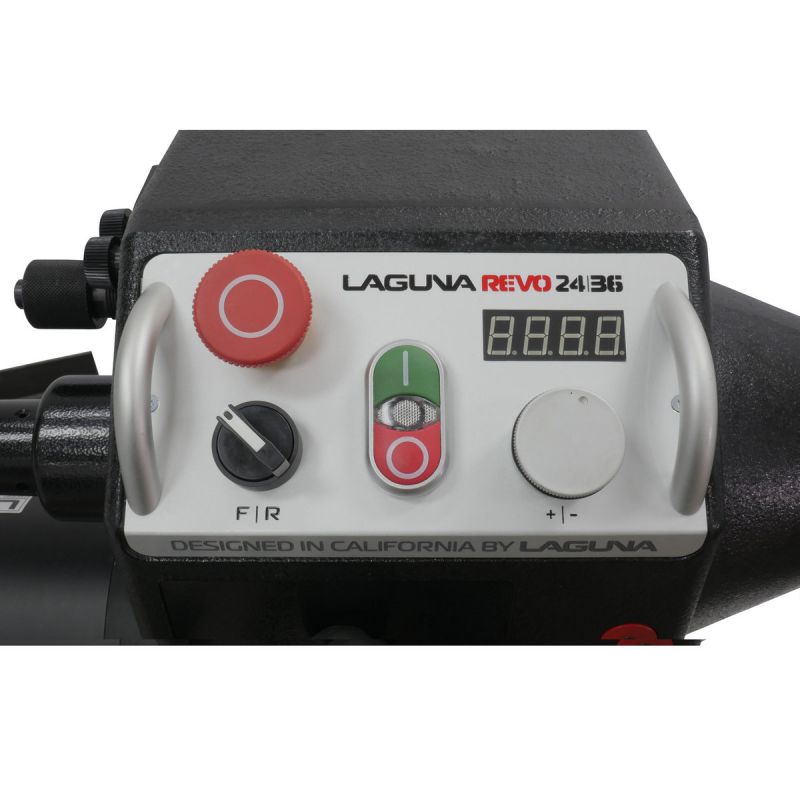

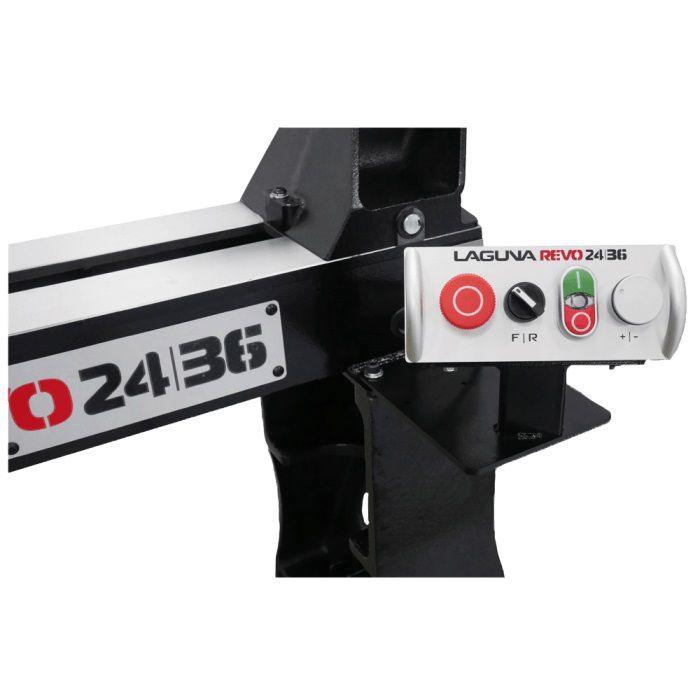

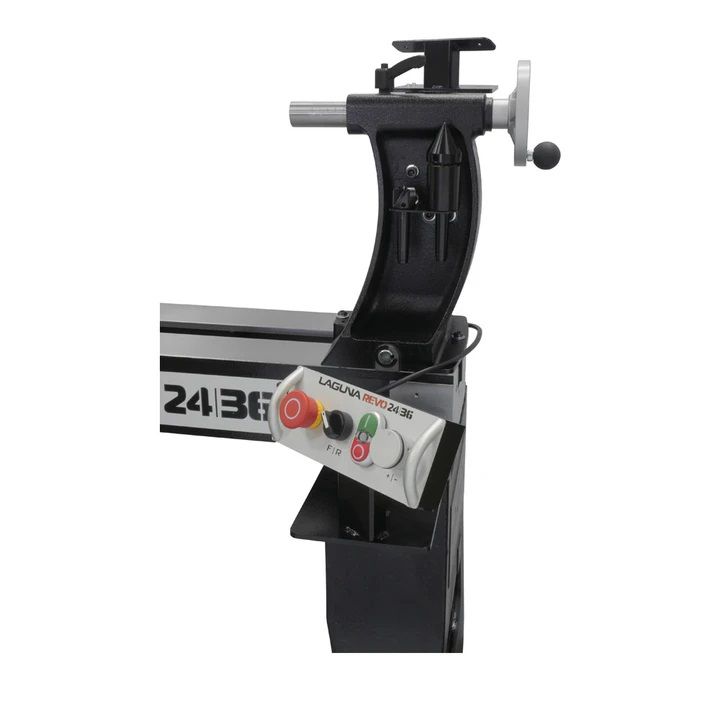

  • ​The first feature that will catch your attention is undoubtedly the ergonomic angled control panel made from anodized aluminum.
  • The blue hue of the DRO along with the beautiful knurled control knob fitted with a rubber grip signals this is no ordinary lathe.

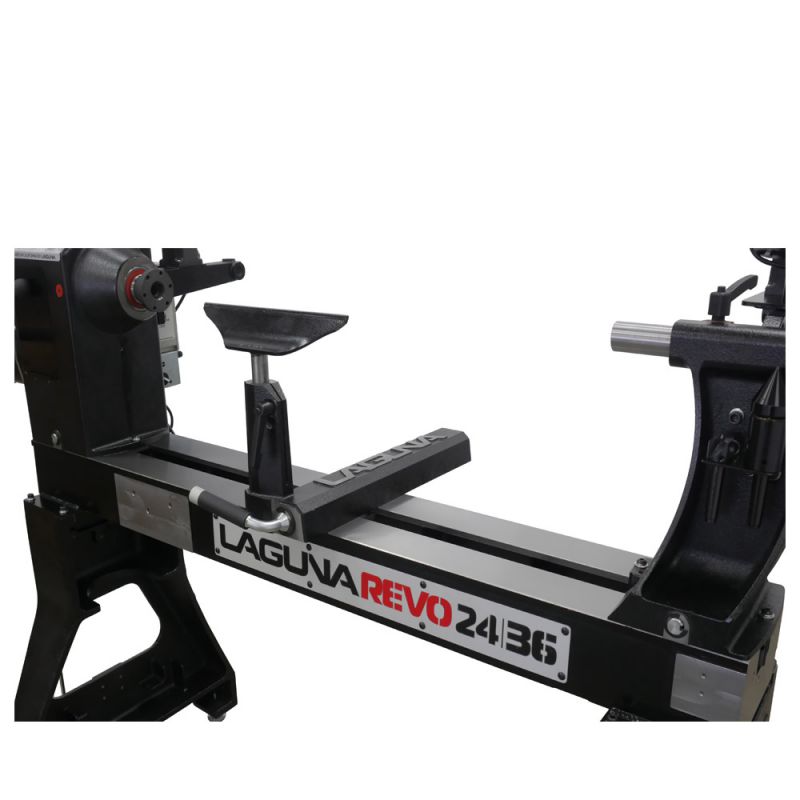

  • The bed is made from steel which allows the cast iron headstock to travel incredibly smoothly.
  • Steel is the preferred material due to its well known longevity & strength.
  • Electronic variable speed is obtained via a VFD that converts 1 phase input to 3 phase output, so even at low settings you will get an incredible amount of torque.
  • The DRO gives you an accurate RPM readout at all times any fine adjustments are made electronically.
  • Changing from high to low settings is made easy by using the quick release handle.
  • The headstock & tailstock lock handles are situated on the back to eliminate any interruptions to your work flow.
  • Ergonomically designed handles use a cam lock resulting in a firm feel with no deflection.



Specification

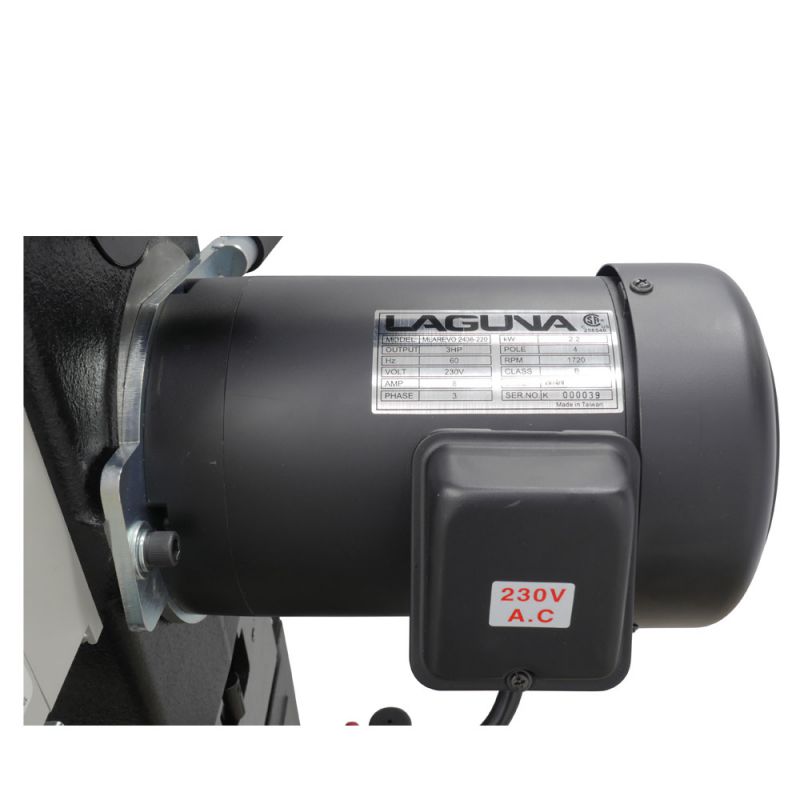

  • Motor: Induction, 1725RPM, 3HP, 220V
  • Voltage: 220V, 50hz, single phase input, 3 phase output
  • Recommended breaker size: 15 amp
  • Swing over bed: 609mm (24″)
  • Swing over banjo: 501mm (19 3/4″)
  • Outboard swing max: 965mm (38″)
  • Distance between center: 914mm (36″)
  • Floor to spindle center: 1130mm (44 1/2″)
  • Floor to bed height: 826mm (32 1/2″) with pads
  • Floor space: 1524mm, 660mm, 1327mm (60″, 26″, 52 1/4″)

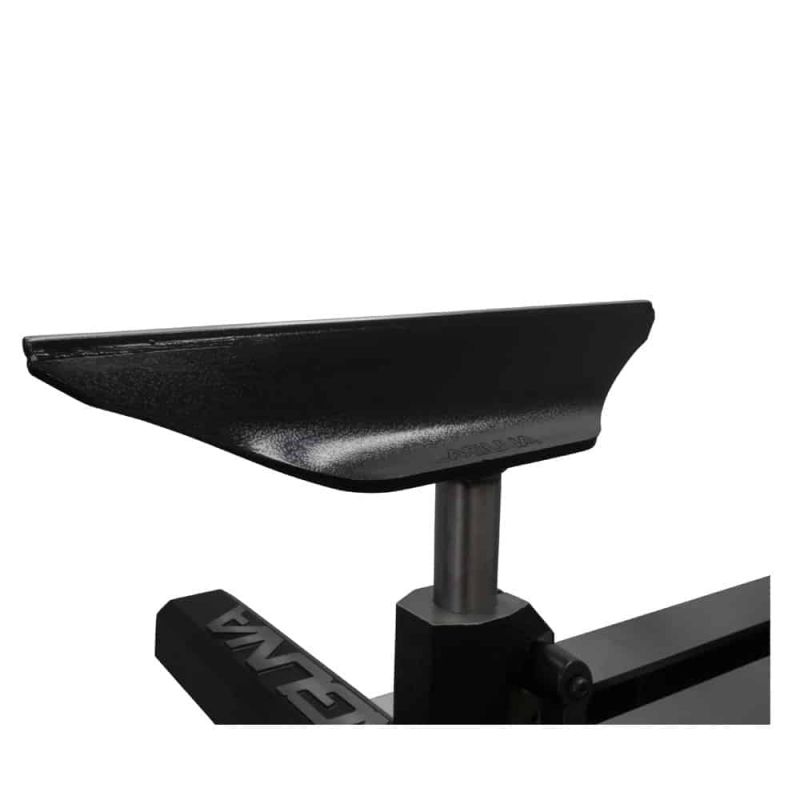

  • Tool rest: 305mm (12″)
  • Speed range high: 135-3500 RPM
  • Speed range low: 50 – 1300 RPM
  • VFD: Delta S1 variable frequency drive

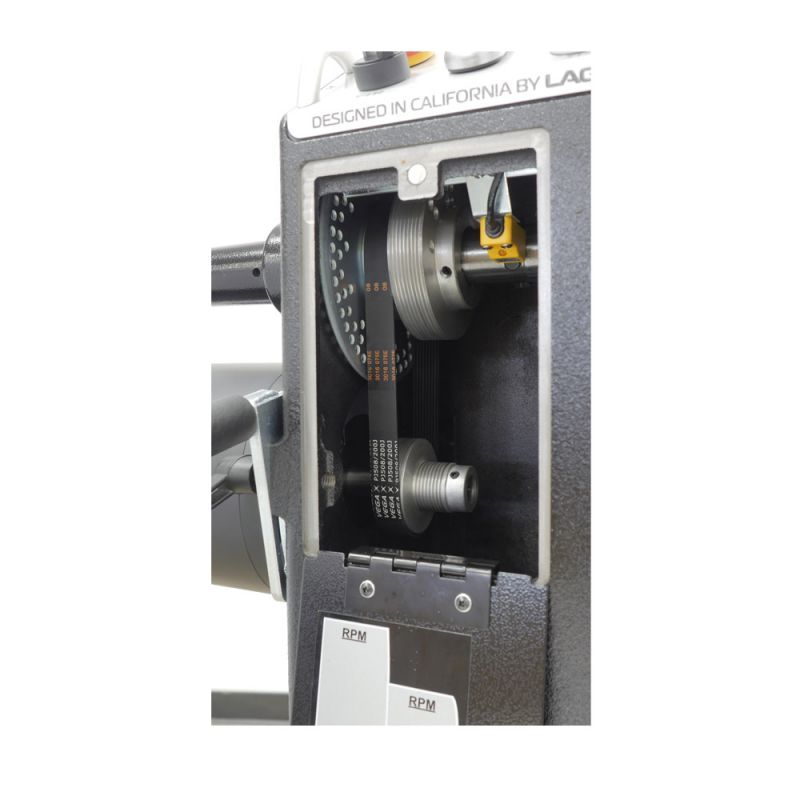

  • Drive belt: Poly-groove drive belt with easy access
  • Spindle size: M33 x 3.5mm
  • Spindle lock: Spring loaded

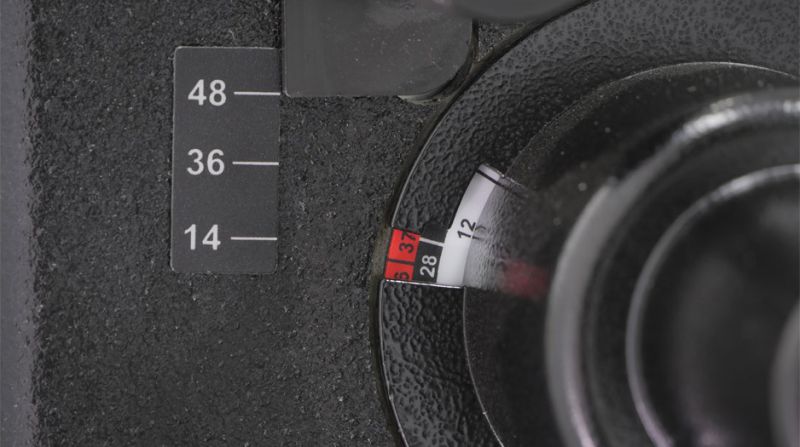

  • Spindle index: 14/.36/48 positions with lock
  • Headstock & tailstock bore: 9.5mm dia (3/8″ dia)

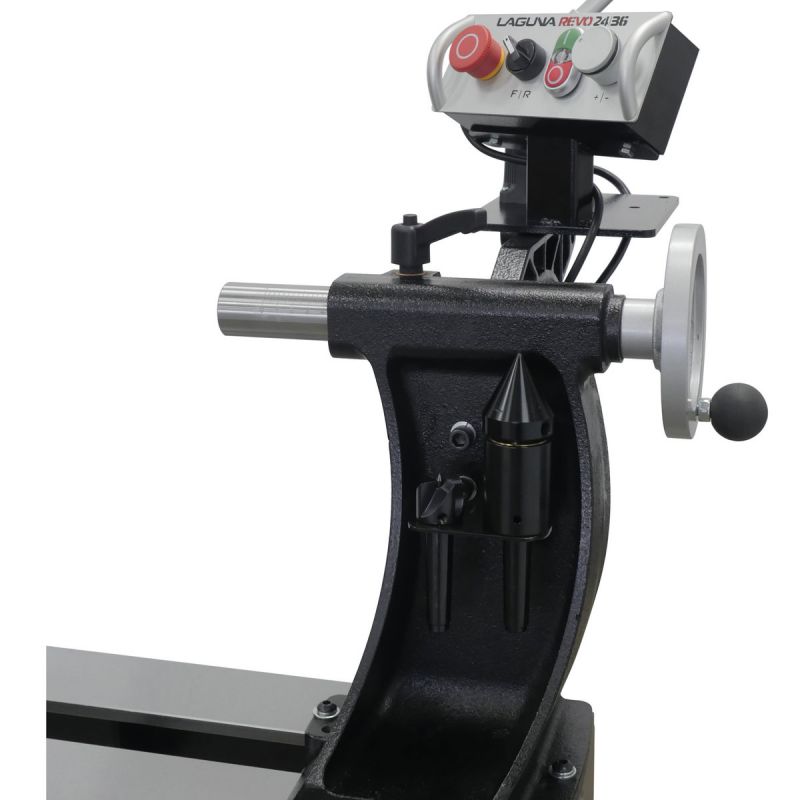

  • Tailstock travel: 114mm (4 1/2″)

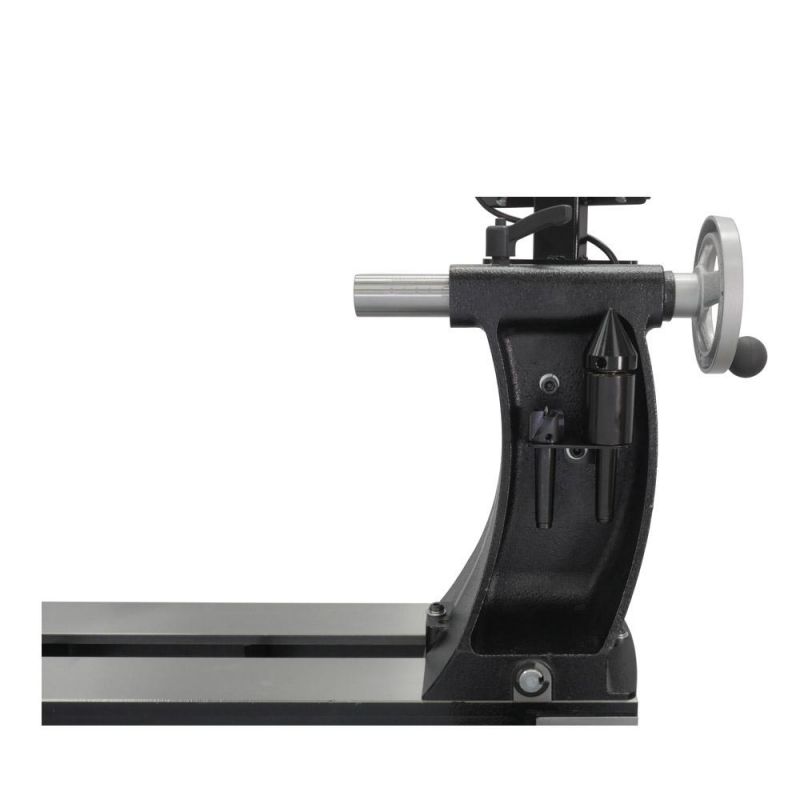

  • Tailstock removal: Self-ejecting
  • Tailstock tapers: MT 2
  • Face plate: 76mm diameter (3″)
  • Bed material: Steel
  • Weight: 242kg/255kg
