Holzmann KNF2PNEU Double Blade Pneumatic Joining / Coupling Machine 230v
Product Code: HOL/KNF2PNEU
Brand: Holzmann
£1,199.99 Inc. VAT
£999.99 Exc. VAT

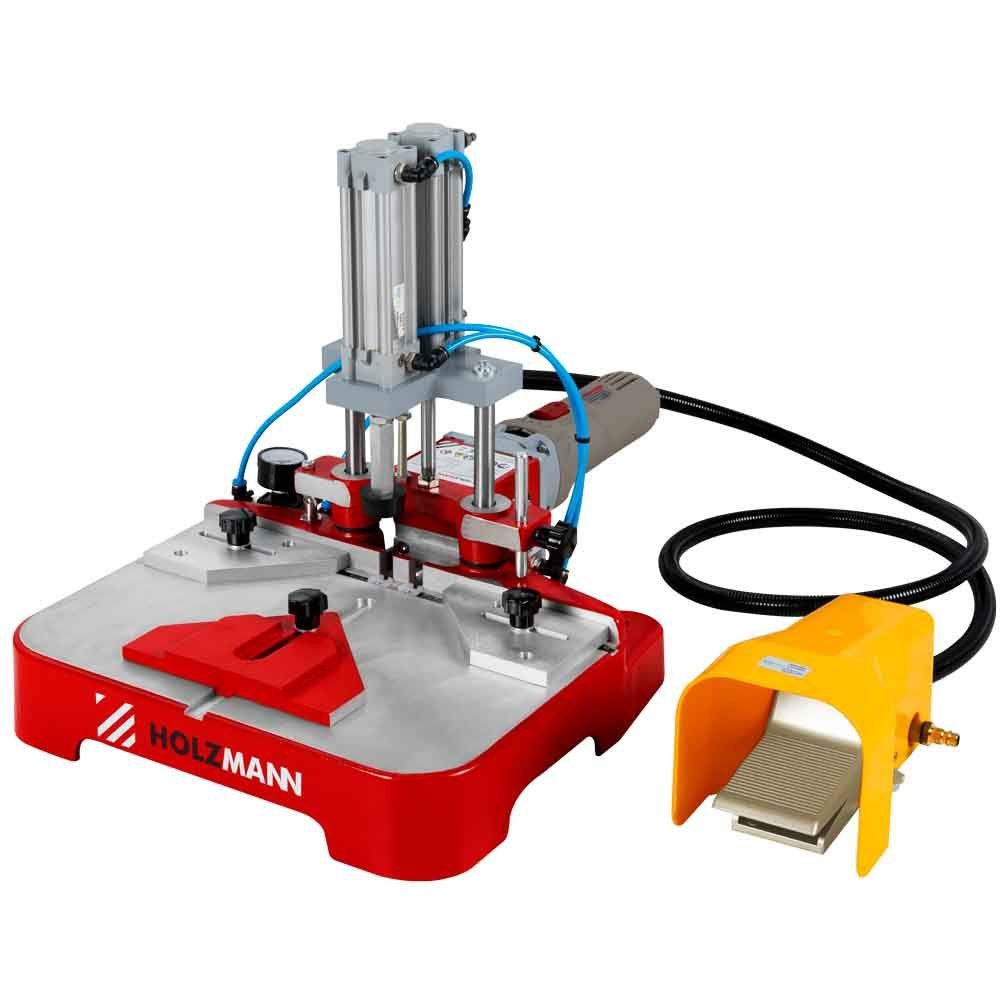

Holzmann KNF2PNEU Double Blade Pneumatic Joining / Coupling Machine 230v

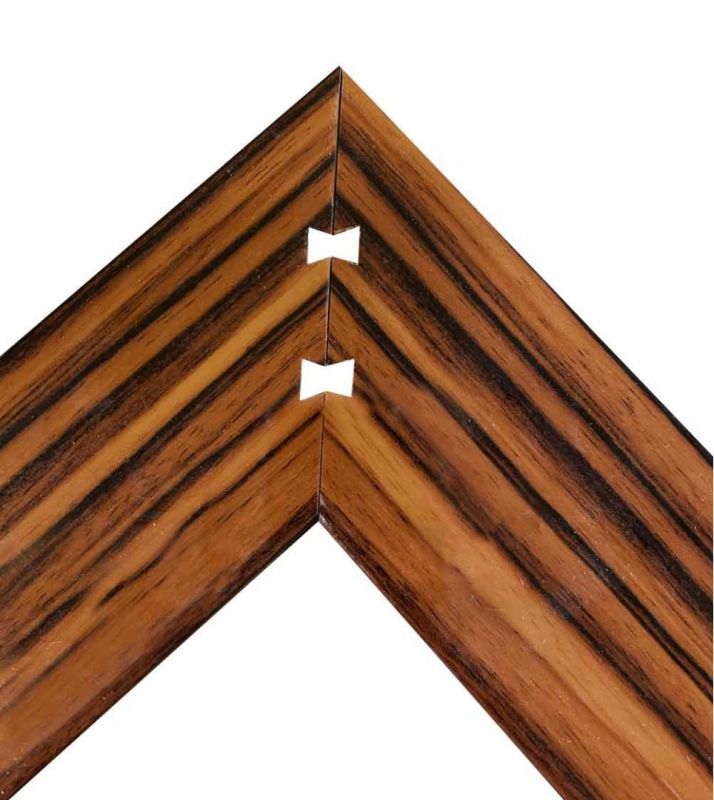

The HOLZMANN KNF2PNEU_230V pneumatic double blade wooden coupling machine with two milling spindle is ideal for producing two keyway joint per working stroke. Picture frames, window frames and many other frame joints can be produced quickly and easily. Milling, insert the matching dovetail joint element and the two machined parts are joined together (no glue required)
Key Features
- pneumatic workpiece clamping, activated by foot-pedal
- two milling spindle
- max. profile dimension 185 mm
- adjustable stops for workpiece positioning
- includes milling cutter mould W-2, collet Ø6 and Ø8 mm, milling cutter setting gauge
Technical details
motor data
- motor power s1 in W: 600
- voltage: 230 V / 50 Hz
- appliance class: II
measurements
- table size in mm: 380 x 220
- total dimensions in mm: 400 x 680 x 440
workpiece measurements
- max. workpiece thickness in mm: 100
technical specification
- max. milling performance in mm: 55
- milling spindle speed in min-1: 12000 – 27000
volume level and vibration
- sound pressure level in dB(A): 92
weight
