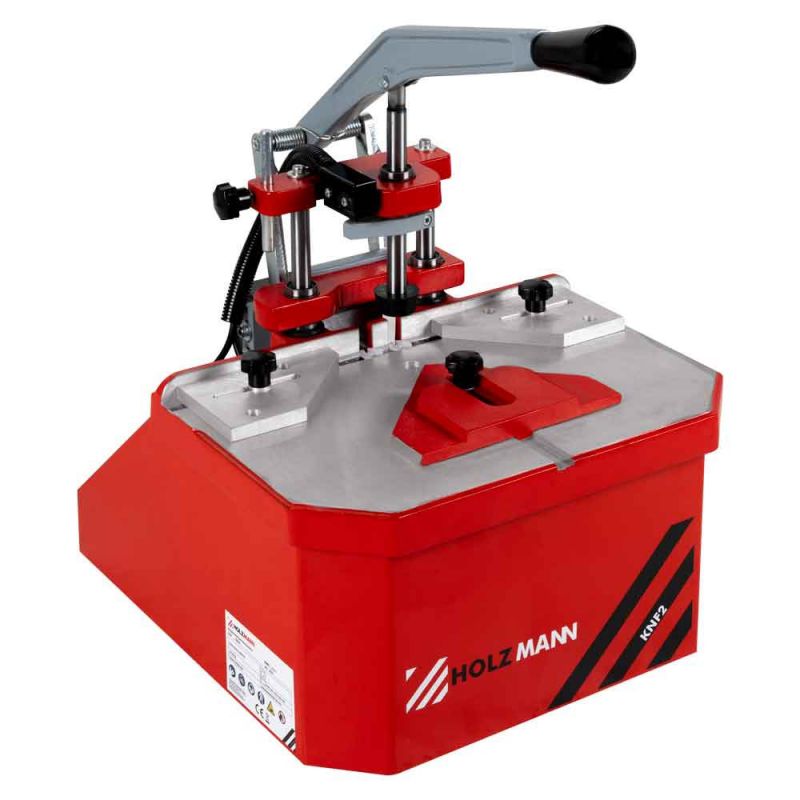

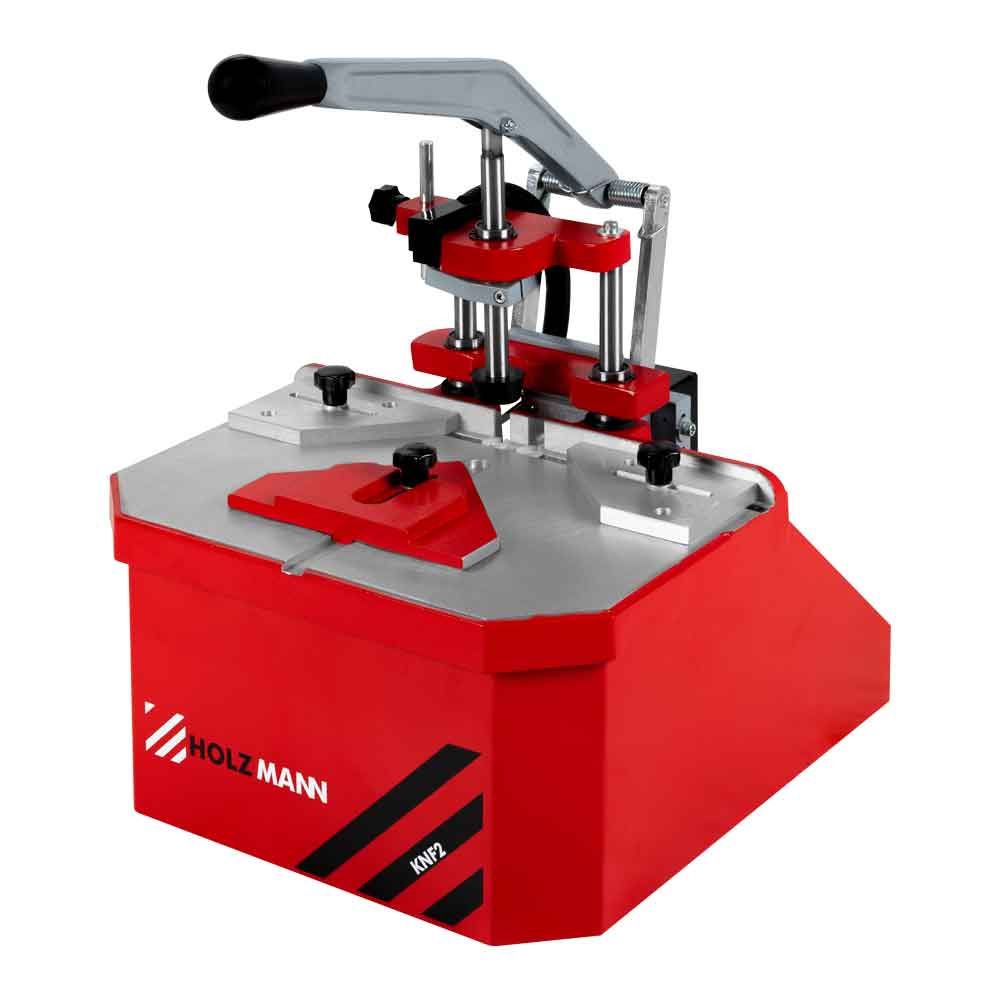

Holzmann KNF2 Double Blade Joining / Coupling Machine 230v
Holzmann KNF2 Double Blade Joining / Coupling Machine 230v

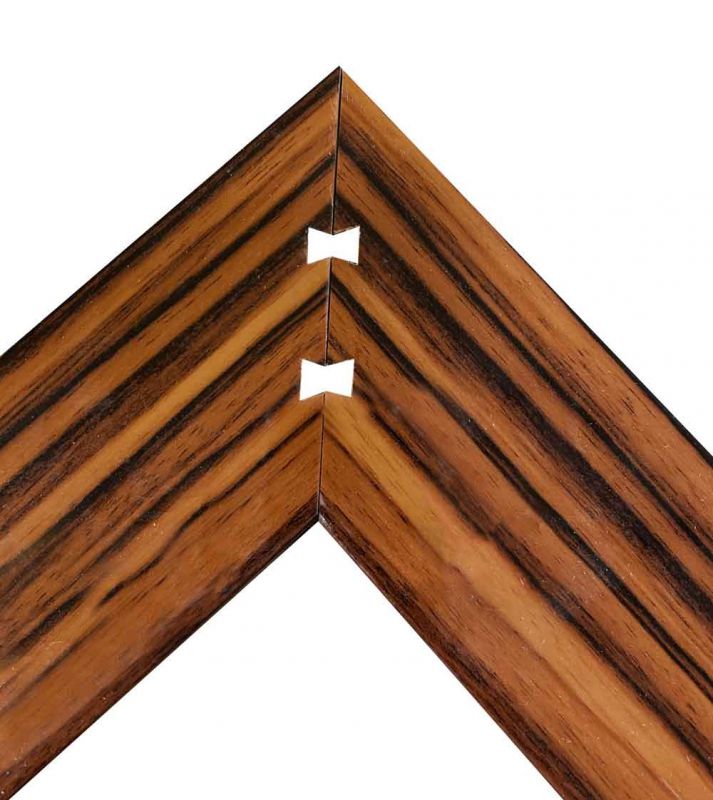

The HOLZMANN KNF2_230V double blade wooden coupling machine with two milling spindle is ideal for producing two keyway joint per working stroke. Picture frames, window frames and many other frame joints can be produced quickly and easily. Milling, insert the matching dovetail joint element and the two machined parts are joined together (no glue required).
- manual workpiece clamping
- two milling spindle
- max. profile dimension 185 mm

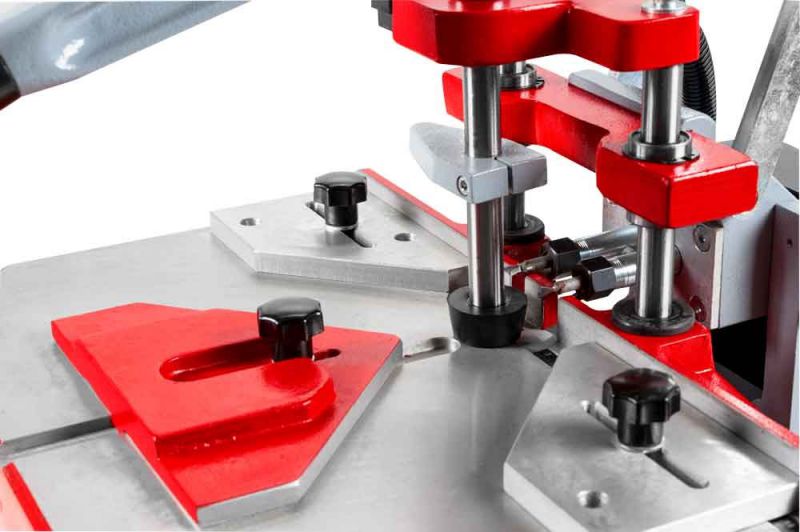

- adjustable stops for workpiece positioning
motor data
- motor power s1 in W: 600
- voltage: 230 V / 50 Hz
- appliance class: II
measurements
- table size in mm: 380 x 220
- total dimensions in mm: 400 x 480 x 550
workpiece measurements
- max. workpiece thickness in mm: 85
technical specification
- max. milling performance in mm: 55
- milling spindle speed in min-1: 12000 - 27000
volume level and vibration
- sound pressure level in dB(A): 102
weight
- gross weight in kg: 19
- net weight in kg: 16
