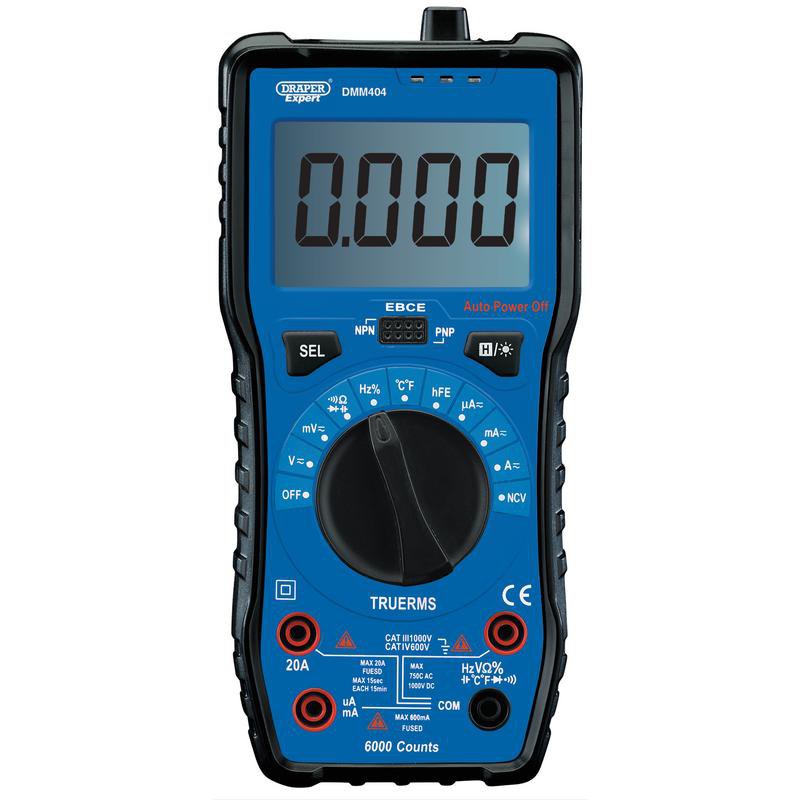

Draper Expert Auto and Manual Ranging Digital Multimeter - 92433

Draper Expert Auto and Manual Ranging Digital Multimeter

ref: 92433 / DMM404

• Auto-ranging CAT IV multimeter.
• Equipped with a high-performance MCU processor for more accurate measurements.
• Capable of DC voltage, AC voltage sine RMS, DC current, AC current sine RMS, resistance, capacitance, frequency, duty ratio, diode on/off test, symbol unit data hold and automatic power-off functions.
• Fitted with a large LCD backlit display screen, an NCV (Non - contact voltage) sensor and inspection light.
• An essential tool for electrical and industrial applications, especially useful for electricians, maintenance engineers, construction workers and electric vehicle technicians working on modern hybrid and electric vehicles.

• 1 x Bump cover with probe storage
• 1 x Set of CAT IV 600V CAT III 1000V 20amp probes
• 1 x Magnetic hang strap
• 1 x 6F22 9V battery
• 1 x Temp probe
• 1 x Storage case

• AC Current: 60uA/600uA/6000uA/60mA/600mA/20A
• AC Voltage: 600mV/6V/60V/600V/750V
• Automatic Power Off: Yes
• Battery: 6F22 9V
• Capacitance: 9.999nF/99.99nF/999.9nF/9.999µFµF/99.99µFµF/999.9µFµF/9.999mF/99.99mF
• DC Current: 60uA/600uA/6000uA/60mA/600mA/20A
• DC Voltage: 600mV/6V/60V/600V/0.1V/1000V
• Dimensions: 190mm x 90mm x 50mm
• Diode on/off Test: Yes
• Dwell: N/A
• Frequency: 9.999Hz/99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz/9.999MHz
• Resistance (Ohms): 6000Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ
• Symbol Unit Data Hold: Yes
• TACH: N/A
• Temperature Range: -20°C - 1000°C/-4°F - 1832°F
• Weight: 380g (approx.)
