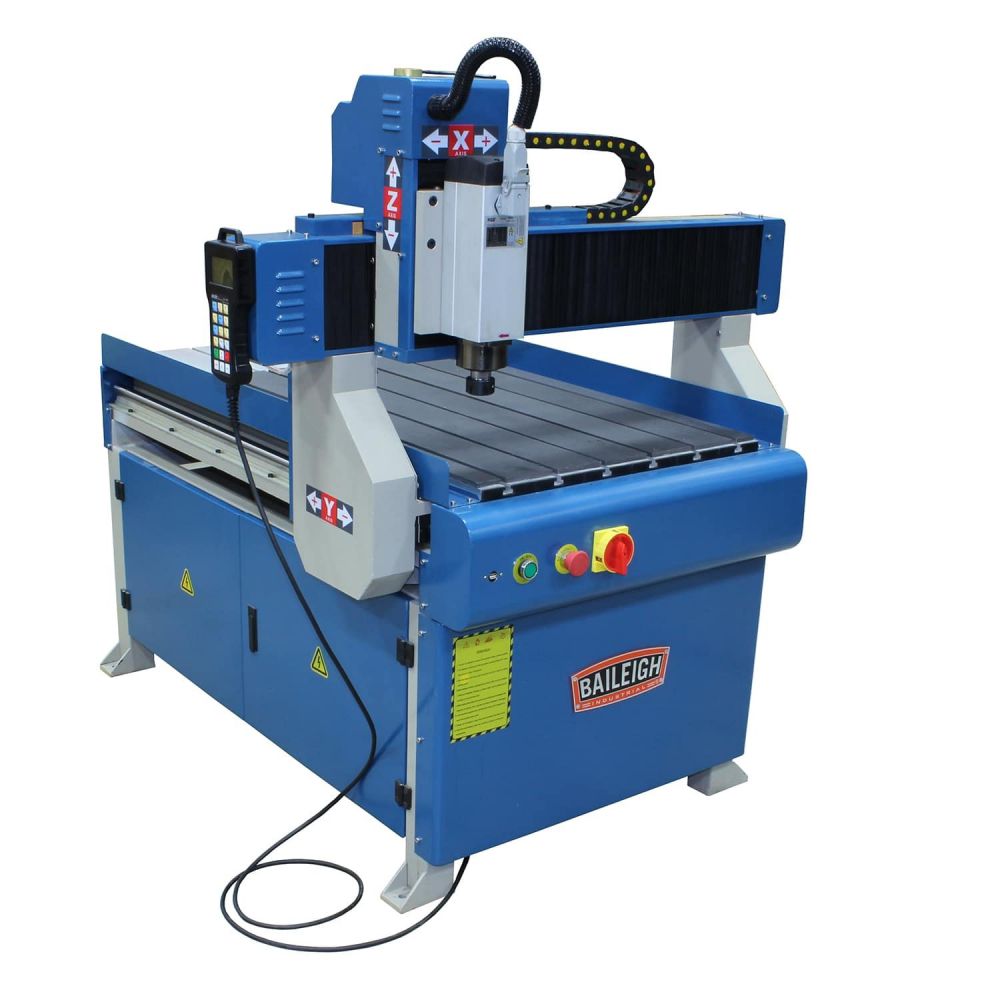

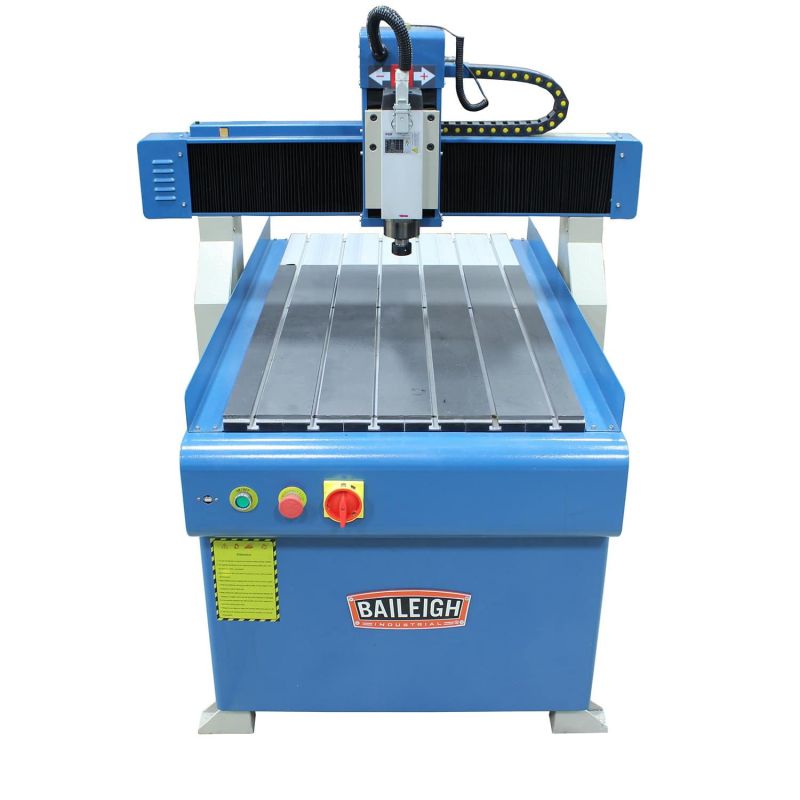

Baileigh WR-32 CNC Router Table

Baileigh WR-32 CNC Router Table

The WR-32 CNC router table comes with software, tooling, and a dust shroud - often not included with competing tables that cost more. Built to last with a cast iron base, the metal router arrives fully assembled.

• 2' x 3' table.
• Recommended for sign-makers, hobbyists, molding companies (plastic parts), research and development (R&D) shops, and industrial wood shops.
• Powerful 4.75 hp spindle.
• Up to 18,000 rpm variable spindle speed.
• Runs on 220-volt single-phase power.

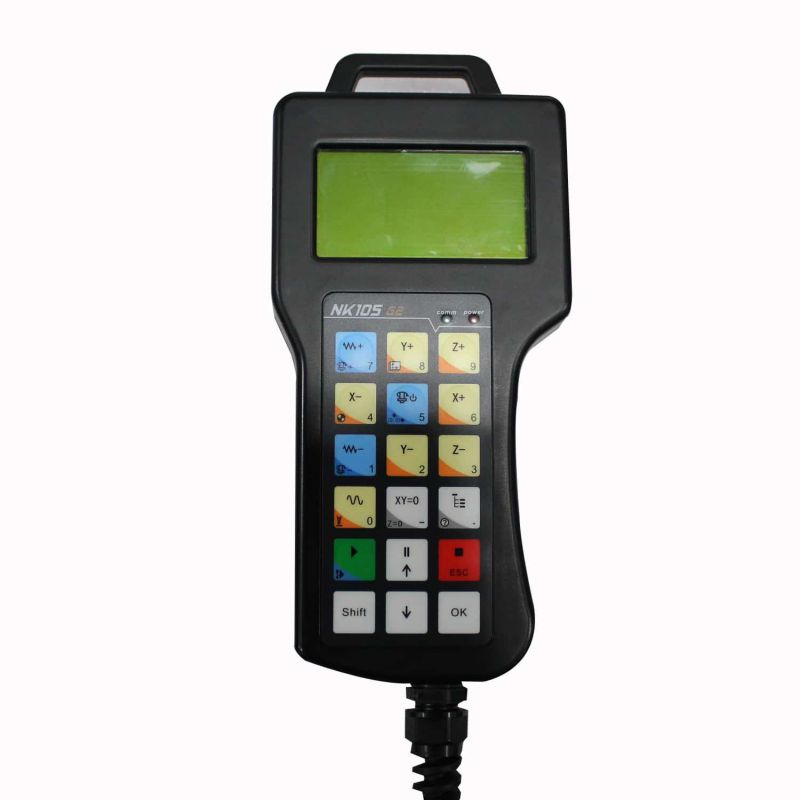

• Upload your design file to the table via a USB drive, then use the convenient handheld controller to move the spindle.
• Stepper motors move the spindle at a maximum speed of 6.5" per second.
• Ball screw X and Y axis movement for accurate positioning.
• Square slideways clamp the material down and keep it in alignment.
• 4 collets choices,1/8, 4mm, 6mm, and 1/2" (1 each) in the ER25 style.
• Comes standard with 15 starter router profiles.

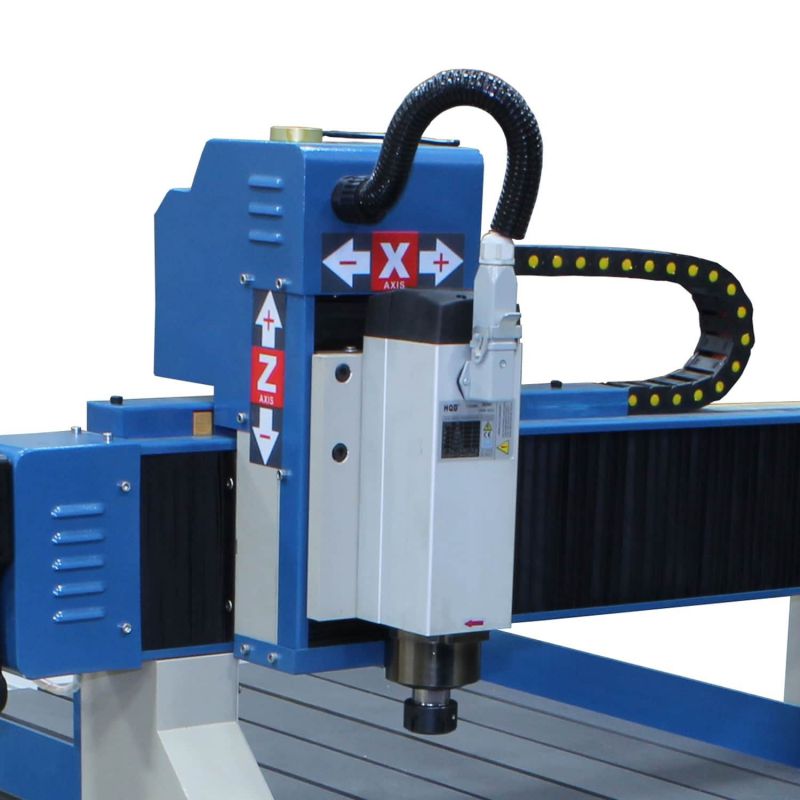

• Air-cooled spindle prolongs machine life and helps to maintain high cut quality down the road.
• 4 T-slotted clamps fit on the table to hold the material down for clean cuts.
• Structurally strong extruded aluminum table won't buckle under material weight or spindle pressure.
• The table ships pre-built with correct alignment for a fast and simple set-up - just an hour or so to uncrate the table and get started with the software.
• Rigid cast base and fully-welded steel frame reduce vibrations, so the table can cut correctly over decades of use.
• Dust shroud fits over the spindle and vacuums sawdust off the table while you cut, keeping your shop neat.
• Covered by a 1-year parts warranty.
• 2' x 3' table
• 4.75 hp spindle
• 220V 1-phase power

• Item Number WR-32
• Actual Working Area 23.6 x 35.4 x 5.12
• Table Size (Length) 53.5″
• Table Size (Width) 43.25″
• Spindle Air cooled spindle
• Z Axis Stroke 3.1″
• Maximum Moving Speed (Inches Per Minute) 590
• Maximum Engraving Speed (Inches Per Minute) 394
• Reposition Accuracy .0019″
• Tool Diameters ER25 Style in 1/8, 4mm, 6mm, and 1/2″ (1 each)
• Power 220V Single Phase
• Horse Power 4.75hp (3.5kw)
• Weight (lbs) 728
• Table Style T-Slot
• Applicable Material: Acrylic, Copper, Aluminum, Wood, PVC, ABS, Insulation Plate, Bakelite Plate, Honeycomb Plate, Resin, Organic Board, Aluminum Composite Panel
