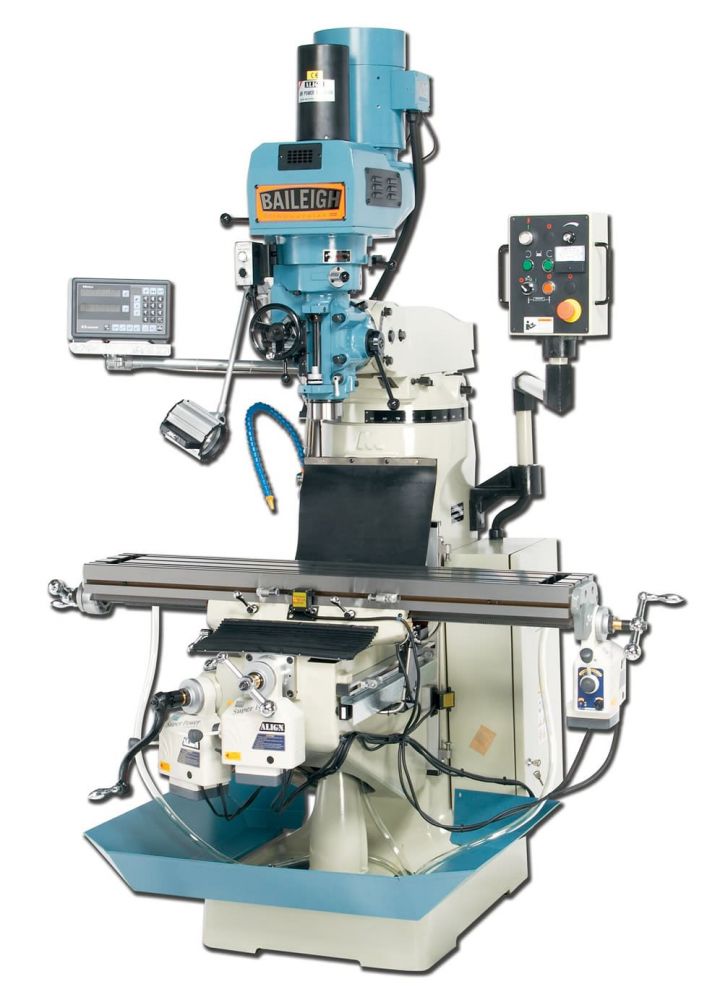

Baileigh Vertical Mill VM-949 400v

Baileigh Vertical Mill VM-949 400v

When looking for a conventional style knee milling machine, Baileigh Industrial leads the pack in both quality and standard features. Baileigh Industrial's VM-949 milling machine is no exception and is great for any small to medium machine shop or fabrication shop. Like all Baileigh machines, it's packed with tons of standard features that are options on most other brands.

• The VM-949 is fully variable speed through the use of a Yaskawa inverter drives.
• Speeds are adjustable from 0 to 4200 rpm. Adjustable spindle speeds help prolong tooling life as well as allows some applications that cannot be done on a standard drill press, such as thermal friction drilling.
• Rigidity is also very important on a mill that is why Baileigh Industrial went with only the best castings to make the base and frame work out of. The stronger you make he platform the better the cutting is. This is not the place to use an inferior process.
• To make the VM-949 milling machine even stronger, a NST 40 spindle is standard. This type spindle is stronger and give the operator a choice of larger tooling should the need arise.
• Operation of the VM-949 could not be easier as this milling machine has powered X, Y and Z axis.
• The X and Y axis utilizes a Mitutoyo DRO- digital read out for positioning down to 1/10 of a thousandth of an inch.
• Other standard features of the VM-949 milling machine include an air draw bar, coolant system with catch tray, square slide ways and X and Y axis lead screws.
• DIN 2080/ISO 40 spindle taper
• X-axis travel 724mm
• Y-axis travel 305mm
• Z-axis travel 406mm

• Item Number VM-949
• Country of Manufacture Taiwan
• Table Size 1245 mm x 230 mm
• Spindle Center To Column Min Max 213 - 533 mm
• Spindle Diameter 85.5 mm
• Spindle Feed Per Rev .0015″/.003″/.005″
• Spindle Head Swivel 45° (F&R) 90° (R&L)
• Motor Spindle 3 hp
• Travel Auto X Axis 720 mm
• Travel Auto Y Axis 305 mm
• Travel Auto Z Axis 406 mm
• Travel Manual X Axis 724 mm
• Travel Manual Y Axis 305 mm
• Travel Manual Z Axis 406 mm
• Spindle Nose To Table Min Max 55 - 460 mm
• Spindle Speed 60 - 4200 rpm
• Spindle Taper DIN2080
• Table Load Capacity 200 Kg
• T Slots 16 x 3 x 63 mm
• Motor Coolant 1/8 hp
• Cross Travel Of Ram 320 mm
• Power 400V / 3-phase
• Shipping Weight 1000 kgs.
• Spindle Travel 127 mm
• Shipping Dimensions (Inches) 1524 x 1524 x 2110 mm
