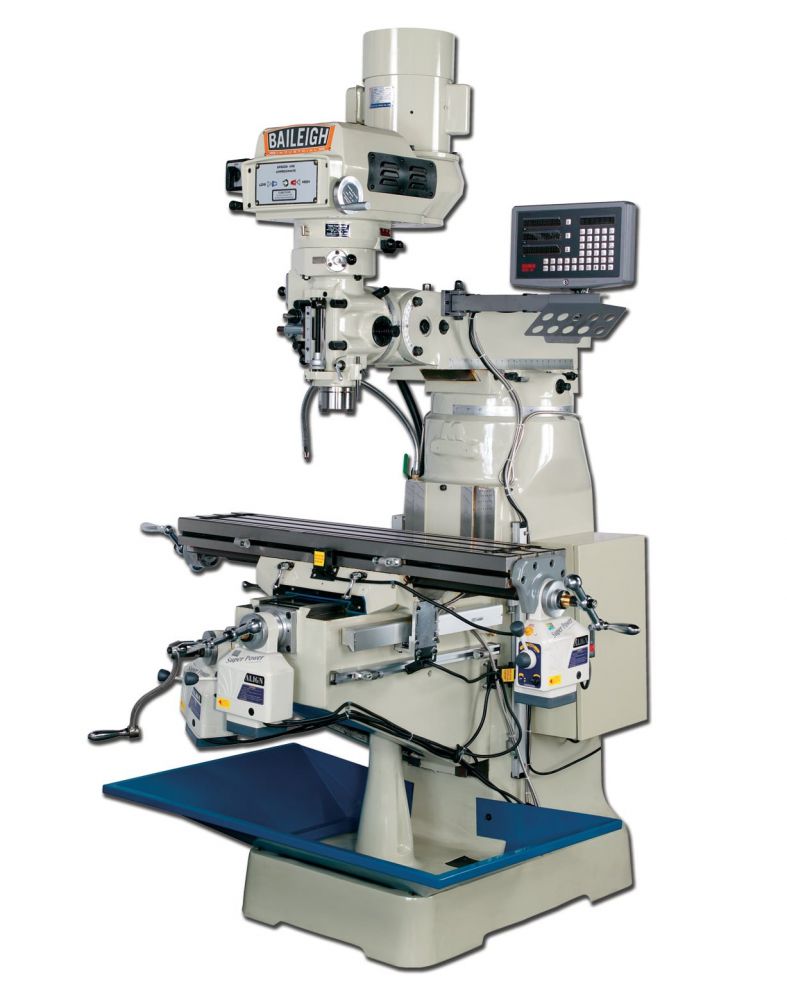

Baileigh Vertical Mill VM-942-1 240v

Baileigh Vertical Mill VM-942-1 240v

Baileigh Industrial has a line of vertical milling machines to meet any shops requirements, whether it is price, size, or power. The VM-942 vertical milling machine fits into the price category, but that does not mean that it doesn't have features to back it up and make it a great value.

• The VM-942 is a fully variable speed milling machine that allows infinite adjustment to the speed from 60 to 4200 rpm.
• Being able to fine tune the speed of the quill is important in prolonging tooling life and saving money.
• Speaking of the quill or spindle Baileigh Industrial has specified a DIN2080 spindle taper for the VM-942.
• The larger taper helps eliminate chatter and run out during the cutting process and make better cuts.
• The VM-942 has a powerful 3 hp motor that comes in 220 volt. 50 Hz, single phase and features a three axis digital read out.
• All three axis of the VM-942 are powered making this an operators dream to run.
• Other standard features of the VM-942 milling machine include a, coolant system with catch tray, square slide ways, way covers and halogen work light.
• DIN 2080/ISO 40 spindle taper
• X-axis travel 762mm
• Y-axis travel 305mm
• Z-axis travel 406mm

• Item Number VM-942
• Country of Manufacture Taiwan
• Table Size 1067 mm x 230 mm
• Spindle Center To Column Min Max 0 - 305 mm
• Spindle Diameter 85.5 mm
• Spindle Feed Per Rev .0015″/.003″/.006″
• Spindle Head Swivel 45° (F&R) 90° (R&L)
• Motor Spindle 3 hp
• Travel Auto X Axis 724 mm
• Travel Auto Y Axis 305 mm
• Travel Auto Z Axis 406 mm
• Travel Manual X Axis 762 mm
• Travel Manual Y Axis 305 mm
• Travel Manual Z Axis 406 mm
• Spindle Nose To Table Min Max 0 - 406 mm
• Spindle Speed 70 - 4200 rpm
• Spindle Taper DIN2080
• Table Load Capacity 350 Kg
• T Slots 16 x 3 x 63 mm
• Motor Coolant 1/8 hp
• Cross Travel Of Ram 305 mm
• Power 240V / 1-phase
• Shipping Weight 1000 kgs.
• Spindle Travel 127 mm
• Shipping Dimensions (Inches) 1524 x 1524 x 1905 mm
