Baileigh TN-400 Abrasive Tube Notcher

Baileigh TN-400 Abrasive Tube Notcher

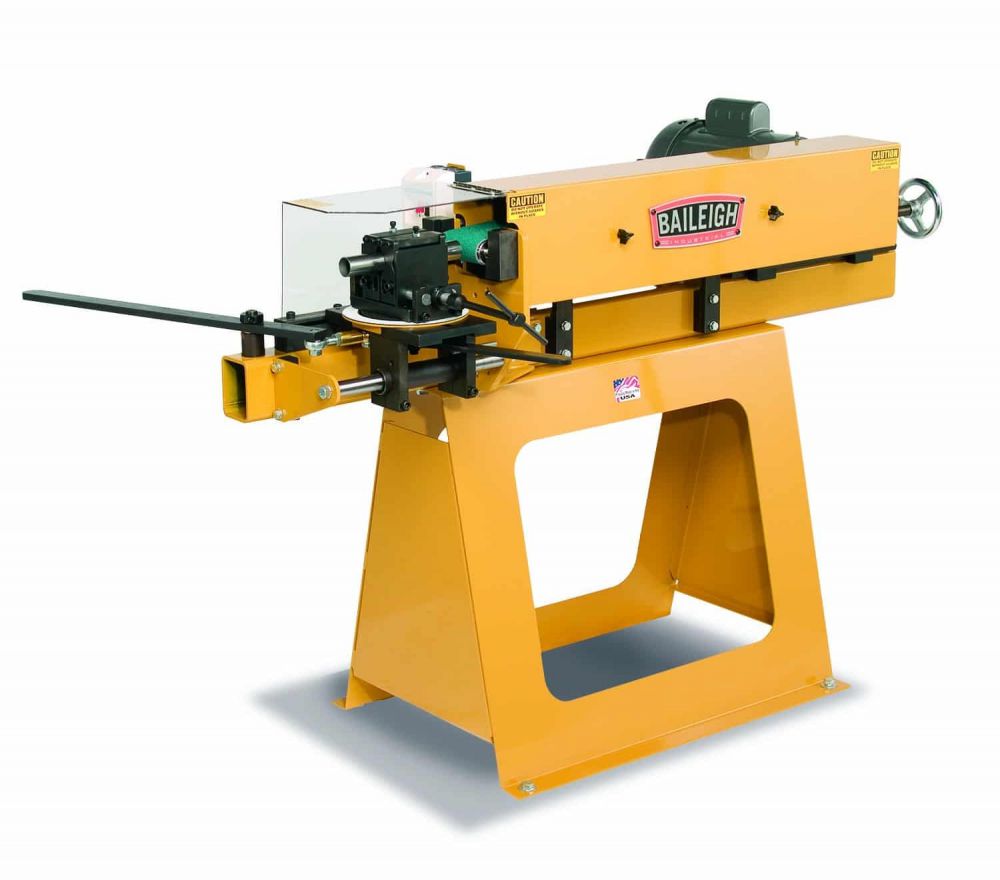

The TN-400 abrasive notcher from Baileigh Industrial is on the cutting edge of abrasive notching technology and is perfect for coping the ends of 3/4" OD to 2" OD tubing or pipe at almost any angle from 0° to 60°.

• The TN-400 uses a 3hp motor running on 220 volt, single phase power to spin the 79 x 4 belt at a speed of 5420 per minute.
• The TN-400 does require a special mandrel for each size of tube or pipe that you want to notch, but it does feature a quick-change mandrel system that allows the operator to change it in seconds.

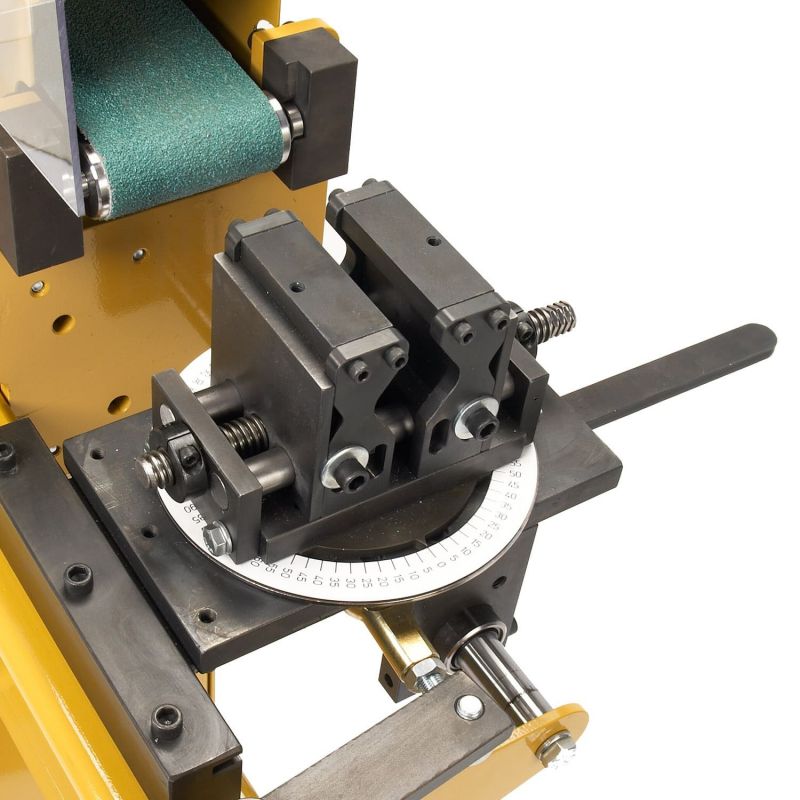

• The vice on the TN-400 abrasive notcher is where the real magic happens.

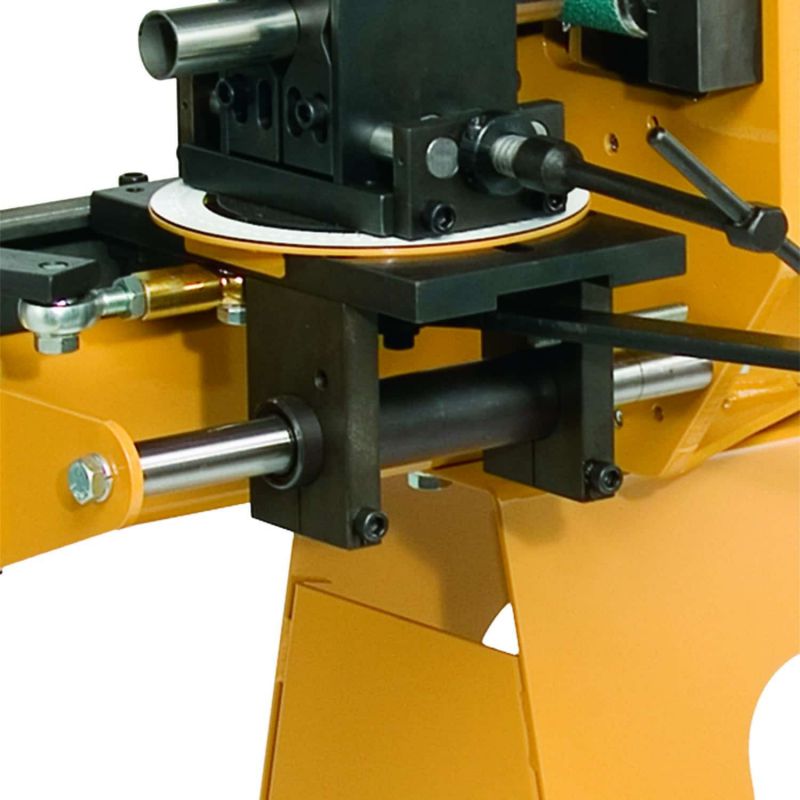

• The vice carriage rides on a smooth Thompson shaft assembly during the notching cycle.
• The control lever is pivoted making the material press into the belt.
• The vice is self-centering for perfect belt positioning every time.

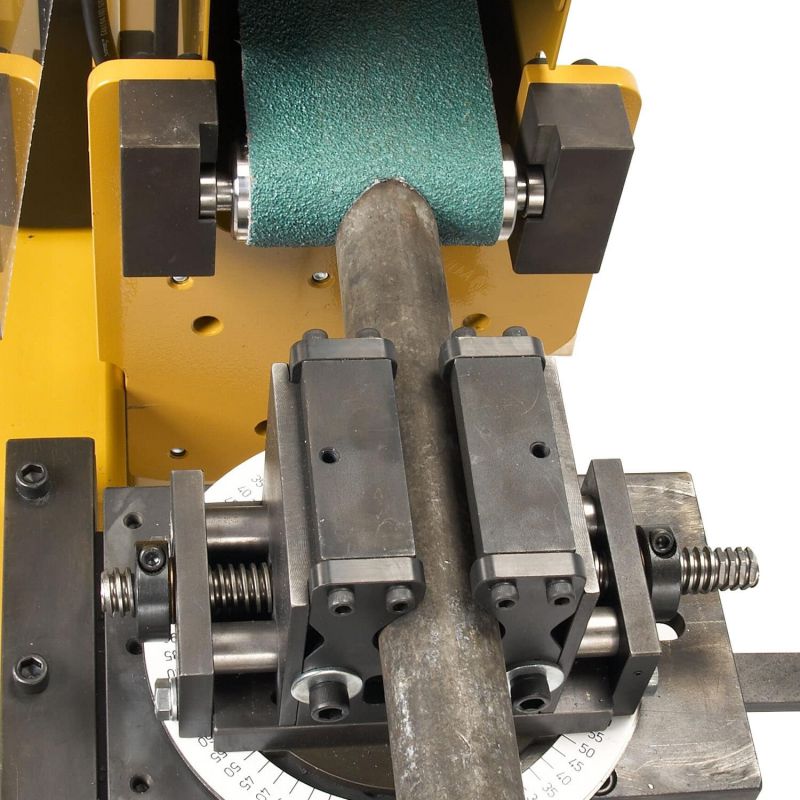

• The jaws on the vice are of a V-block design to keep the material centre with the notching spindle and to hold the part more securely.
• The TN-400 has a carriage stop for repeatable notches every time.
• Motorised abrasive belt
• 19mm to 51mm Ø tube capacity

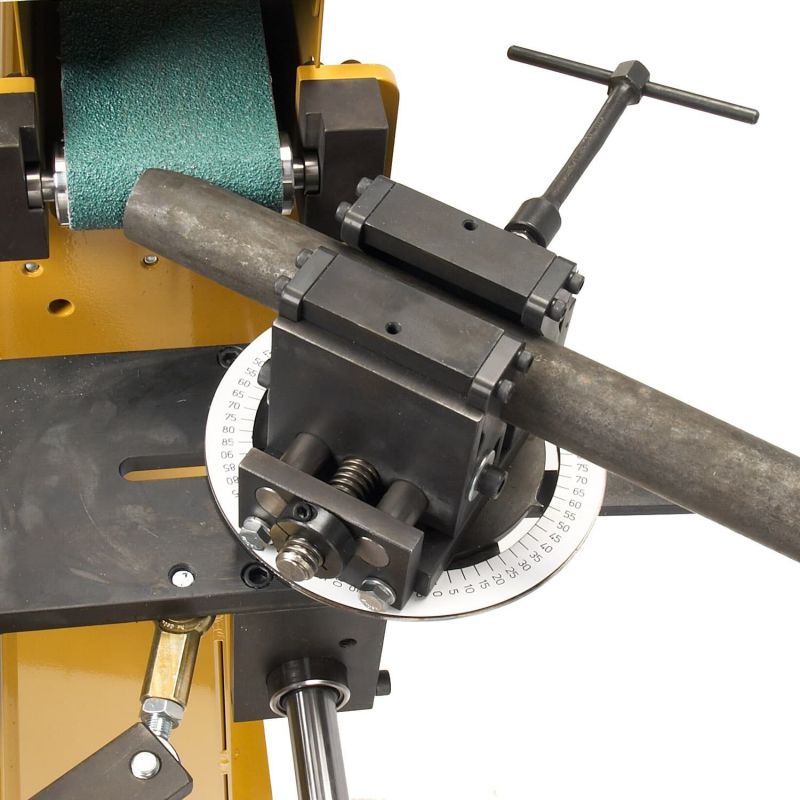

• 0° to 60° adjustment

• Item Number TN-400
• Country of Manufacture United States
• Motor Hp 3 HP
• Notching Capacity (Tube) 19 – 63.5 mm
• Notching Capacity (OD) 19.05 mm – 50.8 mm
• Belt Size 101.6 mm x 2006.6 mm
• Belt Speed 5420 FPM
• Power 220V 1-Phase
• Shipping Weight 205 kgs.
• Shipping Dimensions (Inches) 1524 mm x 1118 mm x 1524 mm
