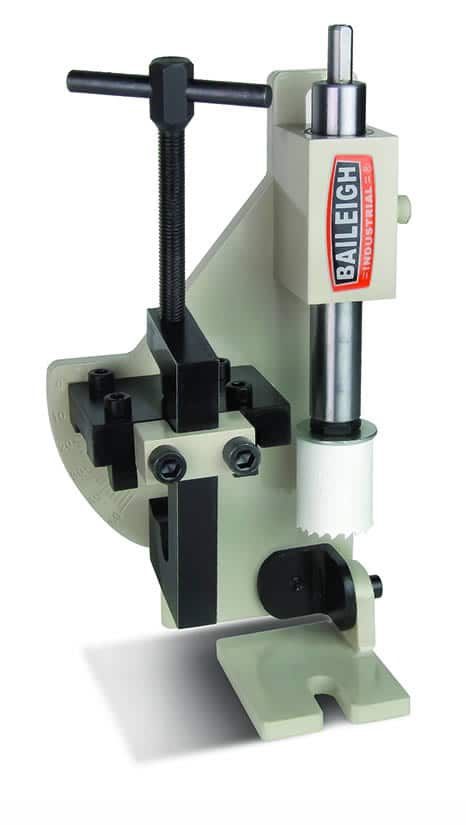

Baileigh TN-210H Hole Saw Tube Notcher

Baileigh TN-210H Hole Saw Tube Notcher

Are you looking to notch tubing economically? If so there is nothing better than a holesaw style tube notcher.

• The TN-210H is the perfect tube notching machine for the economical garage fabricator that needs to assemble and weld tubing at varying angles for applications such as mud racers, rock crawlers, midget cars, go-karts and much more.
• The TN-210H can be vertically mounted in a drill press, or for larger pieces it can be horizontally mounted on a weld bench or in a vice and powered by a portable drill.
• The TN-210H holesaw tube notcher is made of thick 1/2" plate steel with a set of industrial-grade needle bearings that are replaceable should the need ever arise.
• The spindle is made of a 1" ground and polished shaft for longevity and less vibration.
• The TN-210H can notch at angles up to 50° in less than 30 seconds and has a capacity of up to 2" round tube.
• Drill operation
• 51mm Ø tube capacity
• 0° to 60° adjustment

• Item Number TN-210H
• Spindle Adapter 1/2″ and 5/8″
• Notching Capacity (OD) 50.8 mm
• Spindle Size 1/2″
• Angle Adjustment 0 - 45°/60°
• Power Manual
• Shipping Weight 10 lbs.
• Shipping Dimensions (Inches) 12″ x 7″ x 5″
