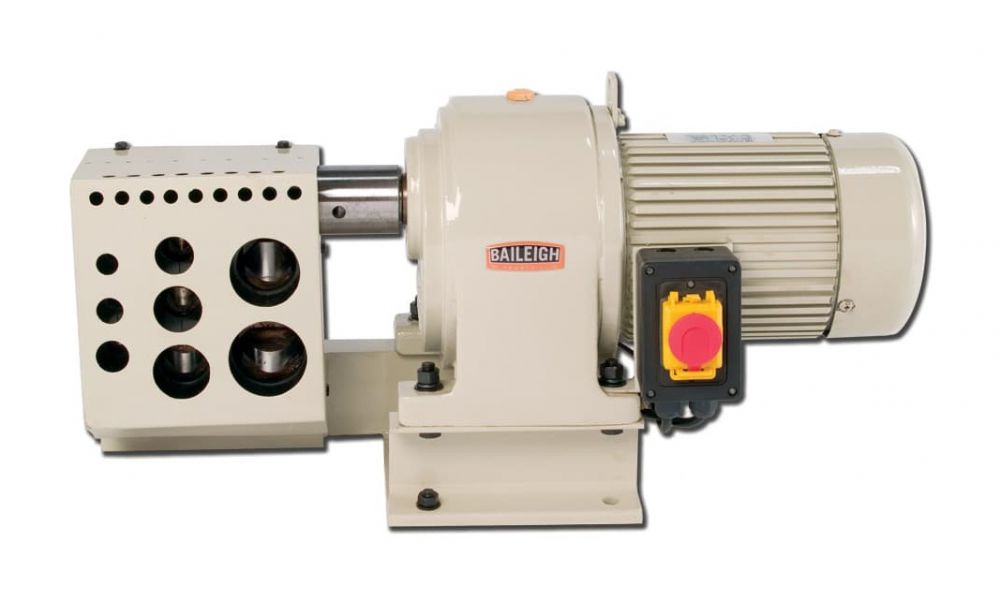

Baileigh TN-200E Pipe Notcher

Baileigh TN-200E Pipe Notcher

Do you make 90° notches in schedule 40 pipe all day, every day? Then the TN-200E is for you.

• This electric tube notcher was specifically designed to notch schedule 40 pipe ranging in sizes from 1/4 to 2.
• This 220 volt, single phase machine provides clean and fast notches.

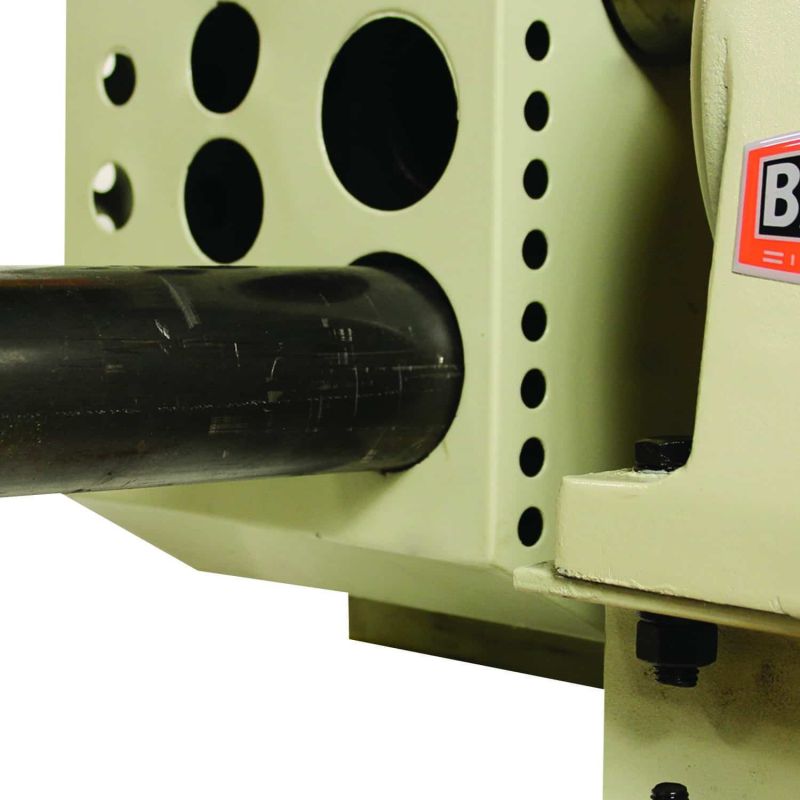

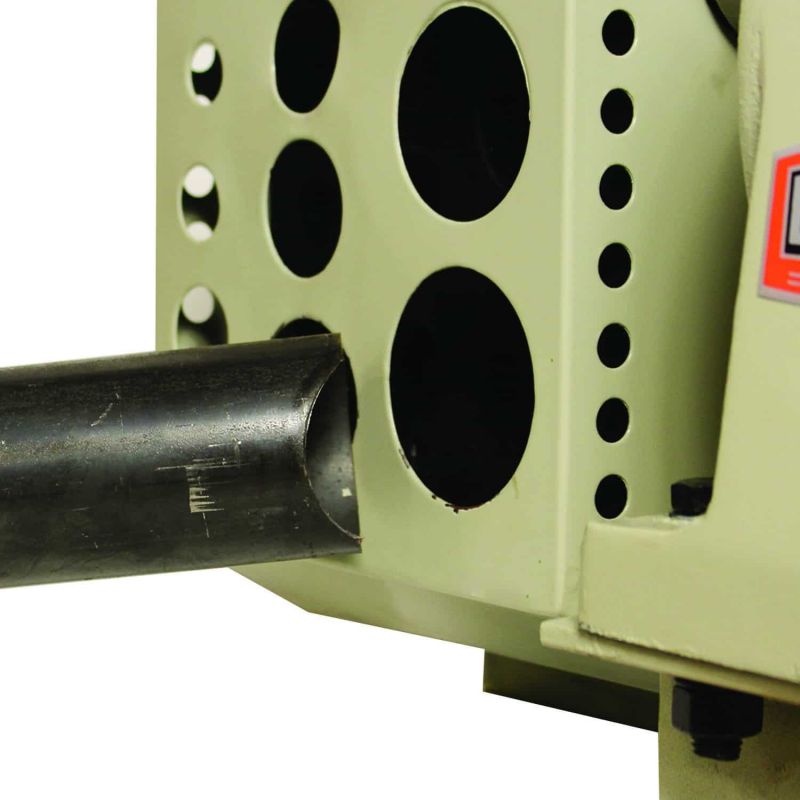

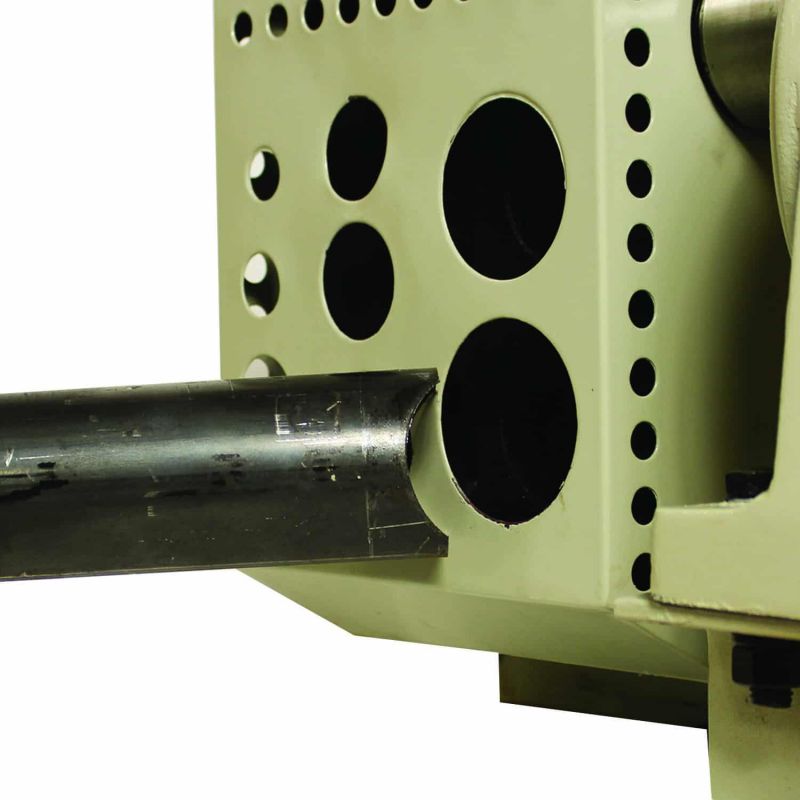

• Operation of the TN-200E is easy, simply inset the end of the pipe you need to cope, the TN-200E will notch one side and to notch the other side simply rotate the pipe 180° and reinsert. That is a perfect 90° notch in seconds.
• Motored operation
• 90° notching
• 13.7mm Ø, 17.1mm Ø, 21.4mm Ø pipe
• 26.7mm Ø, 33.4mm Ø, 42.2mm Ø pipe

• Item Number TN-200E
• Notching Capacity (OD) 13.7, 17.1, 21.4, 26.7, 33.4, 42.2, 48.3, 60.3 mm
• Notching Capacity Pipe 6.35 mm
• Power 220V, 1-Phase, 50Hz
• Shipping Weight 105 kgs.
• Shipping Dimensions (Inches) 914 mm x 406 mm x 457 mm
