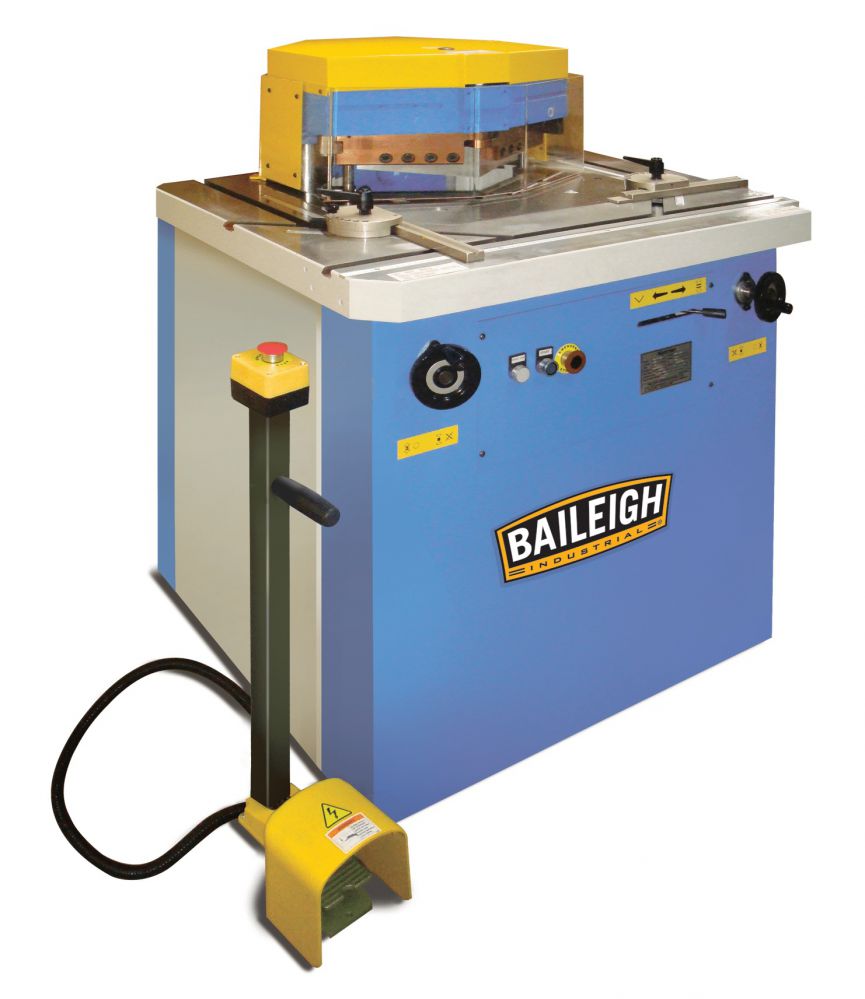

Baileigh SN-V04-MS Corner Notcher

Baileigh SN-V04-MS Corner Notcher

Ever have odd angles that you need to notch perfectly from sheet metal? Enter the SN-V04-MS.

• This great machine is a 400 volt, 50hz, three phase, variable angle sheet notcher.
• This notcher will cut notches from 30° to 140° in mild steel up to 6mm in thickness and will do this at up to 15 strokes per minute.
• The oversized 27 x 23.5 table includes table guides and mitre blocks to ensure accurate notches every time.
• The SN-V04-MS variable angle notcher has 8.5 long blades that are negatively raked to pull the material to the stops during the cut.
• The blades can also be resharpened many times for even more life and cost savings.
• Blade gap is adjusted with the use of hand wheels and the notching stroke is controlled by a foot pedal.
• 3.2mm mild capacity
• 1.8mm stainless capacity

• Item Number SN-V04-MS
• Country of Manufacture Taiwan
• Table Size 27″ x 23.5″
• Table Dimensions 950 mm x 787 mm
• Motor 4 hp
• Notch Angle 30°  140° Variable
• Strokes Per Minute 15
• Blade Gap Adjustment Manual
• Max. Capacity 6 mm
• Power 400V, 50Hz, 3-Phase
• Shipping Weight 758kgs.
• Shipping Dimensions 1524 x 1118 x 1727 mm
• Max Notch Dimensions 215 mm x 215 mm
