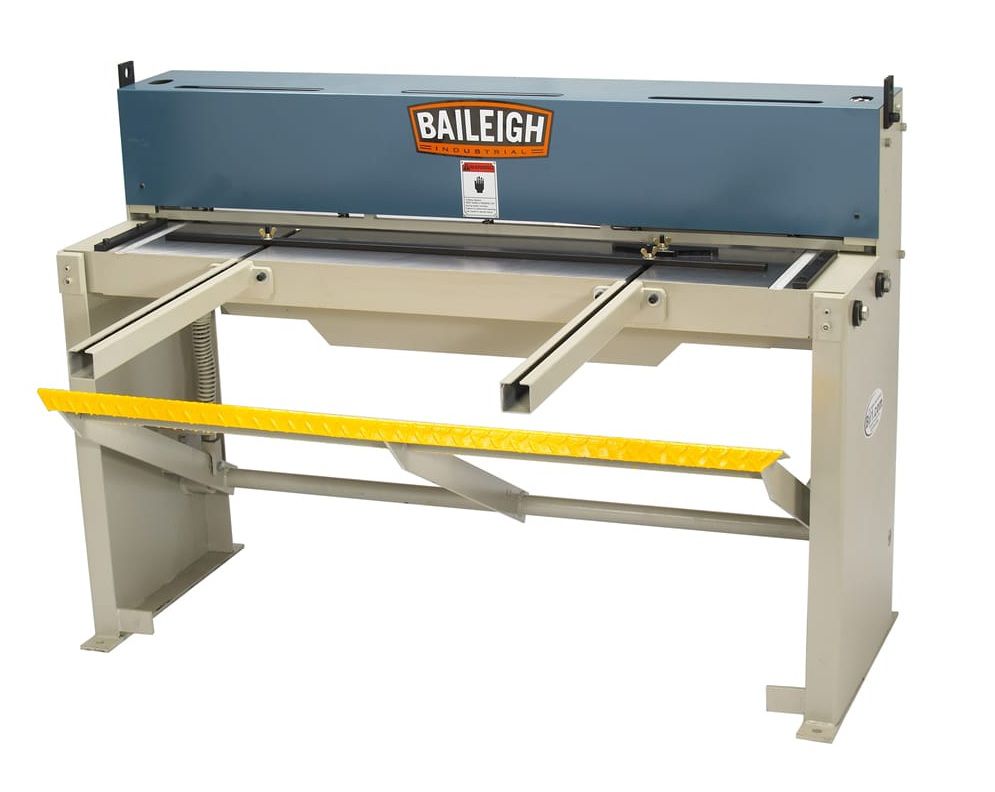

Baileigh SF-5216 Manual Foot / Treadle Guillotine 52inch

Baileigh SF-5216 Manual Foot / Treadle Guillotine 52inch

The SF-5216 foot shear from Baileigh Industrial is unlike anything on the market. The fit and finish of the SF-5216 is unrivaled in the industry.

• This heavy-duty manual shear is capable of shearing 16 gauge mild steel sheet metal over its entire 52 length.
• The SF-5216 is made from solid steel construction for maximum rigidity. This rigidity helps the shearing process by having less deformation at the start of the cut.
• The SF-5216 is easy to operate. Simply put your material between the blade and the table, and stomp the foot pedal.
• There is also a finger guard for safety when shearing.
• Other features include a front gauge and back gauge range of 24" for repeatable cuts time and time again.
• Manual operation
• 1.65mm shear capacity (mild)
• 1321mm shear length

• Item Number SF-5216
• Country of Manufacture Taiwan
• Back Gauge Length 17159
• Shear Length 1321 mm
• Thickness (SS) 16 ga. (20 ga.)
• Capacity 1.6mm
• Front Gauge Length 609 mm
• Blade Angle 1°
• Power Manual
• Shipping Weight 454 kgs.
• Shipping Dimensions (Inches) 1702 x 813 x 1346 mm
