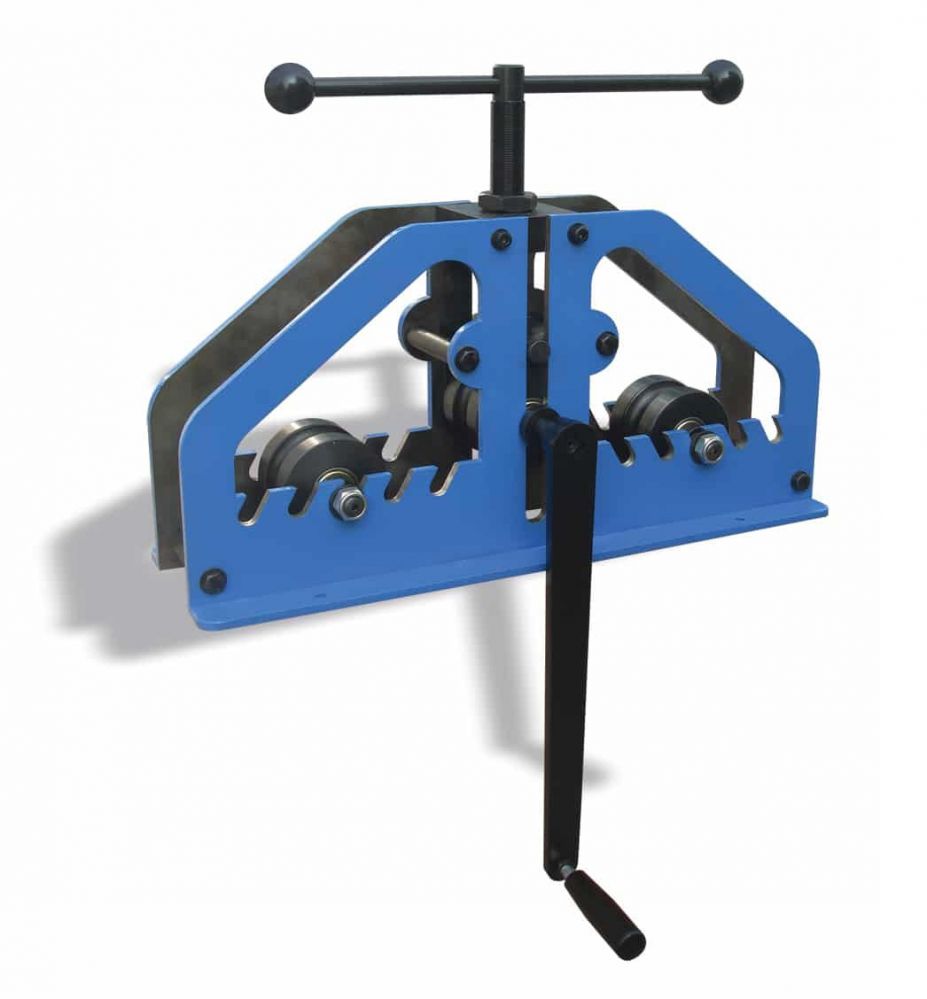

Baileigh R-M7 Manual Roll Bender

Baileigh R-M7 Manual Roll Bender

Need to bend tube and pipe to large radii? Then Baileigh Industrial's R-M7 radius bender is for you.

• Although not for rolling complete circles, the R-M7 makes quick work of large radius bends.
• With many different tooling options, the R-M7 is just as versatile as all of the other Baileigh Industrial roll benders.
• The R-M7 radius bender is built using the highest quality materials for years of use.
• The R-M7's small size makes it highly portable and versatile for even the smallest shops.
• All turning shafts on the R-M7 roll bender turn on precision ball bearings, for the smoothest operation possible.
• Manual operation
• 50mm dia' round tube capacity
• Single pinch
• Single driven roll

• Item Number R-M7
• Driven Rolls 1
• Roll Adjustment Manual
• Pipe Capacity Size: 48 mm / Min. Radius.: 508 mm
• Flat Bar Easy Way Size: 32 mm / Min. Radius.: 254 mm

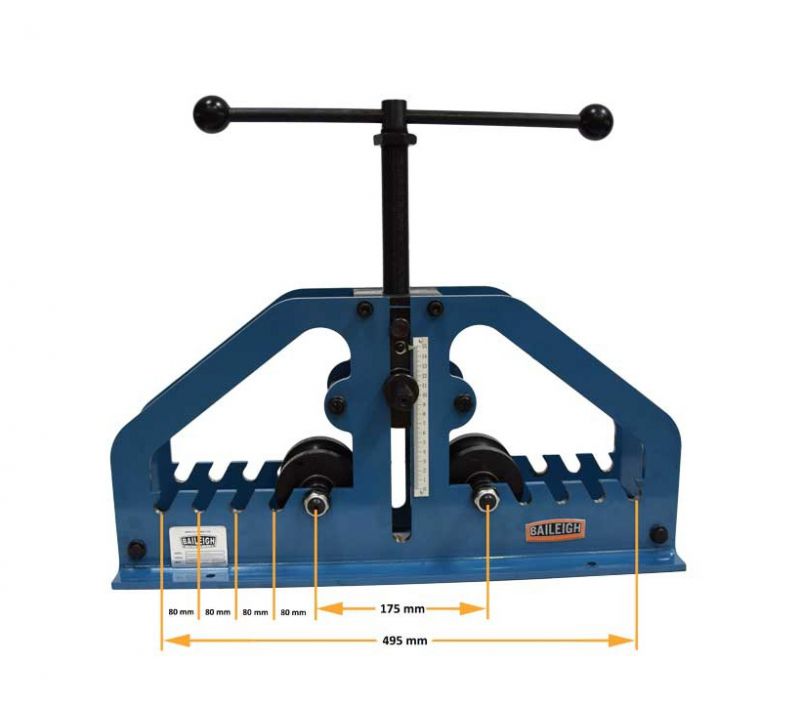

• Shaft Center Distance Adj. (lower rolls)
• Rectangle Capacity Size: 25 x 50 mm / Min. Radius.: 254 mm
• Pinch Single
• Power Manual
• Shipping Weight 68 kgs.
• Material Type All Specs based on 60,000 PSI (42 Kg/mm 2) Tensile Strength – Mild Steel.
• *Optional Tooling Some applications may require optional tooling.
