Baileigh R-M55 Manual Roll Bender

Baileigh R-M55 Manual Roll Bender

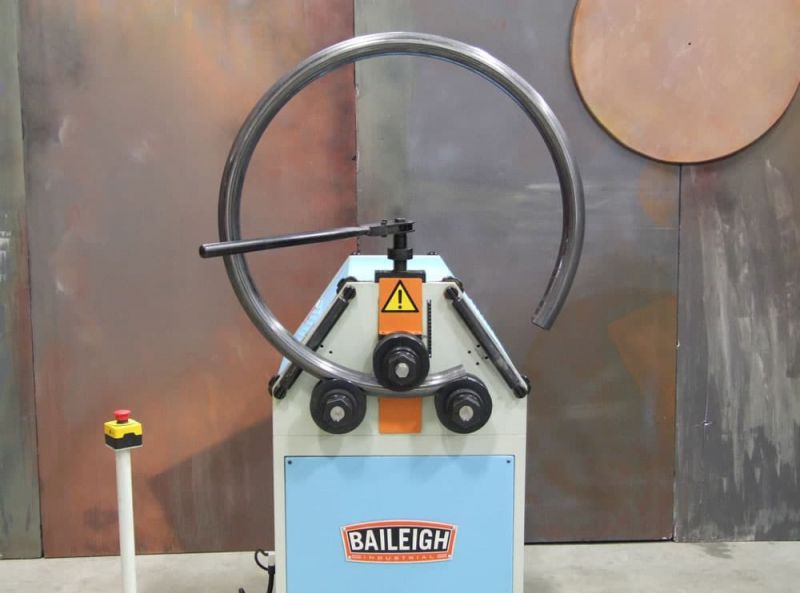

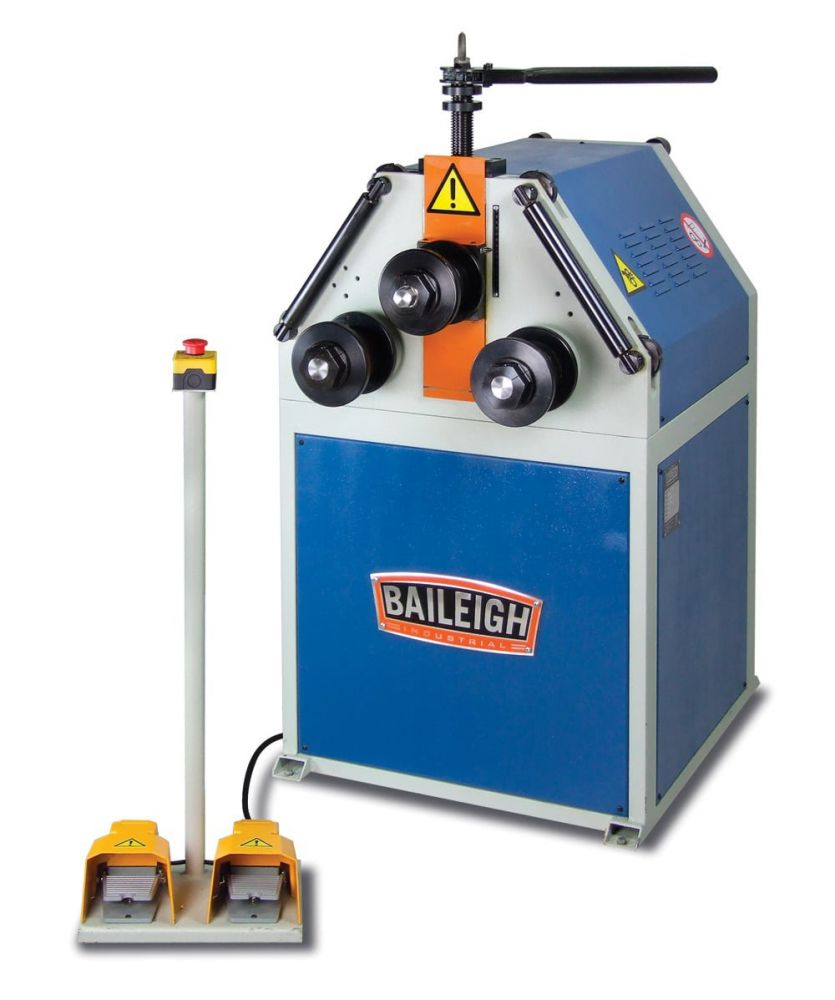

The R-M55 has been the flagship in the Baileigh Industrial roll bender line since its introduction.

• It has a 2" schedule 40 pipe capacity, which is impressive for a manual top shaft, two driven roll machine.
• To achieve this type of capacity, the R-M55 uses a variable speed inverter that is overload protected. This allows the operator to fine-tune the rolling speed for each material.
• The R-M55 is very versatile, and can be used in any fabrication shop or even out in the field on job sites, as it only requires 220 volt, single phase power to operate.
• It can be operated both the vertically for smaller rolling projects, as well as horizontally on its back, for large rolling projects, as there are feet on the bottom and back of the machine.
• The R-M55 roll bender comes standard with foot pedal controls, segment rolls, and lateral roll guides to keep the material from twisting during the bend.
• The top roll position is manually controlled with the use of a large ratchet for more leverage, and the position is indicated on a scale for repeatable bends every time.
• Optional rolls can be purchased for different profiles like tubing, pipe, angle iron and much more.

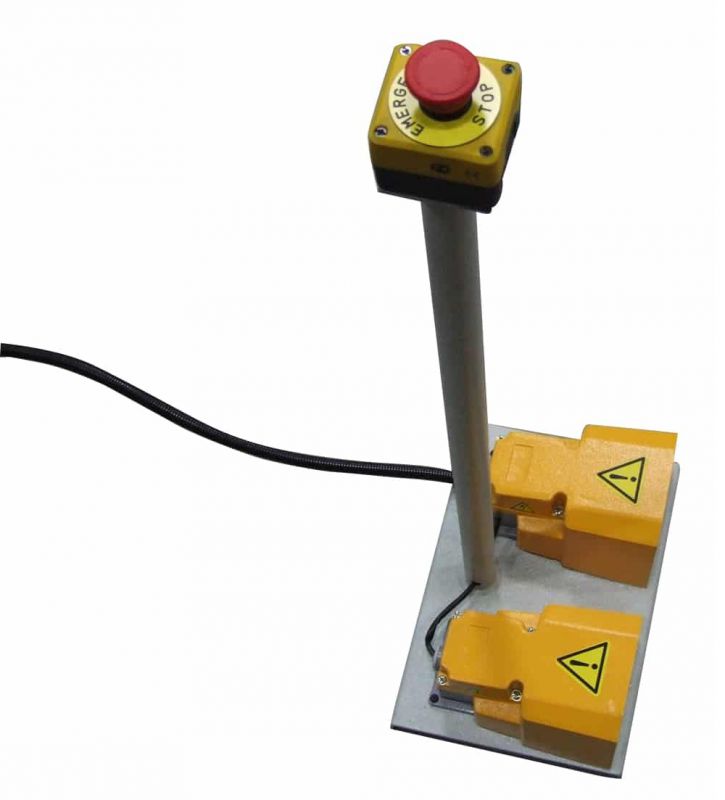

• Foot pedal operation
• 60mm Ø 2mm round tube capacity
• Single pinch
• Double driven rolls

• Item Number R-M55
• Country of Manufacture Portugal
• Driven Rolls 2
• Roll Adjustment Manual
• Pipe Capacity Size: 48 (3) mm / Min. Dia: 1,000 mm
• Round Tube Capacity Size: 60 (2) mm / Min. Dia.: 1,100 mm
• Square Tube Capacity Size: 40 (3) mm / Min. Dia.: 1,219 mm
• Solid Round Capacity Size: 35 mm / Min. Dia.: 900 mm
• Flat Bar Easy Way Size: 80 mm x 15mm/ Min. Dia.: 700 mm
• Flat Bar Hard Way Size: 60 mm x 10mm/ Min. Dia.: 900 mm
• Angle Iron Capacity Size: 50 (5) mm / Min. Dia.: 950 mm
• Shaft Diameter 50 mm
• Shaft Center Distance 13.12″
• Upper Roll Dia. 148 mm
• Lower Roll Dia. 148 mm
• Motor 1.5 hp
• Pinch Single
• Power 220V / 1-phase
• Shipping Weight 453 kgs.
• Material Type All Specs based on 60,000 PSI (42 Kg/mm 2) Tensile Strength – Mild Steel.
• *Optional Tooling Some applications may require optional tooling.
• Speeds 5754
• Shipping Dimensions (Inches) 1524 x 1118 x 1727 mm
