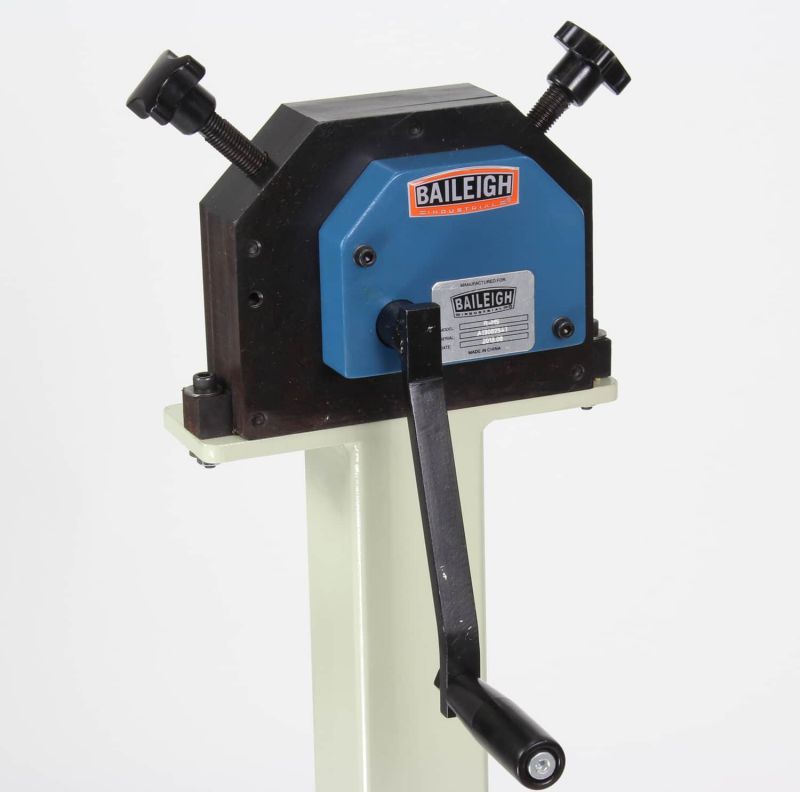

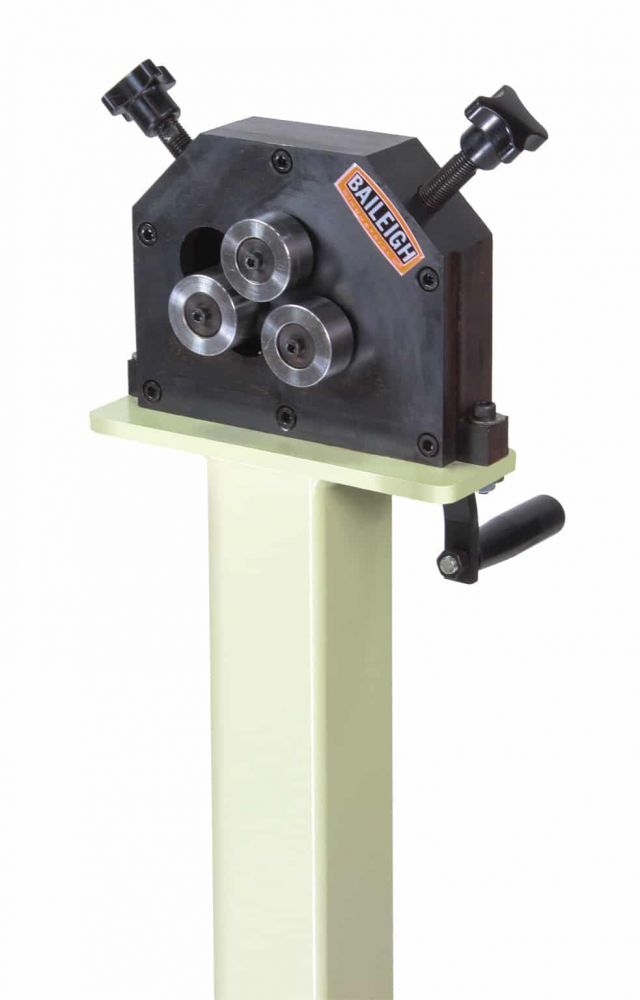

Baileigh R-M5 Manual Roll Bender

Baileigh R-M5 Manual Roll Bender

The R-M5 ring roller from Baileigh Industrial is not like any other machine in its class; this machine is built using only the best parts and is designed to last a lifetime.

• The unique adjustment of this three driven roll bender allows bending on either side of the bottom roll to give you more radius options.
• Small compact and portable

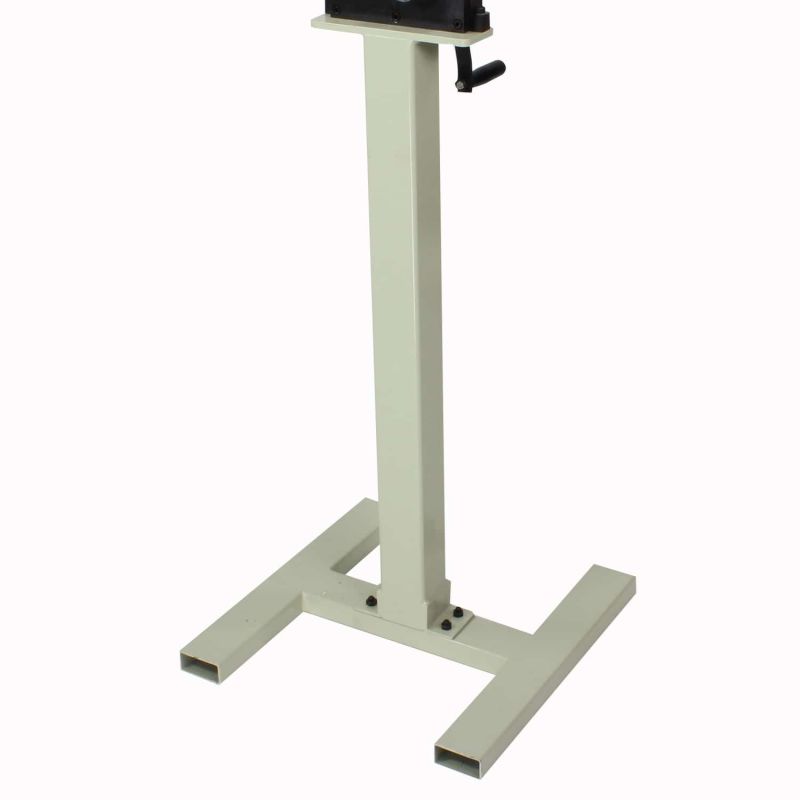

• Comes with stand.

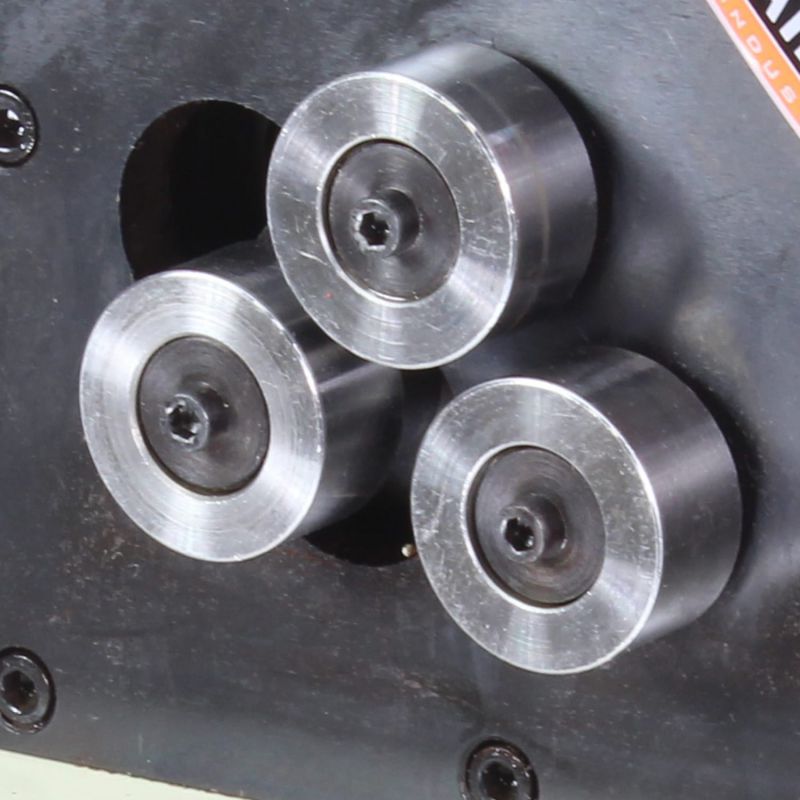

• 3 driven, manually powered rolls
• Includes tooling for flat bar
• Perfect for doing small circles
• Optional tooling sets for round stock available
• Manual operation
• 16mm Ø 1.5mm round tube capacity
• Comes with stand

• Item Number R-M5
• Round Tube Capacity 16mm x 1.5mm (Min Dia 150mm)
• Capacity Solid Round (w/ optional tooling) .5″
• Flat Bar Easy Way 25 mm x 7 mm
• Flat Bar Hard Way 20mm x 6mm (Min. Dia. 120mm)
• Shaft Diameter 15mm
• Power Manual
• Shipping Weight 85 lbs.
• Material Type All Specs based on 60,000 PSI (42 Kg/mm 2) Tensile Strength  Mild Steel.
• *Optional Tooling Some applications may require optional tooling.
• Shipping Dimensions (Inches) 30″ x 40″ x 18″
