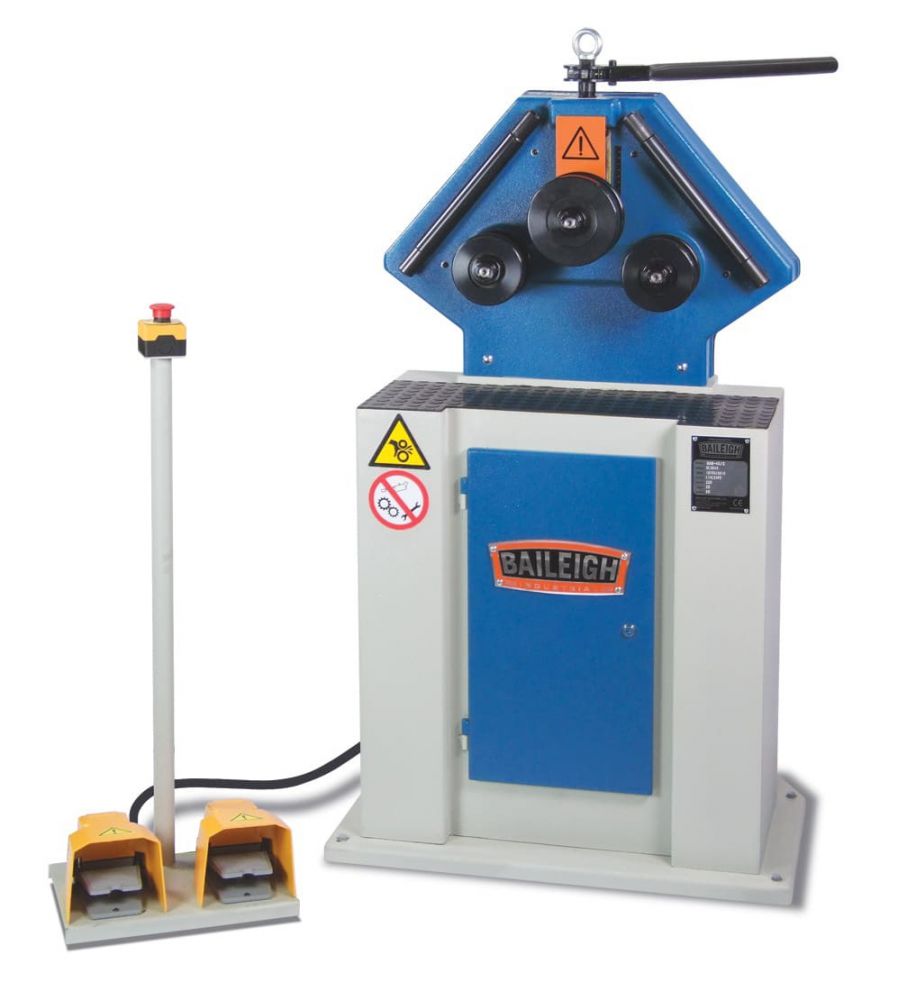

Baileigh R-M40 Manual Roll Bender

Baileigh R-M40 Manual Roll Bender

Profile bending is very popular in the world of metal fabrication, and as ideas get bigger so do the needs to complete the projects. A great starting point for anyone looking for a ring roller is the R-M40 from Baileigh Industrial.

• This machine uses a 220 volt, single phase motor to do the rolling and a ratchet style manual top roll to adjust forming pressure.
• The R-M40 ring roller is perfect for rolling various sections such as hay hoops, coils of tubing, stair railing pipe and much more.
• Like most of Baileigh Industrial's ring rollers, the machine is manufactured using heavy steel plate, industrial-grade transmissions, variable speed inverter driven drives, and much more.
• This ring roller can bend in both the horizontal and vertical positions and comes with a set of segment rolls that can be used for bending flat bar, solid rod, and some square applications.
• A solid base has a storage cabinet for tooling.
• Foot pedal operation
• 50mm dia' 2mm round tube capacity
• Single pinch
• Double driven rolls

• Item Number R-M40
• Country of Manufacture Portugal
• Driven Rolls 2
• Roll Adjustment Manual
• Pipe Capacity Size: 33.7 (2.65) / Min. Dia.: 900mm
• Round Tube Capacity Size: 50 (2) mm / Min. Dia.: 700 mm
• Square Tube Capacity Size: 38 (2.1) mm / Min. Dia.: 991 mm
• Solid Round Capacity Size: 35 mm / Min. Dia.: 610 mm
• Flat Bar Easy Way Size: 76 (13) mm / Min. Dia.: 400 mm
• Flat Bar Hard Way Size: 57 (9.5) mm / Min. Dia.: 508 mm
• Angle Iron Capacity Size: 38 (4.7) mm / Min. Dia.: 558 mm
• Shaft Diameter 30 mm
• Shaft Center Distance 276 mm (lower rolls)
• Shaft Center Distance Lower Rolls 10.88″
• Upper Roll Dia. 130 mm
• Lower Roll Dia. 130 mm
• Motor 1.5 hp
• Pinch Single
• Power 220V, 50Hz, 1-phase
• Shipping Weight 254 kgs.
• Material Type All Specs based on 60,000 PSI (42 Kg/mm 2) Tensile Strength – Mild Steel.
• *Optional Tooling Some applications may require optional tooling.
• Speeds 5814
• Shipping Dimensions (Inches) 1524 x 1118 x 1727 mm
