Baileigh R-M3 Manual Roll Bender

Baileigh R-M3 Manual Roll Bender

Ever have the need to work with small material under 6.5mm? If so, the R-M3 from Baileigh Industrial might be you answer.

• The Baileigh Industrial R-M3 metal ring roller is perfect for any fabrication shop with smaller capacity applications.
• The R-M3 roll bender makes precise bending of small rod (up to 6.5mm) easy.
• Artists, technical schools, and home shops can find hundreds of uses to keep this well built angle roll in use every single day.
• Unlike some other versions of this ring roller that are available, the Baileigh R-M3 is made using only the best plate steel, ensuring years of productivity.

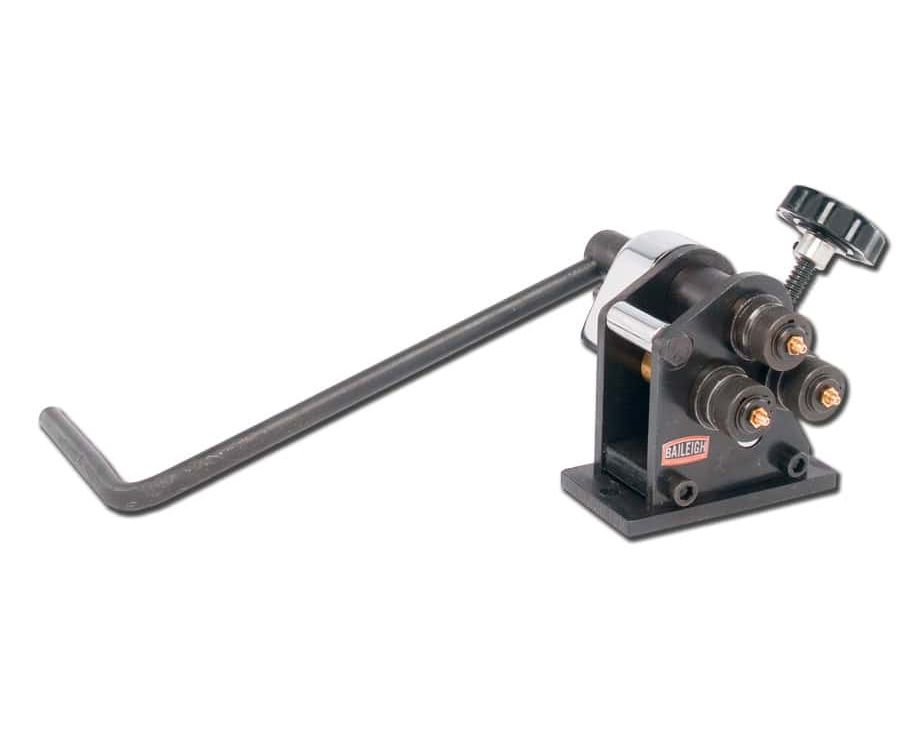

• The R-M3 is a single pinch metal ring roller that can be bench or pedestal mounted.
• It has fine adjustment for the top roll and to power this ring roller there is a long manual hand crank.
• Manual operation
• 6.35mm Ø solid round capacity

• Item Number R-M3
• Minimum Diameter 76.2 mm
• Capacities Flat Bar 25 mm x 5 mm
• Capacities Solid Round 6.35 mm
• Handle Length 343 mm
• Power Manual
• Shipping Weight 8 kgs.
• Material Type All Specs based on 60,000 PSI (42 Kg/mm 2) Tensile Strength  Mild Steel.
• *Optional Tooling Some applications may require optional tooling.
• Shipping Dimensions (Inches) 381 mm x 178 mm x 203 mm
