Baileigh R-M10 Manual Roll Bender

Baileigh R-M10 Manual Roll Bender

The R-M10 has been a staple in the Baileigh Industrial roll bender line since it was first introduced in 2004. This manually powered roll bender is capable of rolling full circles because of its open face design. The R-M10 can do anything that the lager models of roll benders can. The only difference is that the R-M10 has a manually powered top roll, but it does have a reduction gearbox to assist in the bending functions.

• The R-M10's powerful manual drive system has a maximum capacity of 1.25 (.078 wall) round tubing capacity in mild steel.

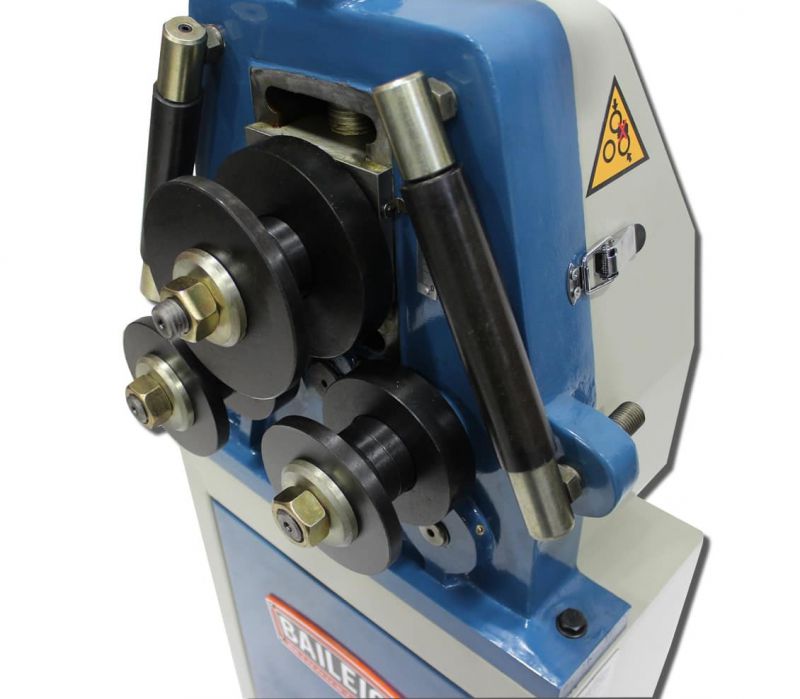

• All rolling shafts on the R-M10 angle roll are hardened and turn on bronze bushings, ensuring long life and great wear characteristics.
• The head is made of strong cast steel and machined to exacting tolerances.

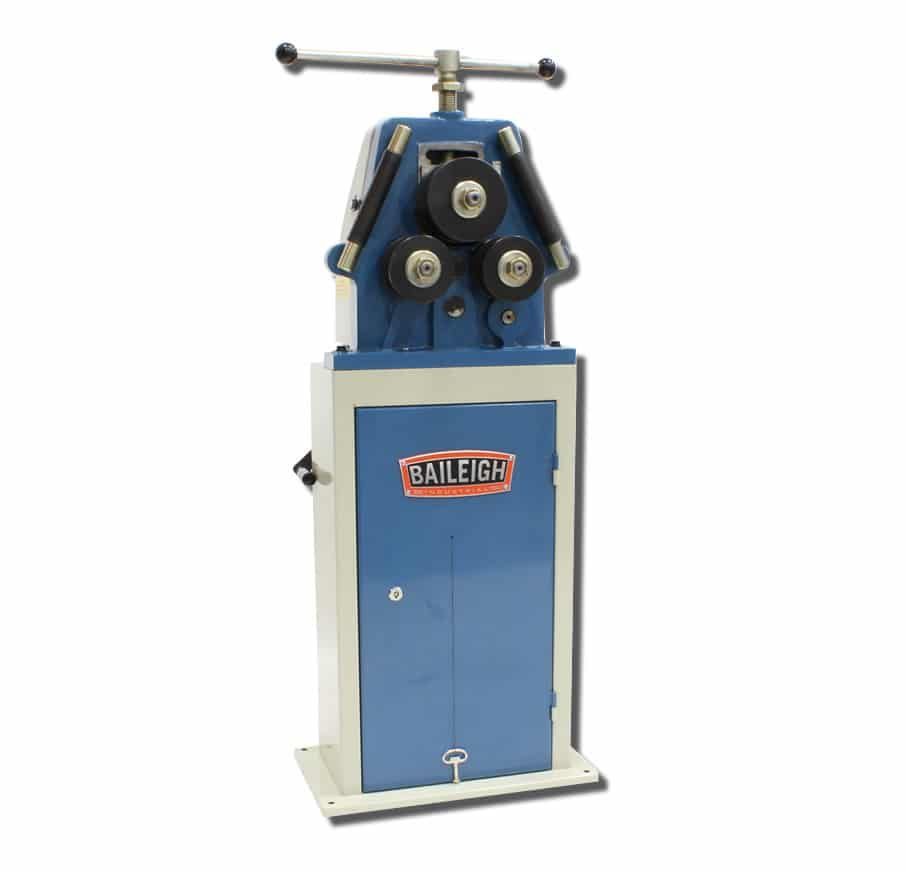

• The base that comes with the machine has a useful storage cabinet for tooling and more.
• The R-M10 comes with segment rolls that allows for many different types of flat bar, some angle iron, and some square to be rolled.
• The R-M10 has many optional sizes of tooling available for tube and pipe, as well as many other profiles.
• The R-M10 would be a perfect addition to any fabricating shop.
• Manual operation
• 32mm dia' 2mm round tube capacity
• Single pinch
• Single driven roll

• Item Number R-M10
• Roll Adjustment Manual
• Pipe Capacity Size: 28 (3) mm / Min. Dia.: 711 mm
• Round Tube Capacity Size: 32 (2) mm / Min. Dia.: 800 mm
• Square Tube Capacity Size: 30 (2) mm / Min. Dia.: 889 mm
• Solid Round Capacity Size: 22 mm / Min. Dia.: 508 mm
• Flat Bar Easy Way Size: 50 mm / Min. Dia.: 400 mm
• Flat Bar Hard Way Size: 1.18″ (.39″) / Min. Dia.: 19.685″ 29.9mm (9.9mm) / Min. Dia.: 500mm
• Angle Iron Capacity Size: 32 (40) mm / Min. Dia.: 762 mm
• Shaft Diameter 30 mm
• Shaft Center Distance 6.7″
• Upper Roll Dia. 98 mm
• Lower Roll Dia. 115 mm
• Pinch Single
• Power Manual
• Shipping Weight 197 kgs.
• Material Type All Specs based on 60,000 PSI (42 Kg/mm 2) Tensile Strength – Mild Steel.
• *Optional Tooling Some applications may require optional tooling.
• Speeds 5802
• Shipping Dimensions (Inches) 1524 x 1118 x 1727 mm
