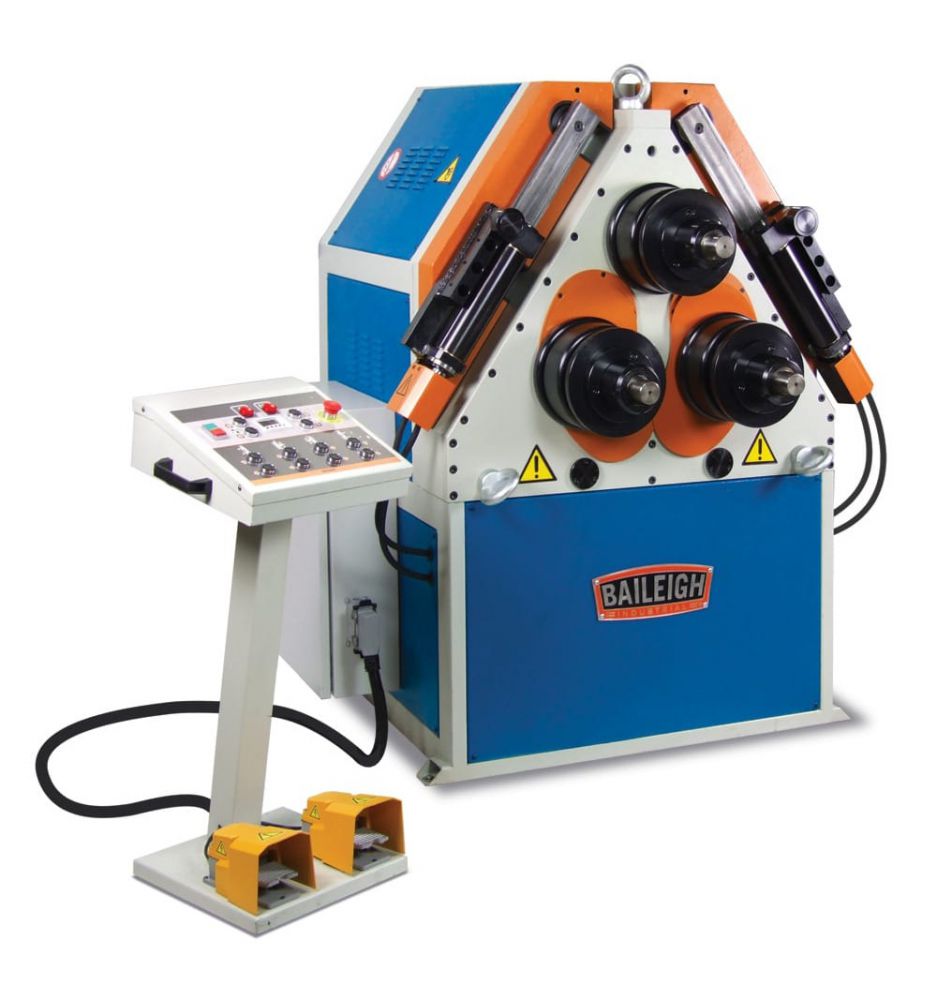

Baileigh Industrial's R-H85 double pinch angle roll machine is a great roll bender when looking to reduce waste.

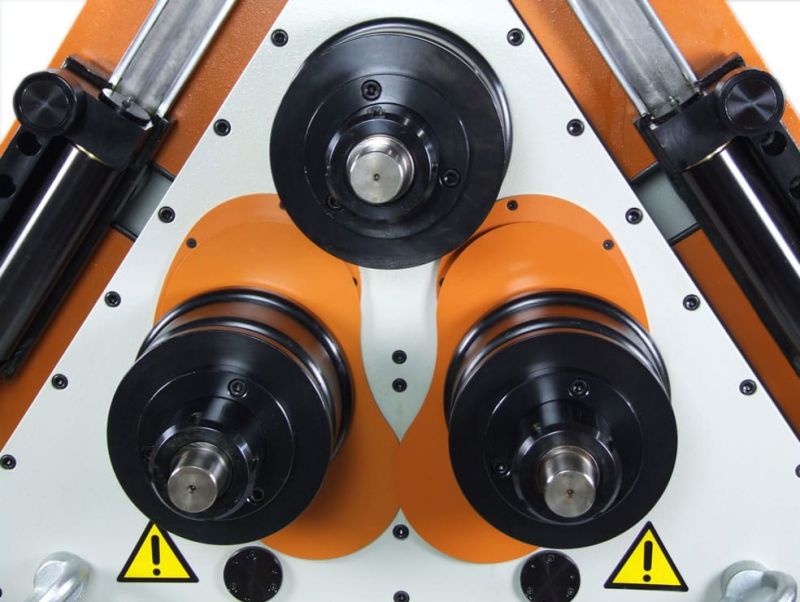

• The R-H85 is considered a double pinch roll bender because the top roll is fixed and the two bottom rolls run on independent hydraulic cylinders with encoders that communicate to the DRO programmers for exact positioning of each roll.
• The double pinch design helps minimise those money wasting pieces of straight that are commonly found at the start and finish of bends by allowing the operator to pre and post-bend the material.
• The R-H85 is capable of bending up to 3" schedule 40 pipe and 3-3/8" x 3-3/8" x 1/4" angle iron.
• It is built to last using heavy steel plate that is bolted and welded for further structural strength, allowing for no flex at full capacity.
• This angle bending roll comes with an industrial-grade hydraulic transmission that drives all three rolls.
• The same hydraulic system controls the movement of the angle lateral guide-rolls as well.
• These rolls help keep the material from twisting while being bent.

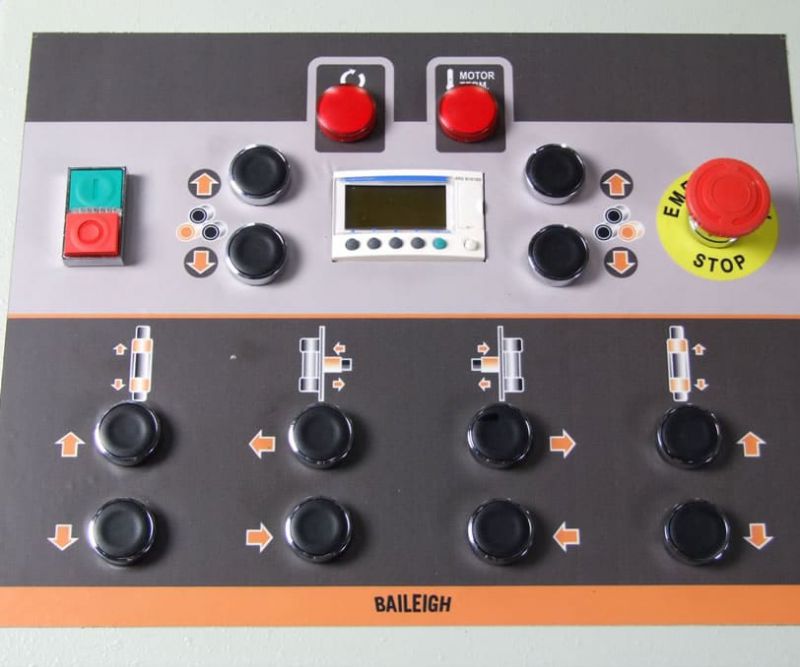

• The portable operator pedestal controls all movement of the machine, and the integrated digital readout shows positioning of the bottom rolls.
• There is also a stop that can be set for each roll for repeatability when doing production runs.
• Foot pedal operation
• 101mm Ø 3mm round tube capacity
• Double pinch
• Triple driven rolls

• Item Number R-H85
• Country of Manufacture Portugal
• Driven Rolls 3
• Roll Adjustment Hydraulic
• Pipe Capacity Size: 89 (5.4) mm / Min. Dia.: 1
• Round Tube Capacity Size: 101 (3) mm / Min. Dia.: 2
• Square Tube Capacity Size: 70 (4) mm / Min. Dia.: 2
• Solid Round Capacity Size: 60 mm / Min. Dia.: 1
• Flat Bar Easy Way Size: 127(25.5) mm / Min. Dia.: 609 mm
• Flat Bar Hard Way Size: 101 (20) mm / Min. Dia.: 2
• Angle Iron Capacity Size: 85 (6.3) mm / Min. Dia.: 1
• Shaft Diameter 80 mm
• Upper Roll Dia. 245 mm
• Lower Roll Dia. 245 mm
• Speed 5.2 rpm.
• Motor 10.5 hp
• Pinch Double
• Digital Readout Yes
• Power 220V / 3-phase
• Shipping Weight 1610 kgs.
• Material Type All Specs based on 60,000 PSI (42 Kg/mm 2) Tensile Strength – Mild Steel.
• *Optional Tooling Some applications may require optional tooling. Please contact a Technical Sales Specialist at Baileigh Industrial with specific application details.
• Shipping Dimensions (Inches) 1524 x 1524 x 1727 mm
