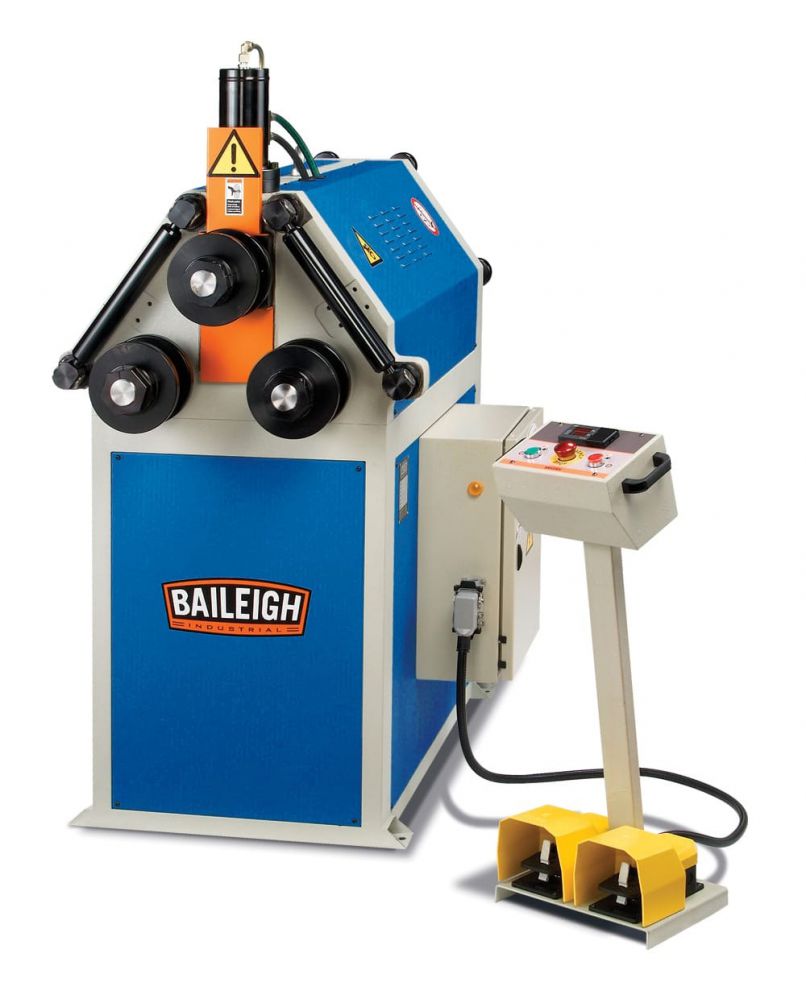

Baileigh R-H55 Hydraulic Roll Bender

Baileigh R-H55 Hydraulic Roll Bender

The Baileigh Industrial R-H55 angle roller is perfect for bending round tube and pipe, sections, bar, and angle iron into large sweeping radii.

• This machine uses three driven rolls that are powered by a 400 volt, three phase, 5hp motor with a direct drive transmission that offers enough power to roll 4 round tubing with a .083 wall thickness.
• In order to achieve capacity like this, the R-H55 is built from a heavy steel plate that is mounted on a fully welded steel housing.
• Like all section benders from Baileigh Industrial, this one can be operated in the vertical mode for smaller diameters and laid on its back for horizontal bending when larger diameters are required.
• The R-H55 angle roller has industrial-grade hydraulics for positioning the top roll.
• The DRO feature on this machine makes for easy repeatability, which is very important for those multiple piece production runs.
• The R-H55 comes standard with a set of segment rolls, lateral roll guides for coiling, and an easy-to-use control station.
• Foot pedal operation
• 70mm Ø 3mm round tube capacity
• Single pinch
• Triple driven rolls

• Item Number R-H55
• Country of Manufacture Portugal
• Driven Rolls 3
• Roll Adjustment Hydraulic
• Pipe Capacity Size: 73 (5) mm / Min. Dia.: 1
• Round Tube Capacity Size: 101 (2.1) mm / Min. Dia.: 1
• Square Tube Capacity Size: 70 (2.1) mm / Min. Dia.: 1
• Solid Round Capacity Size: 50 mm / Min. Dia.: 711 mm
• Flat Bar Easy Way Size: 127(19) mm / Min. Dia.: 711 mm
• Flat Bar Hard Way Size: 89 (17) mm / Min. Dia.: 711 mm
• Angle Iron Capacity Size: 76 (6.3) mm / Min. Dia.: 914 mm
• Shaft Diameter 55 mm
• Shaft Center Distance 242 mm (lower rolls)
• Shaft Center Distance Lower Rolls 301 mm
• Upper Roll Dia. 148 mm
• Lower Roll Dia. 148 mm
• Speed 11 rpm.
• Motor 3 hp
• Pinch Single
• Digital Readout Yes
• Power 220V / 1-phase
• Shipping Weight 538 kgs.
• Material Type All Specs based on 60,000 PSI (42 Kg/mm 2) Tensile Strength  Mild Steel.
• *Optional Tooling Some applications may require optional tooling.
• Speeds 5773
• Shipping Dimensions (Inches) 1524 x 1118 x 1727 mm
