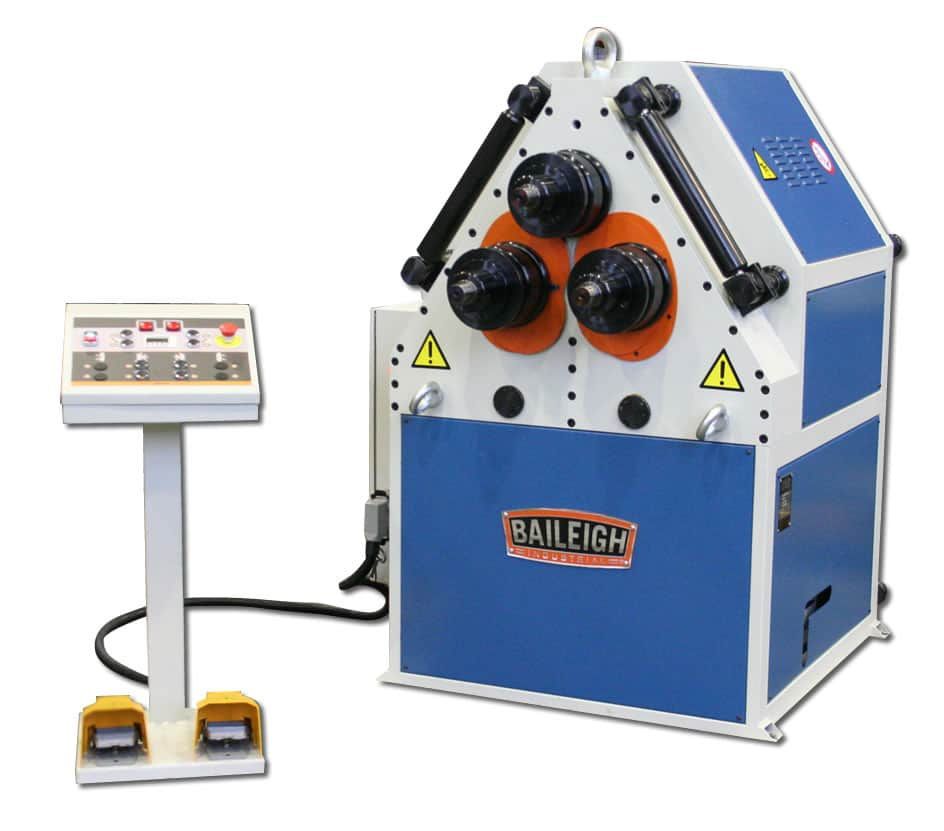

Baileigh R-H45 Hydraulic Roll Bender

Baileigh R-H45 Hydraulic Roll Bender

Baileigh Industrial's R-H45 roll bender is the perfect for bending large radii in materials up to 2" square x .120" wall, or 2" schedule 40 pipe and much more.

• This machine only requires 220 volts of single phase power, so it is the perfect machine for any fabrication shop and can also be brought onto most job sites.
• The R-H45 roll bender come with a heavy-duty steel plate frame, connected to a large industrial motor and transmission that turns all three rolls.
• The framework is fully welded and allows the roll bender to be tipped backward into the horizontal position when rolling larger diameters.
• Like all Baileigh Industrial powered roll benders, this machine comes with an inverter drive that offers soft start ups for long motor life and overload protection.
• The R-H45 comes with industrial-grade hydraulics that powers the downward and upward position of the top roll.
• The R-H45 is programmable for the upward and downward position, allowing for accurate repeatable bends every time.
• Our hydraulic benders come standard with the segment rolls, lateral roll guides for coiling, operator pendant that houses operator buttons, DRO programmer and much more.
• Foot pedal operation
• 60mm Ø 3mm round tube capacity
• Single pinch
• Triple driven rolls
