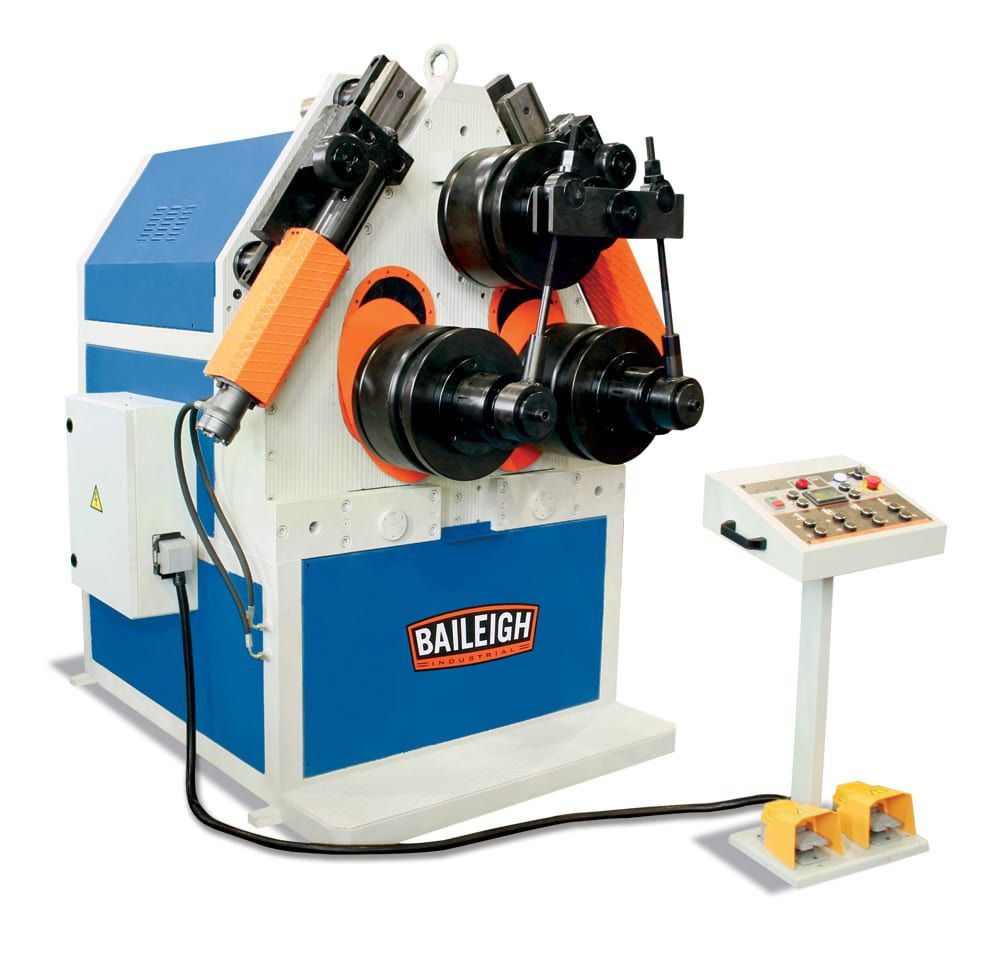

The R-H150 hydraulic roll bender is the largest roll bender that Baileigh Industrial holds in stock. This massive machine has the capacity to roll 6.25" round tubing and 4.75" x 4.75" x 1/2" angle iron. The R-H150 has the ability to save time and money in your shop.

• The R-H150 is a double pinch style machine which means that the operator can pre-bend and post bend the material which saves valuable production time, material, and allows for tight rolling by eliminating the wasted length of straight associated with most roll benders.
• Pre and post bending is accomplished by two hydraulic cylinders connected to the bottom two rolls.
• The positions of these rolls are displayed on a digital readout that has the ability to set stops for each shaft. This helps with repeatability when doing production runs.
• The R-H150 has a heavy-duty steel plate frame that is bolted and welded to ensure no flex when bending at full capacity.
• This ring roller can be operated in vertical and horizontal positions depending on what size material needs to be rolled.
• A movable operator control pendant houses all control buttons including the digital readout for the roll positions and foot pedals for direction of operation.
• Many other tooling sets are available for the R-H150.
• Foot pedal operation
• 159mm Ø 4mm wall round tube capacity
• Single pinch
• Triple driven rolls

• Item Number R-H150
• Country of Manufacture Portugal
• Driven Rolls 3
• Roll Adjustment Hydraulic
• Pipe Capacity Size: 140 (5) mm / Min. Dia.: 1
• Round Tube Capacity Size: 159 (3) mm / Min. Dia.: 2
• Square Tube Capacity Size: 102 (5) mm / Min. Dia.: 2
• Solid Round Capacity Size: 86 mm / Min. Dia.: 914 mm
• Flat Bar Easy Way Size: 200 (50) mm / Min. Dia.: 1
• Flat Bar Hard Way Size: 139 (28) mm / Min. Dia.: 2
• Angle Iron Capacity Size: 120 (6.3) mm / Min. Dia.: 1
• Shaft Diameter 120 mm
• Lower Roll Dia. 390 mm
• Speed 3.25 rpm.
• Motor 20 hp.
• Pinch Double
• Digital Readout Yes
• Power 400V / 3-phase
• Shipping Weight 4717 kgs.
• Material Type All Specs based on 60,000 PSI (42 Kg/mm 2) Tensile Strength  Mild Steel.
• *Optional Tooling Some applications may require optional tooling.
• Shipping Dimensions (Inches) 2032 x 1702 x 2083 mm
