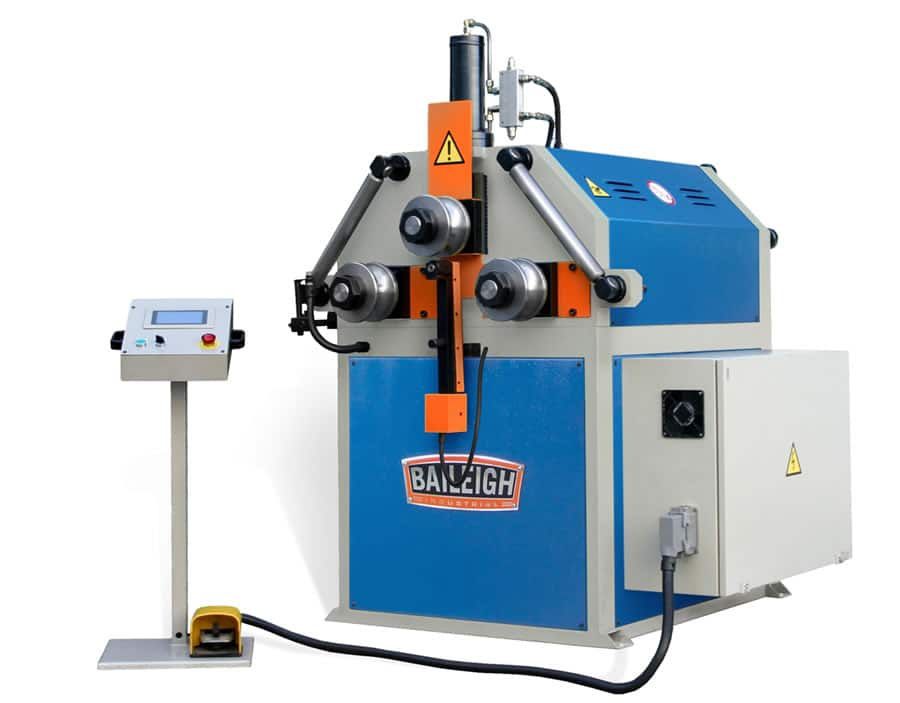

Baileigh R-CNC55 CNC Roll Bender

Baileigh R-CNC55 CNC Roll Bender

The R-CNC55 roll bender from Baileigh Industrial will allow your shop to make more money with less scrap. Simply input the desired radii of the finished product, load the material, press go, and voila, out comes the finished product.

• This CNC roll bender has three driven rolls and can be operated in a vertical or horizontal position.
• The setup of the R-CNC55 roll bender is very easy because of its integrated software.
• The software was designed especially for CNC roll bending applications, so it is extremely intuitive and extremely easy to operate and program through the use of its touchscreen operator pedestal.
• The top roll is adjusted hydraulically and the bottom rolls have a unique mechanical side-to-side adjustment for less wasteful straight at the beginning and end of bends.
• The R-CNC55 comes with a unique digital measuring device for fast calibration, but will also measure the length of bend and the radius of each bend automatically, ensuring the most accurate roll bending ever.
• The frame of the R-CNC55 roll bender is made from extremely rigid plate steel, electro-welded for further structural strength, allowing for no flex at full capacity.
• Like the rest of the Baileigh Industrial roll bender family, the R-CNC55 is made from only the highest quality components, ensuring a long and productive life.
• 40 programs
• 24 different parts (segments) per program
• 75 profile calibrations
• 2 Speeds (rotation of the rolls)
• 4 Speeds (top roll movement)
• Top roll movement can be progressive* or direct**.
• *Progressive - Top roll go to position with profile moving.
• **Direct - Top roll go to position with profile stopped.
• 73mm dia' 5mm wall round tube capacity
• Single pinch
• CNC - touch screen
• Triple driven roll
