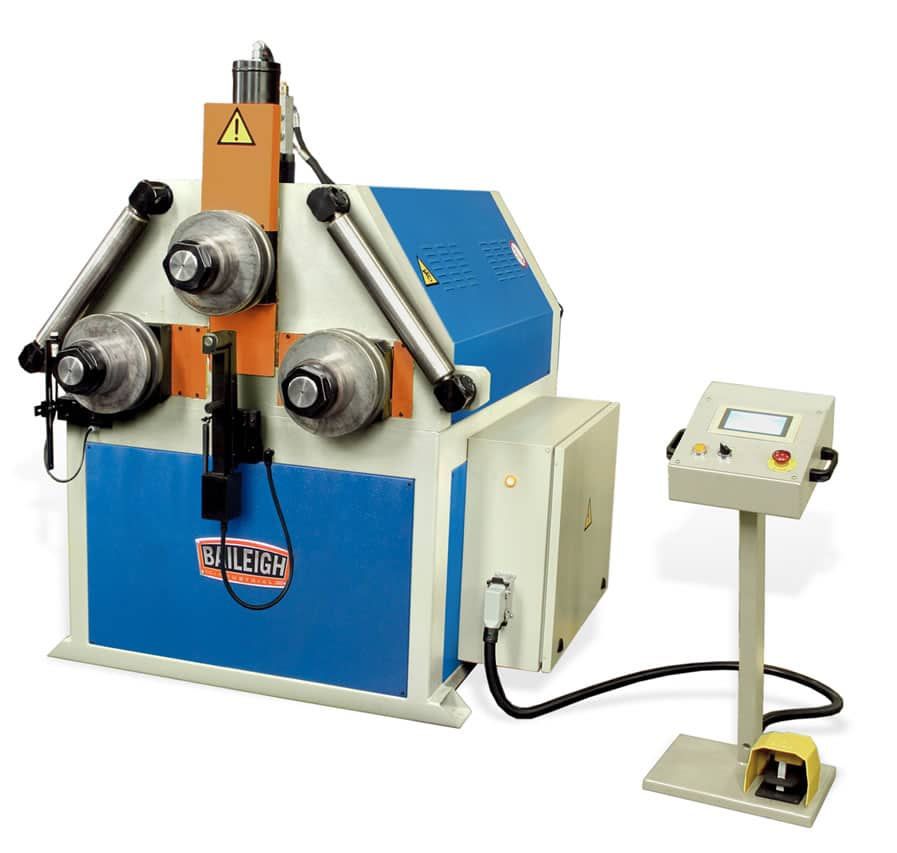

Baileigh R-CNC120 CNC Roll Bender

Baileigh R-CNC120 CNC Roll Bender

With bending capabilities far beyond average this CNC roll bender is ideal for structural applications, playground manufactures, shipyard builders, etc, that want high-production with minimal waste.

• The R-CNC120 computer controlled roll bender from Baileigh Industrial can bend up to 4.75 tube and has the ability to bend multiple radii on a single section.
• Working together with a handheld calibration device and cutting edge CNC technology, the R-CNC120 is capable of automatically producing a desired radius on its own.
• Unlike other CNC roll benders, the integrated software on the Baileigh Industrial line of CNC profile benders is extremely intuitive and easy to operate and program.
• The programming of the R-CNC120 is done through the use of its touchscreen operator pedestal.
• The top roll of the R-CNC120 roll bender is adjusted hydraulically, and the bottom rolls have a unique mechanical side-to-side adjustment for less length of straight at the beginning and end of the bend.
• Built from only the best components the R-CNC120 is built to last.It has a robust 9hp motor that is driven by an inverter which allows speeds from 0-8rpm.
• The frame of the R-CNC120 is built using structural-grade steel plate for the ultimate in rigidity, which is needed for accuracy in CNC production.
• 40 programs
• 24 different parts (segments) per program
• 75 profile calibrations
• 2 Speeds (rotation of the rolls)
• 4 Speeds (top roll movement)
• Top roll movement can be progressive* or direct**
• *Progressive - Top roll go to position with profile moving.
• **Direct - Top roll go to position with profile stopped.
• Foot pedal operation
• 114mm dia' 6mm round tube capacity
• Single pinch
• CNC - touch screen
