Baileigh HSP-75A Pneumatic Workshop Press
Product Code: BAI/HSP-75A
Brand: Baileigh
In Offsite Stock - Delivery in 4 to 5 Days
£4,910.40 Inc. VAT
£4,092.00 Exc. VAT
✗ COLLECTION
✓ DELIVERY
Please call to check stock availability for larger quantities

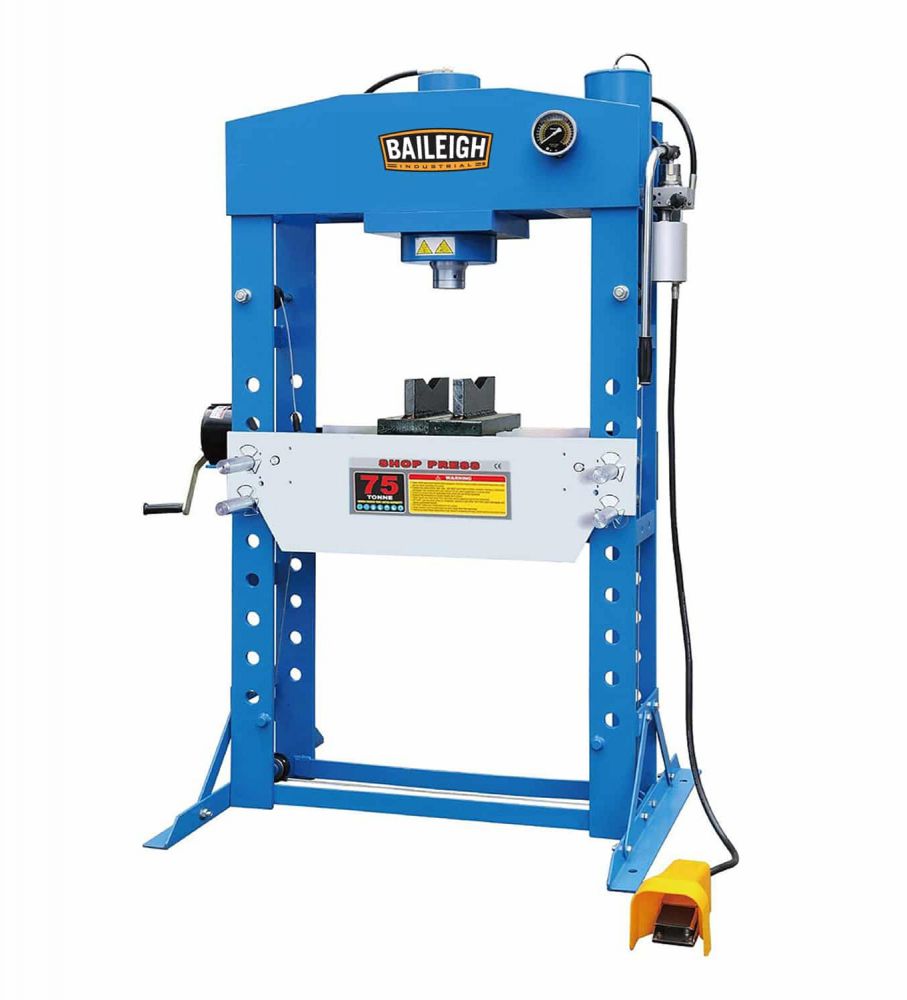

Baileigh HSP-75A Pneumatic Workshop Press
Key Features
Looking for a little more power from your shop press? The Baileigh Industrial HSP-75A pneumatic shop press is the perfect answer. This 75 ton press features a fully welded main frame to reduce flex, allowing the operator to use all 75 tons that are available from the HSP-75A.
- The large 230mm diameter cylinder of this press features a 250mm stroke.

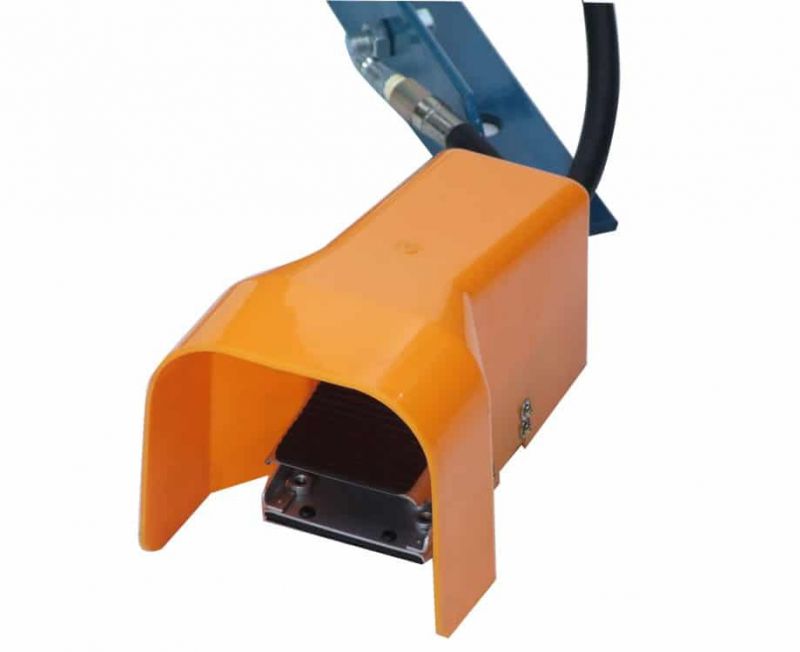

- Yet, the operation of the HSP-75A press is simple and controllable because of its integrated foot pedal.
- For even more control, the operator may chose to use the manual hand pump that is located on the side of the pneumatic press.

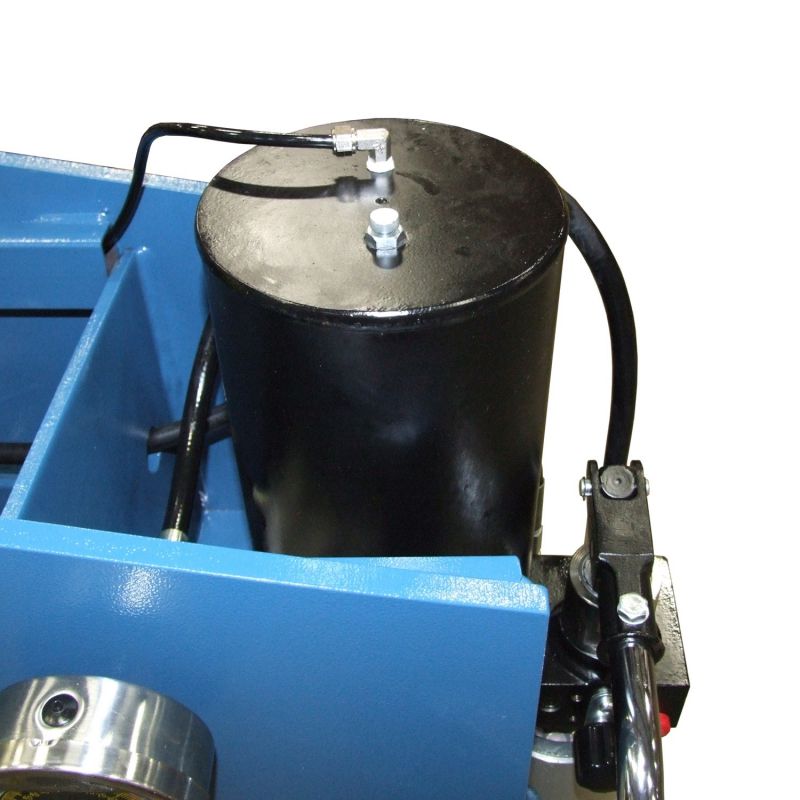

- Industrial grade hydraulics are standard on the HSP-75A to ensure years of useful operation.
- Just hook up to a compressor that can put out between 90 and 115 psi.

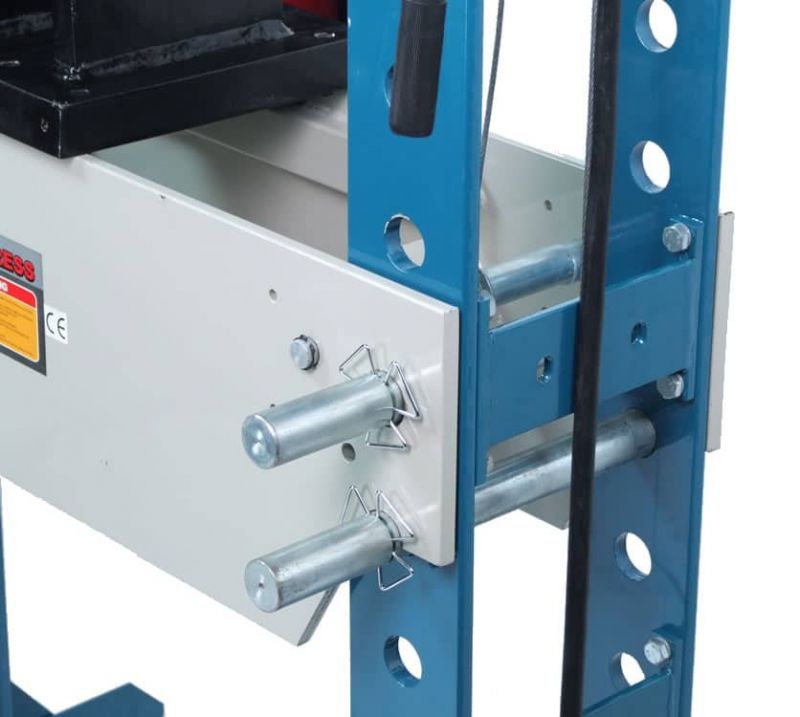

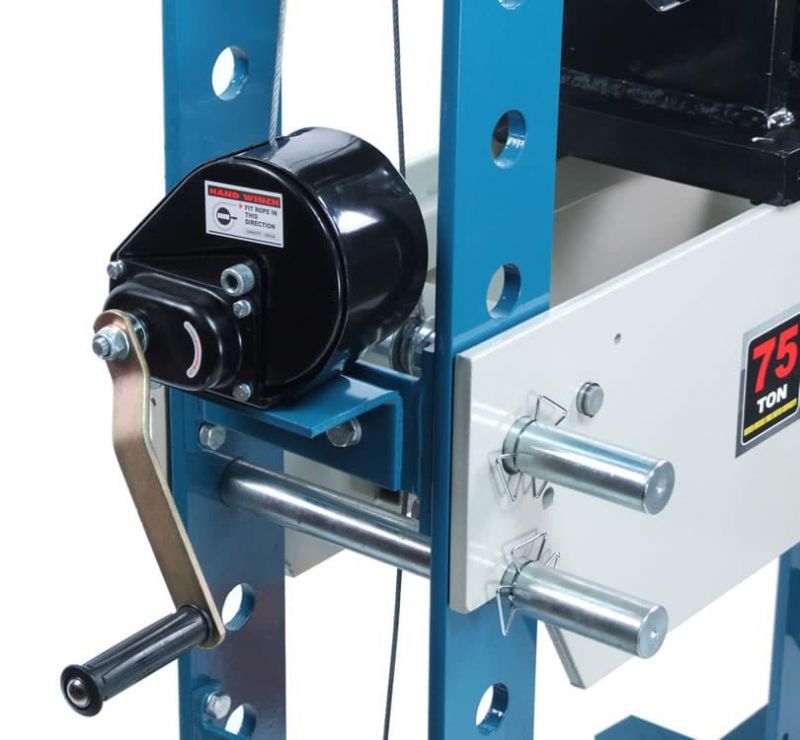

- The Baileigh Industrial HSP-75A shop press also has a unique feature that allows the operator to lift and lower the working table with the help of a winch and pulley system. This will save time as well as the back of the operator when table relocation is needed!

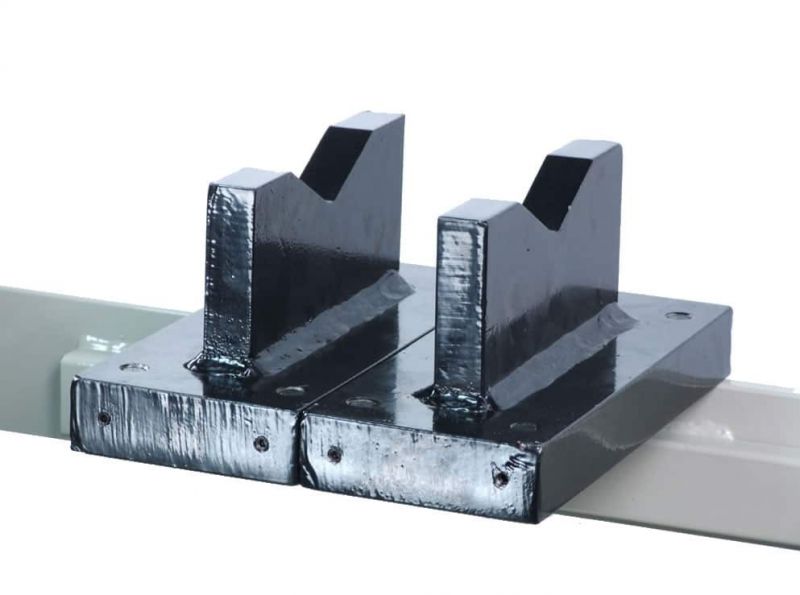

- TheHSP-75A pneumatic press also comes with V-blocks.
- Pneumatic operation
- 67 metric tons of pressure

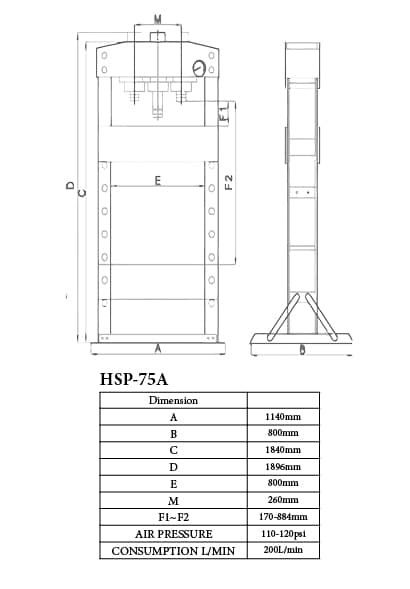

Technical details
- Item Number HSP-75A
- Piston Head Diameter 76.2 mm
- Movable Cylinder Yes
- Maximum Capacity 67 ton
- Cylinder Stroke 249 mm
- Cylinder Diameter 228 mm
- Power Pneumatic / Manual
- Shipping Weight 590 kgs.
- Shipping Dimensions (Inches) 2108 x 1118 x 610 mm
