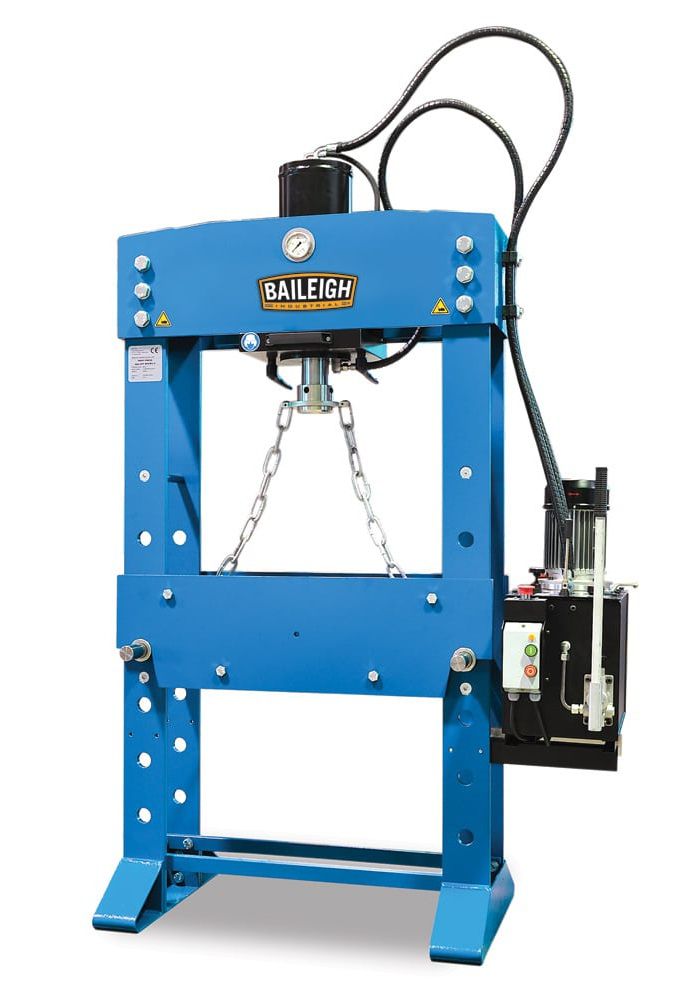

Baileigh HSP-66M Hydraulic Workshop Press

Baileigh HSP-66M Hydraulic Workshop Press

This heavy-duty press is built using only the best quality components and craftsmanship. A fully welded 3/8 plate steel frame will take more than the 66 tons that the industrial-grade hydraulic system can throw at it.

• Weighing is at just over 685kgs, you know that this press is made to last.
• The robust 2hp, 400 volt, three phase motor has two working speeds; a rapid descent speed and a slow approach speed.
• There is also an option for the operator to use a hand pump for even more control.
• Once the job is done, the HSP-66M H-frame press has an automatic cylinder return.
• The table on the HSP-66M is nothing short of remarkable. Fabricated to exacting tolerances, the table features two support pins that are 2 in diameter and allow the table to be locked in at the correct working height.
• The HSP-66M also includes lifting chains to help with the placement of the table.
• Other features of the HSP-66M H-frame press include a pressure regulator, ram cap, chrome piston, head screw, and a cylinder that is moveable left or right within the framework itself.
• Hydraulic operation
• 60 metric tons of pressure
• Movable cylinder design

• Item Number HSP-66M
• Country of Manufacture Netherlands
• Return Speed 12.7 mm / sec.
• Maximum Pressure 235 bar
• Motor 1.5 kW
• Piston Head Diameter 100 mm
• Pump Speed .871 / 3.619 / gal/min.
• Oil Capacity 30 liters
• Working Width .086″ / sec.
• System Oil Capacity 8 liters
• Lowering Speed .362″ / sec.
• Maximum Capacity 60 ton
• Cylinder Stroke 400 mm
• Cylinder Movable Yes
• Cylinder Diameter 209 mm
• Rpm 3000
• Power 400V / 3-Phase
• Shipping Weight 685 kgs.
• Shipping Dimensions (Inches) 1150 x 900 x 2170 mm
