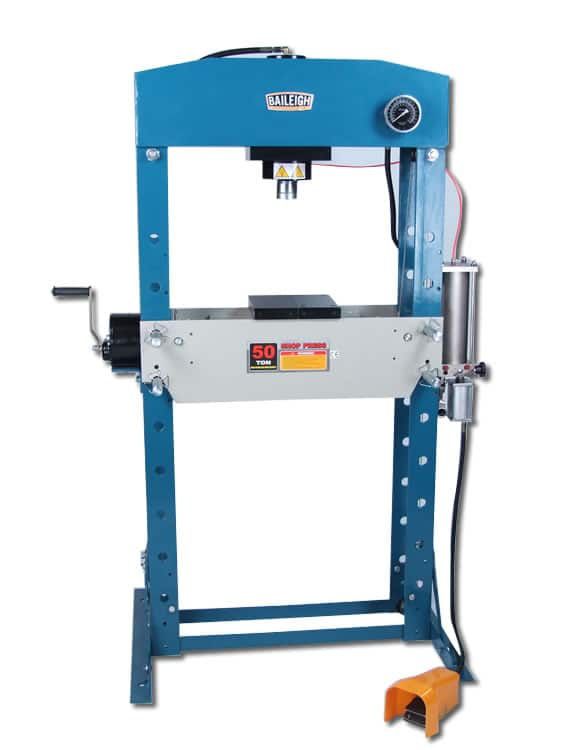

Baileigh HSP-50A Pneumatic Workshop Press

Baileigh HSP-50A Pneumatic Workshop Press

The H-frame press that is most commonly found in today's fabrication, welding, and machine shops is the 50 ton upright. Naturally Baileigh Industrial has a high-quality one to fit their needs as well.

• The Baileigh Industrial HSP-50A air operated shop press is the perfect complement to any shop.
• This press features a fully welded main frame for maximum rigidity allowing the operator to use all 50 tons that are available from the HSP-50A.
• The large 6 diameter cylinder of the HSP-50A features a 200mm stroke.
• Yet, the operation of the HSP-50A press is simple and controllable through the use of the included foot pedal.

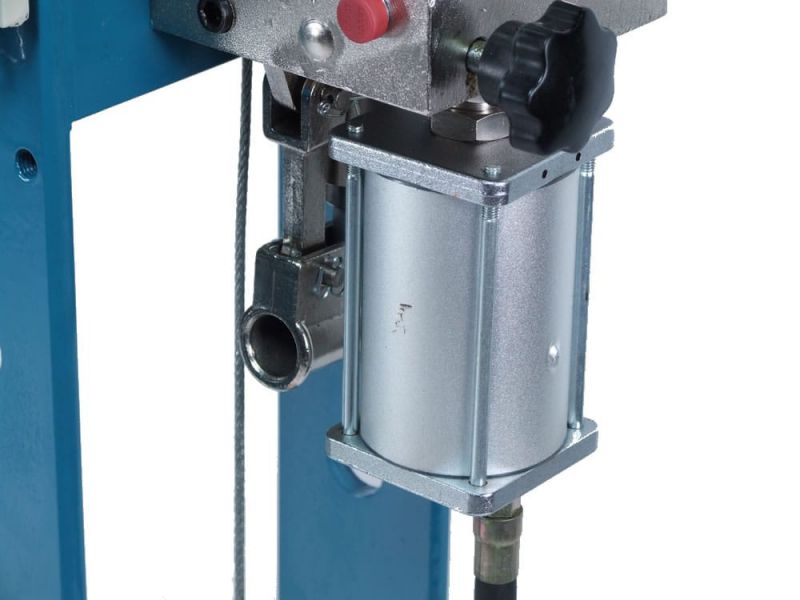

• For even more control, the operator may chose to use the manual hand pump that is located on the side of the air operated shop press.
• All the hydraulics on this machine are industrial grade to ensure years of useful operation.

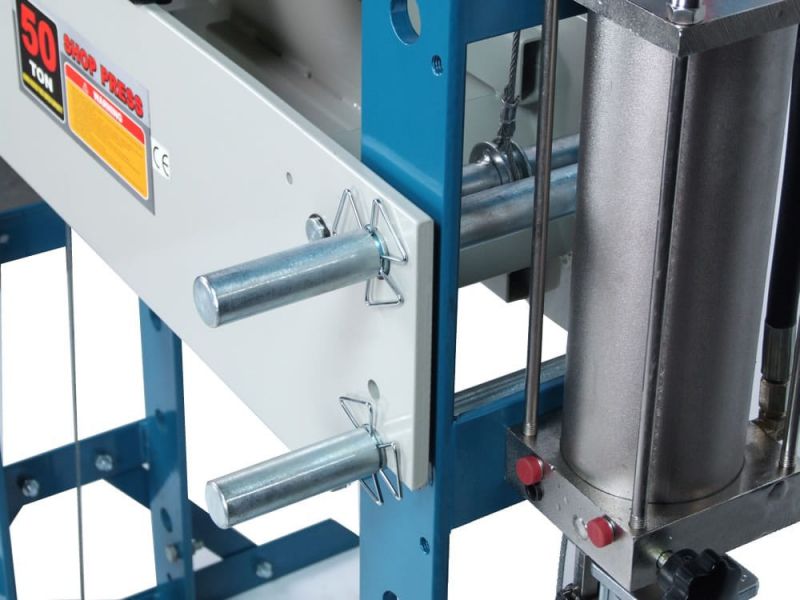

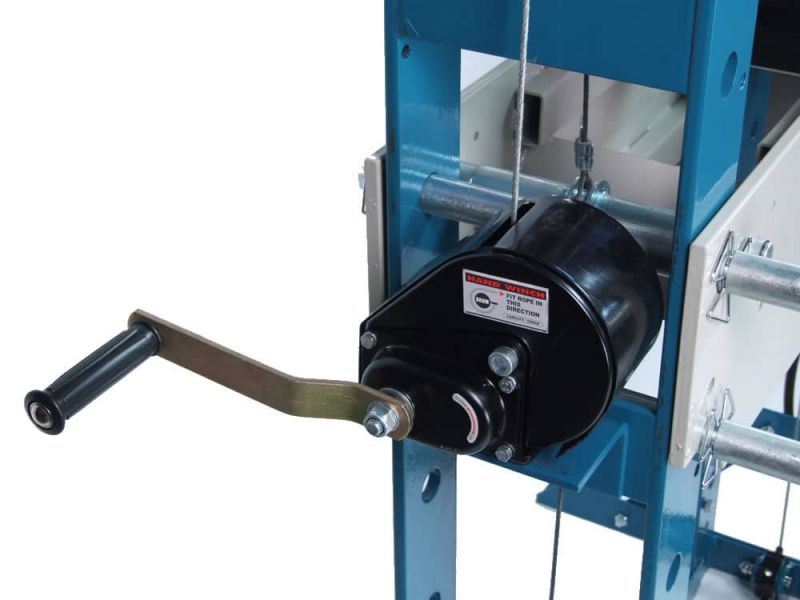

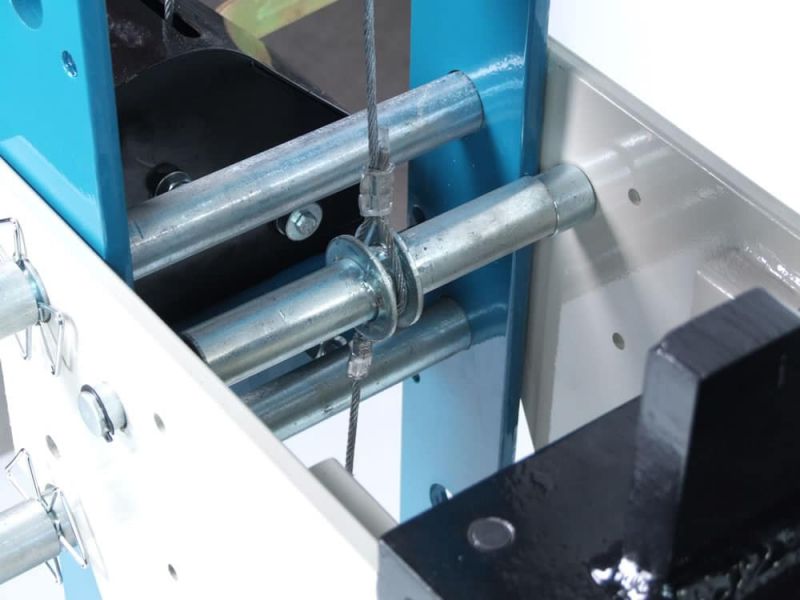

• The Baileigh Industrial HSP-50A shop press also has a unique feature that allows the operator to lift and lower the working table with the help of a winch and pulley system.
• This will save time as well as the back of the operator when table relocation is needed.

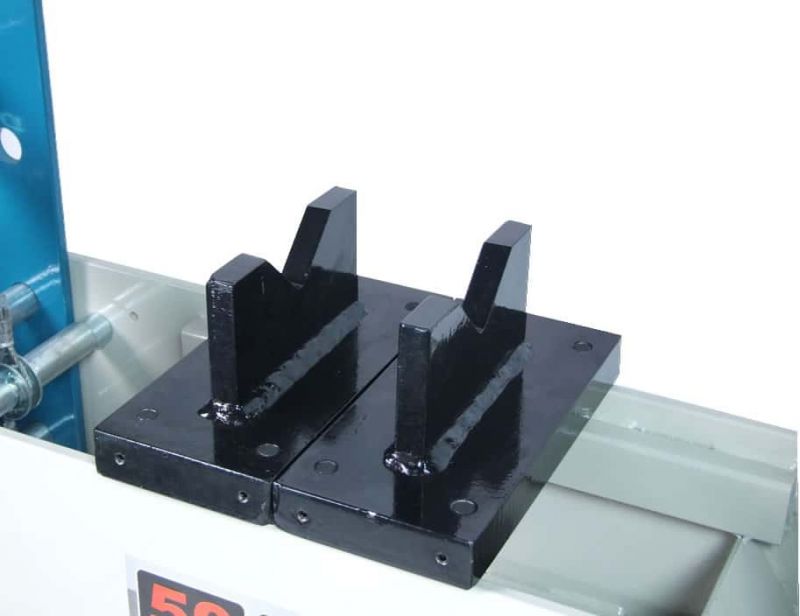

• The HSP-50A also comes with its own vee blocks.
• Pneumatic operation
• 45 metric tons of pressure

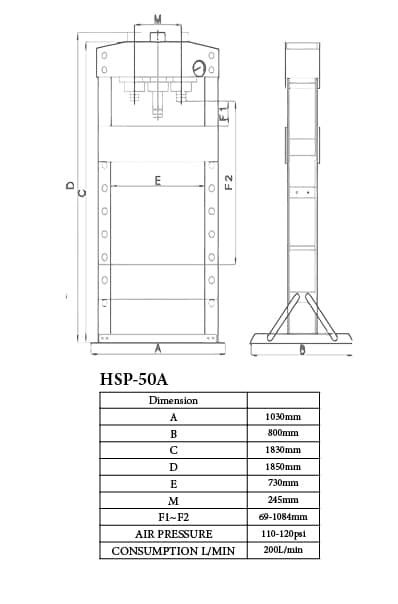

• Item Number HSP-50A
• Piston Head Diameter 70 mm
• Movable Cylinder Yes
• Maximum Capacity 45 ton
• Cylinder Stroke 200 mm
• Cylinder Diameter 152 mm
• Power Pneumatic / Manual
• Shipping Weight 365 kgs.
• Shipping Dimensions (Inches) 2108 x 1118 x 610 mm
