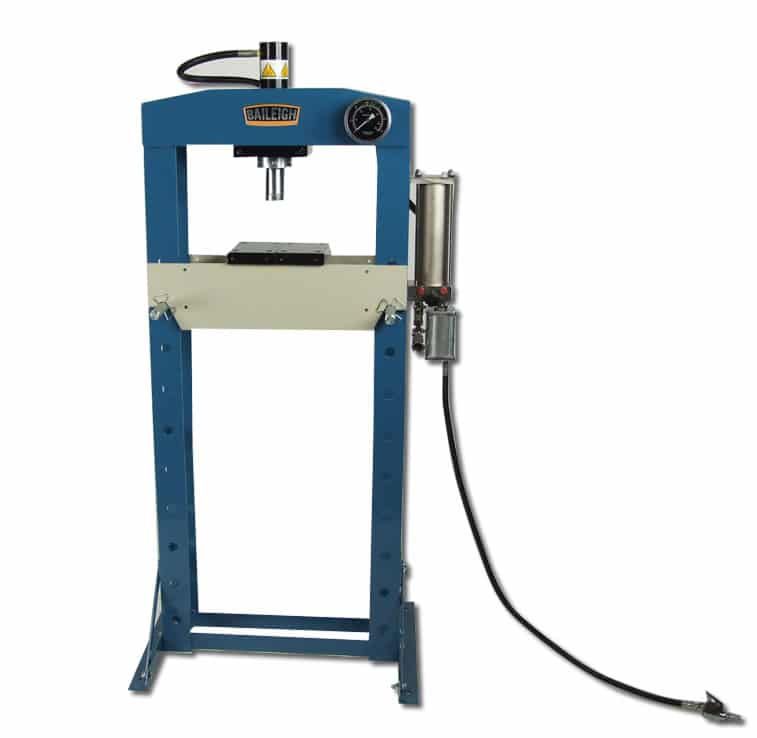

Baileigh HSP-20A Pneumatic Workshop Press

Baileigh HSP-20A Pneumatic Workshop Press

Looking for a high quality, inexpensive shop press? Baileigh Industrial's line of pneumatic H-frame presses fits that description and the first in the pneumatic range is the HSP-20A.

• The HSP-20A features an extremely ridged, fully welded main frame, allowing the operator to use the full 20 tons capacity with no worries.
• Along with its fully welded frame, the HSP-20A shop press uses industrial-grade hydraulic components for years of care free use.

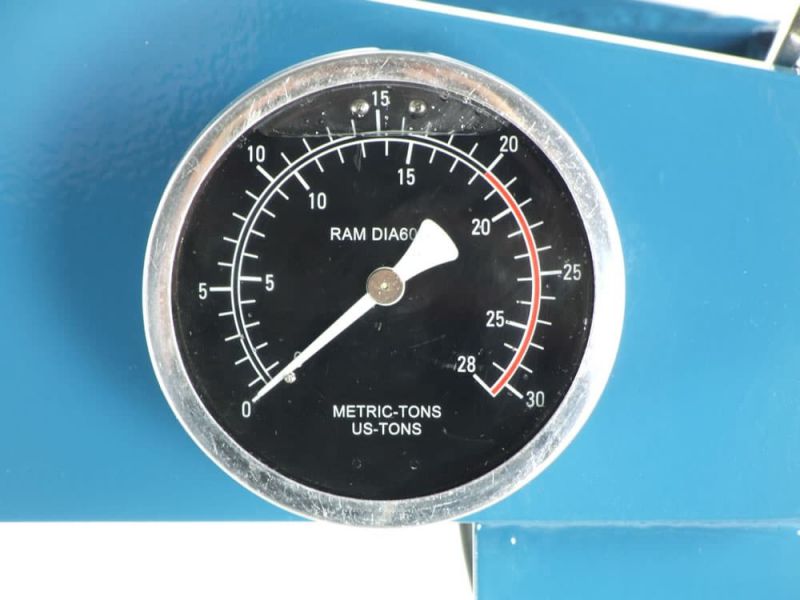

• A pressure regulator and gauge are also included.

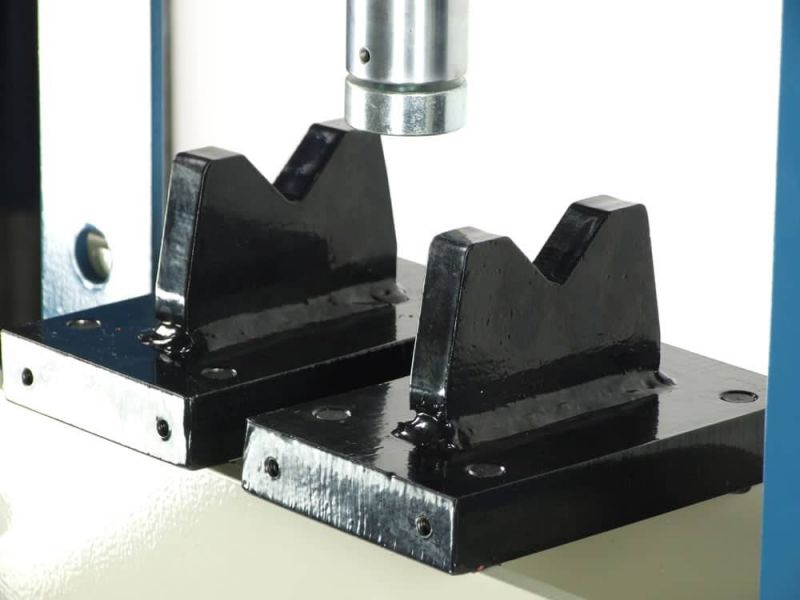

• The HSP-20A pneumatic H-frame press also comes with its own set of vee block, making this press even greater value.
• The working with of the HSP-20A is a full 483mm and the cylinder stroke is 190mm, these facts coupled with an easily adjustable table, complete this versatile shop press.
• The HSP-20A, like all of Baileigh Industrial's shop presses, is typically in stock for quick deliveries.
• Pneumatic operation
• 18 metric tons of pressure

• Item Number HSP-20A
• Piston Head Diameter 50.8 mm
• Movable Cylinder Yes
• Maximum Capacity 18 ton
• Cylinder Stroke 190.5 mm
• Cylinder Diameter 76.2 mm
• Power Pneumatic / Manual
• Shipping Weight 145 kgs.
• Shipping Dimensions (Inches) 1727 x 1118 x 610 mm
