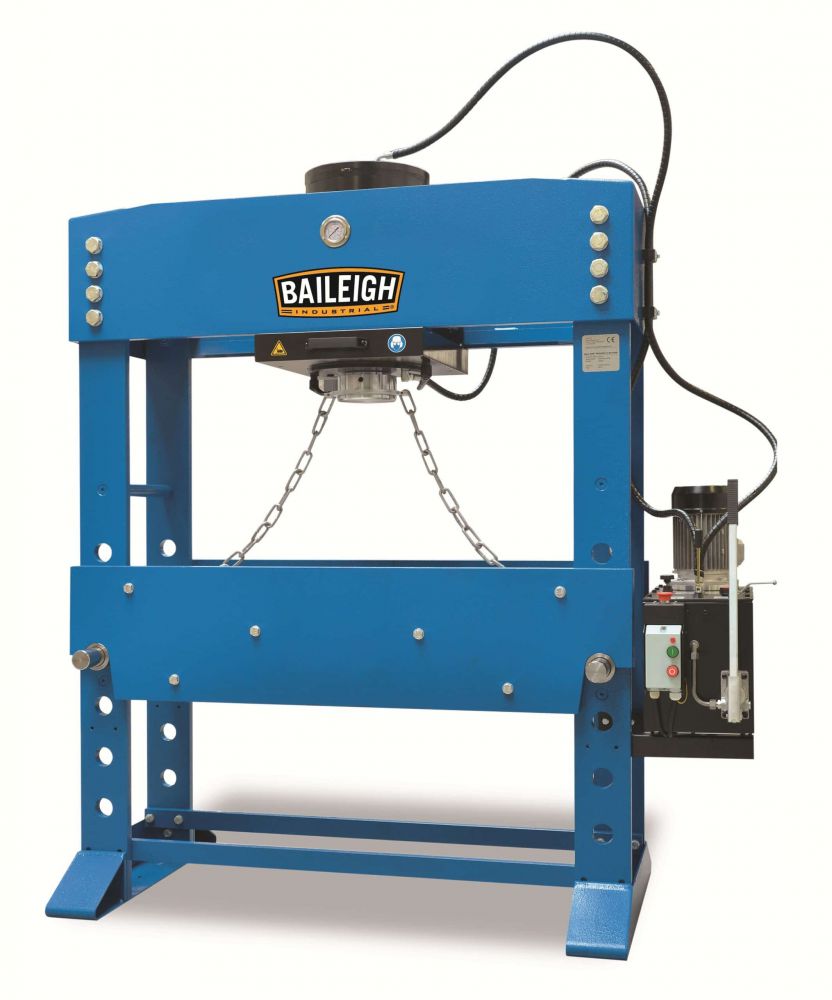

Baileigh HSP-200M Hydraulic Shop Press

Baileigh HSP-200M Hydraulic Shop Press

Our most powerful hydraulic shop press, the HSP-200M-HD can deliver 200 tons of pressure. A .375 cast steel framework makes this press one of the best values on the market.

• 61.75 working width.
• 11-diameter cylinder with 11.8 stroke.
• 10 hp motor runs on 400-volt 3-phase power.
• Stand-alone hydraulic system with a piston-style pump.
• Cylinder can move left and right within the frame, ideal for off-center projects.
• Pressure gauge comes standard.
• Includes a 2-piece V-block set.
• Baileigh Industrial covers this hydraulic H-frame press with a 1-year parts warranty and Lifetime technical support.
• Hydraulic operation
• 200 metric tons of pressure
• Movable cylinder design

• Item Number HSP-200M
• Country of Manufacture Netherlands
• Maximum Pressure 277.5 bar
• Motor 3 kW
• Piston Head Diameter 150 mm
• Pump Speed 1.5 / 5.17 gal/min.
• Oil Capacity 30 liters
• Working Width 1200 mm
• System Oil Capacity 12 liters
• Lowering Speed .362″ / sec.
• Maximum Capacity 100 ton
• Cylinder Stroke 400 mm
• Cylinder Movable Yes
• Cylinder Diameter 254 mm
• Rpm 3000
• Power 400V / 3-Phase
• Shipping Weight 2150 kg.
• Shipping Dimensions (Inches) 2100 x 1300 x 250 mm
