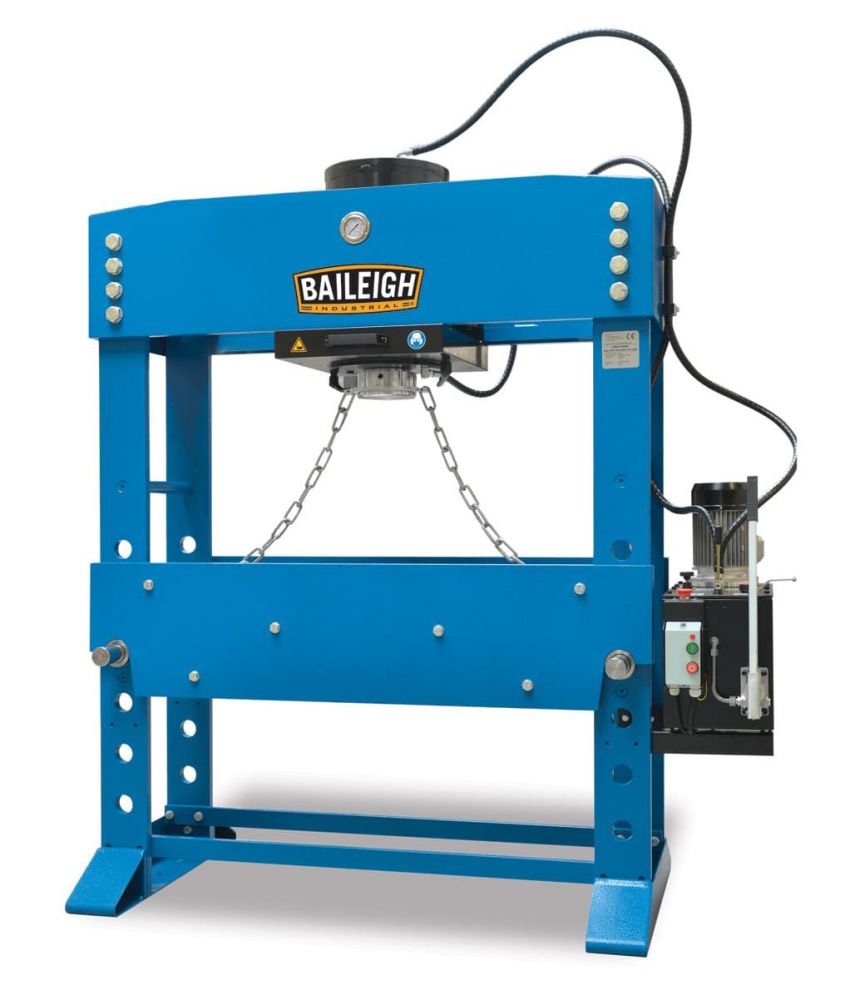

Baileigh HSP-176M Hydraulic Workshop Press

Baileigh HSP-176M Hydraulic Workshop Press

Do you have something that requires a lot of tonnage to press? If so the HSP-176M from Baileigh Industrial might just be your perfect press.

• Built to last for years in any environment, the HSP-176M heavy-duty shop press combines all the knowledge that Baileigh Industrial gained from our other presses.
• In order to handle a full 176 tons of pressure put out by its industrial-grade hydraulic system, the frame on the HSP-176M has to be strong, so it is built from 3/8 steel plate and fully welded for structural integrity.
• The HSP-176M uses a 4hp, 400 volt, three phase motor to run the industrial-grade hydraulic system.
• The hydraulic system is a two speed system that has rapid advance speed and slow approach speed making operation a breeze.
• The operator can chose operate the ram in automatic (motorised) or manual (hand-pump) for even more control.
• The HSP-176M heavy-duty shop press features an automatic piston return, two speed down movement with pressure regulator, chrome piston, head screw, and a cylinder that is moveable left or right within the framework itself.
• The working table on the HSP-176M has two sets of supports made from 3 round stock to give the most support possible.
• The table also has lifting chains that attach to the ram and allow adjustment of the table height using the motor.
• Hydraulic operation
• 160 metric tons of pressure
• Movable cylinder design

• Item Number HSP-176M
• Country of Manufacture Netherlands
• Return Speed 12 mm / sec.
• Maximum Pressure 283 bar
• Motor 3 kW
• Piston Head Diameter 150 mm
• Pump Speed 1.92 / 7.50 gal/min.
• Oil Capacity 30 liters
• Working Width .090″ / sec.
• System Oil Capacity 17 liters
• Lowering Speed .350″ / sec.
• Maximum Capacity 160 ton
• Cylinder Stroke 400 mm
• Cylinder Movable Yes
• Cylinder Diameter 323 mm
• Rpm 3000
• Power 400V / 3-Phase
• Shipping Weight 1575 kgs.
• Shipping Dimensions (Inches) 1600 x 1100 x 2270 mm
