Baileigh HSP-110M Hydraulic Workshop Press

Baileigh HSP-110M Hydraulic Workshop Press

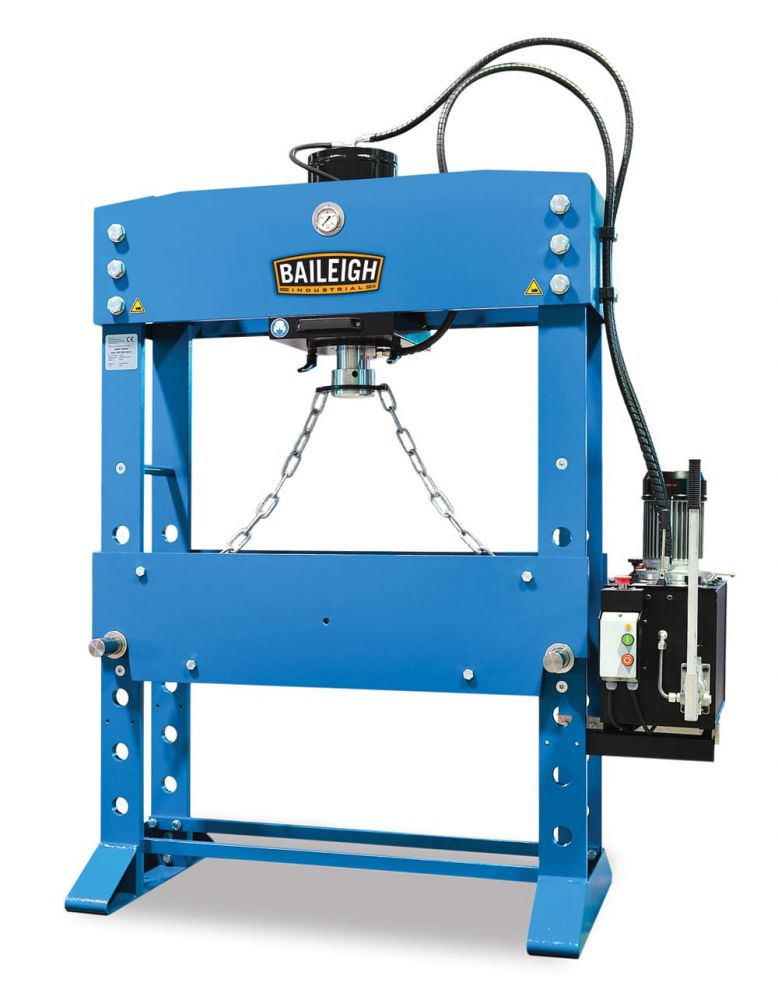

Built with only the best components, the HSP-110M from Baileigh Industrial sets the standard that all other hydraulic presses are measured by.

• The HSP-110M has a 3hp, 400 volt, three phase motor that is able to push all 110 tons of force and not even break a sweat.
• And by using fully welded 3/8 plate steel for the framework, makes this press the most ridged press in its price range.

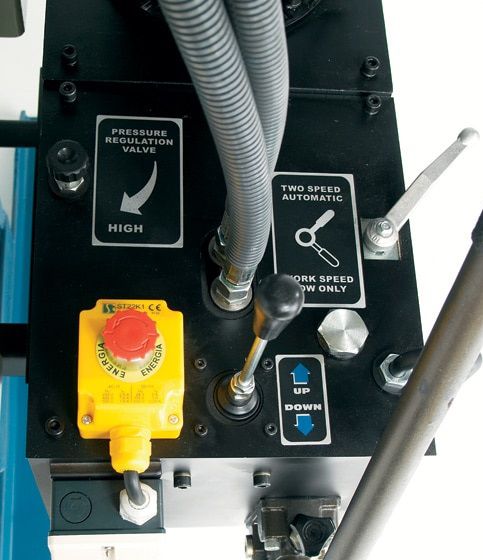

• This press includes an automatic piston return, two speed down movement with pressure regulator, chrome piston, head screw, and a cylinder that is moveable left or right within the framework itself.

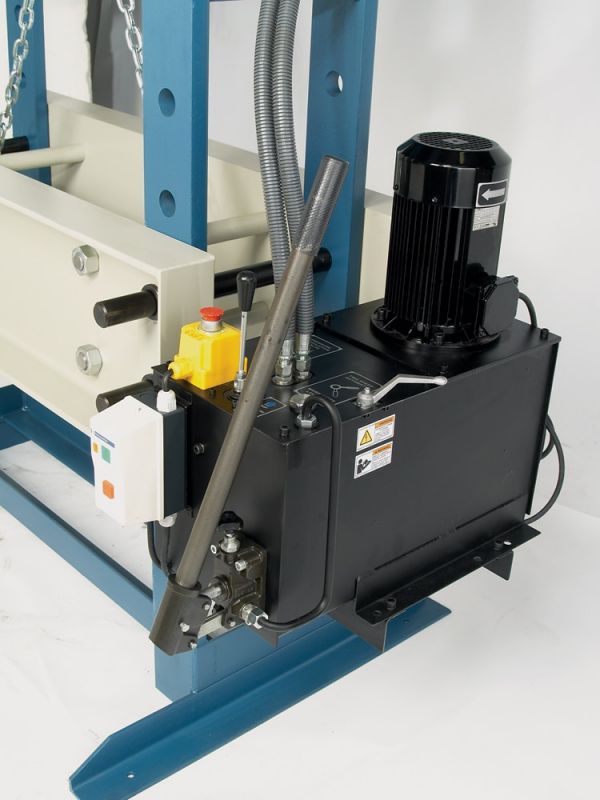

• Operation of the HSP-110M hydraulic press has its option as well, the operator can chose operate the ram automatically (motorised) or manually (hand pump) for even more control.
• Whether it is being used for general assembly, straightening work, or just for pressing bearings in and out of their housings, the HSP-110M is a great choice.
• Hydraulic operation
• 100 metric tons of pressure
• Movable cylinder design

• Item Number HSP-110M
• Country of Manufacture Netherlands
• Return Speed 12.3 mm / sec.
• Maximum Pressure 266 bar
• Motor 2.2 kw
• Piston Head Diameter 120 mm
• Pump Speed 1.5 / 5.17 gal/min.
• Oil Capacity 30 liters
• Working Width .106″ / sec.
• System Oil Capacity 12 liters
• Lowering Speed .362″ / sec.
• Maximum Capacity 100 ton
• Cylinder Stroke 400 mm
• Cylinder Movable Yes
• Cylinder Diameter 254 mm
• Rpm 3000
• Power 400V / 3-Phase
• Shipping Weight 955 kgs.
• Shipping Dimensions (Inches) 1320 x 900 x 2140 mm
