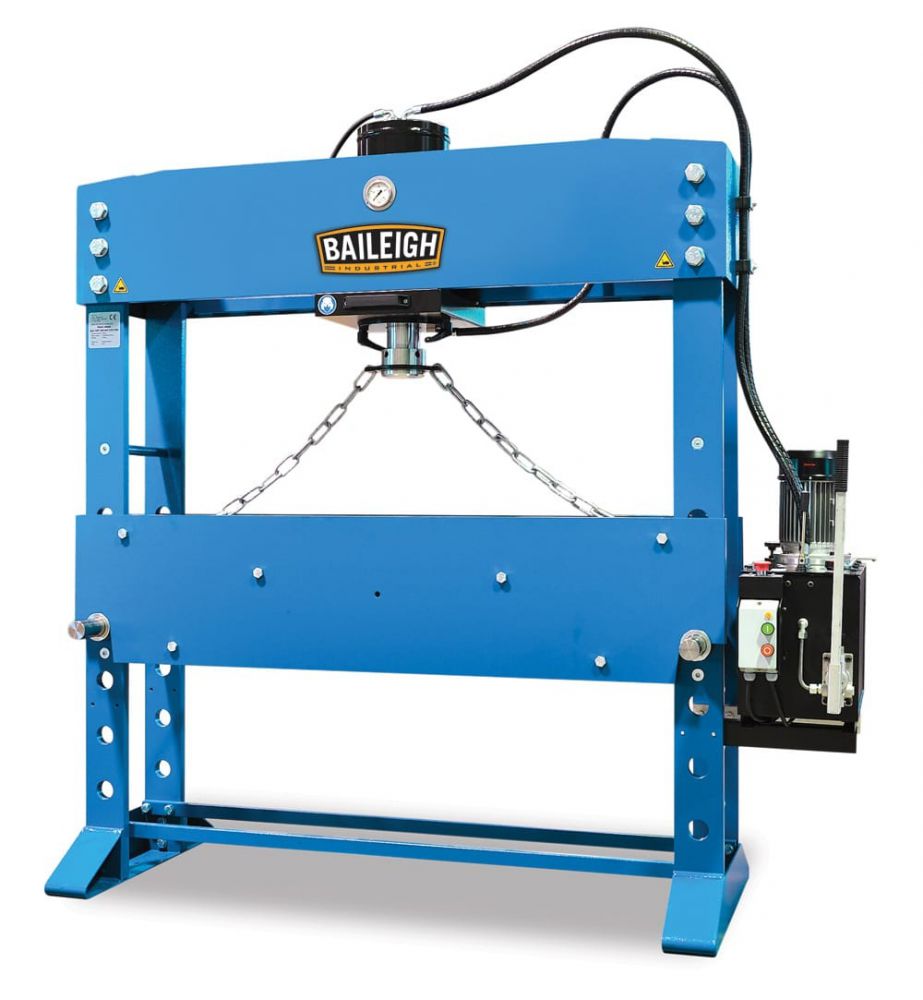

Baileigh HSP-110M-1500 Hydraulic Workshop Press

Baileigh HSP-110M-1500 Hydraulic Workshop Press

These Baileigh Industrial hydraulic workshop presses are extremely robust and built to last.

• The casing is very stable. It is made of quality welded steel sections.
• The hydraulic system is extremely precise, whether operated electrically or manually.
• The height of the heavy work table can be adjusted easily and effortlessly using the hydraulic cylinder.
• These Baileigh workshop presses are excellent for general assembly and straightening work, but also for testing work pieces or for pressing bearings in and out.That's why Baileigh workshop presses are a must for engineering workshops, repair firms and technical training institutions.
• Pressure manometer
• Automatic piston return
• User manual
• Motorised or hand operated
• Hydraulic unit with 2 speeds and pressure regulator
• Chrome piston with screw head
• Working width: 59"
• CE compliant, built in Europe
• Movable cylinder
• Hydraulic operation
• 100 metric tons of pressure
• Extra-wide model of the HSP-110M
• Movable cylinder design

• Item Number HSP-110M-1500
• Country of Manufacture Netherlands
• Return Speed 12.3 mm / sec.
• Maximum Pressure 266 bar
• Motor 2.2 kw
• Piston Head Diameter 120 mm
• Pump Speed 1.5 / 5.17 gal/min.
• Oil Capacity 30 liters
• Working Width .106″ / sec.
• System Oil Capacity 12 liters
• Lowering Speed .362″ / sec.
• Maximum Capacity 100 ton
• Cylinder Stroke 400 mm
• Cylinder Movable Yes
• Cylinder Diameter 254 mm
• Rpm 3000
• Power 400V / 3-Phase
• Shipping Weight 1250 kgs.
• Shipping Dimensions (Inches) 1900 x 900 x 2140 mm
