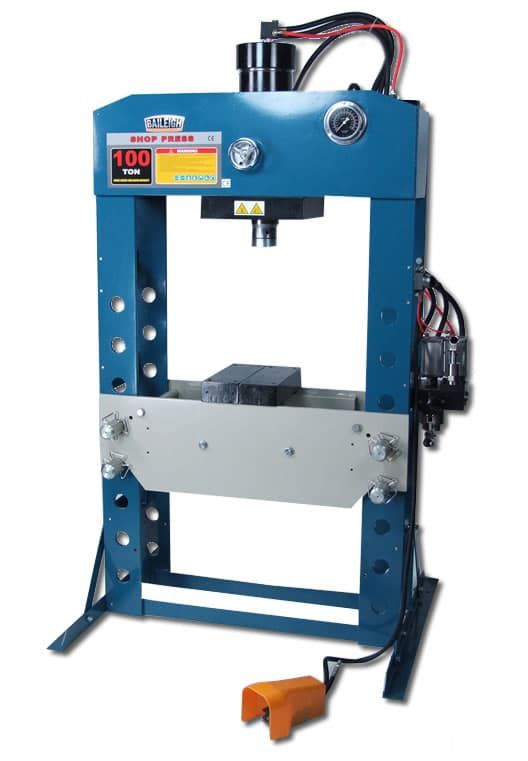

Baileigh HSP-100A Pneumatic Workshop Press

Baileigh HSP-100A Pneumatic Workshop Press

When you really need power to get the job done, the HSP-100A pneumatic shop press is the best you can get for the money. Any shop would love the 100 tons of raw power that this press can deliver.

• A fully welded frame made from plate steel helps add rigidity for less flex and more accurate pressing.
• Like all Baileigh Industrial products, it is covered by a 1 year warranty and designed to last years in any shop environment.
• The HSP-100A shop press uses industrial-grade hydraulic components to deliver the power.
• A heavy-duty 165mm movable hydraulic cylinder is a great benefit when working on off-centre parts.
• The HSP-100A has a 300mm stroke length that is controlled using a foot pedal.
• If even more control is needed a hand operated lever is also included.

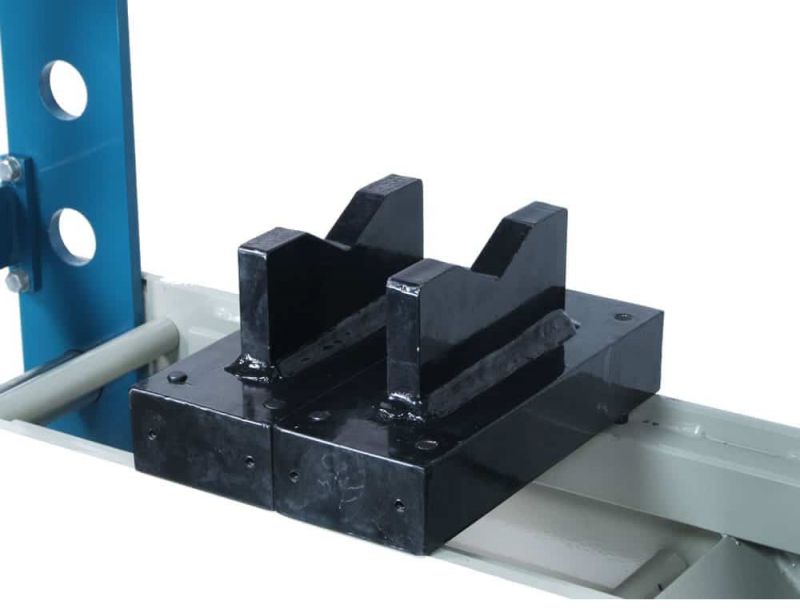

• The HSP-100A from Baileigh Industrial also includes a set of V-blocks for even more value.
• Pneumatic operation
• 89 metric tons of pressure

• Item Number HSP-100A

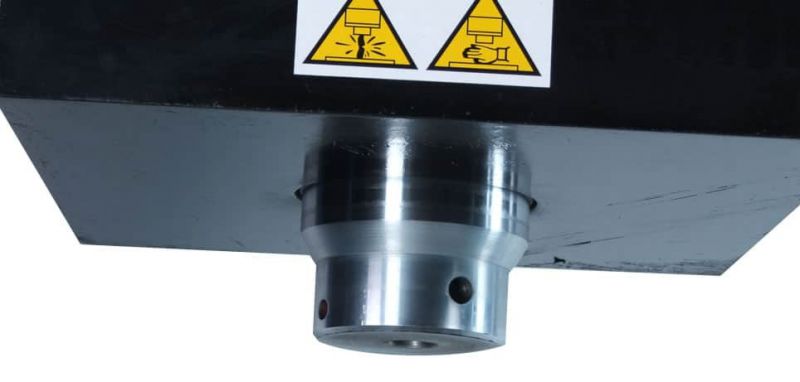

• Piston Head Diameter 89 mm
• Movable Cylinder Yes
• Maximum Capacity 89 ton
• Cylinder Stroke 300 mm
• Cylinder Diameter 165 mm
• Power Pneumatic / Manual
• Shipping Weight 775 kgs.
• Shipping Dimensions (Inches) 2184 x 1143 x 610 mm
