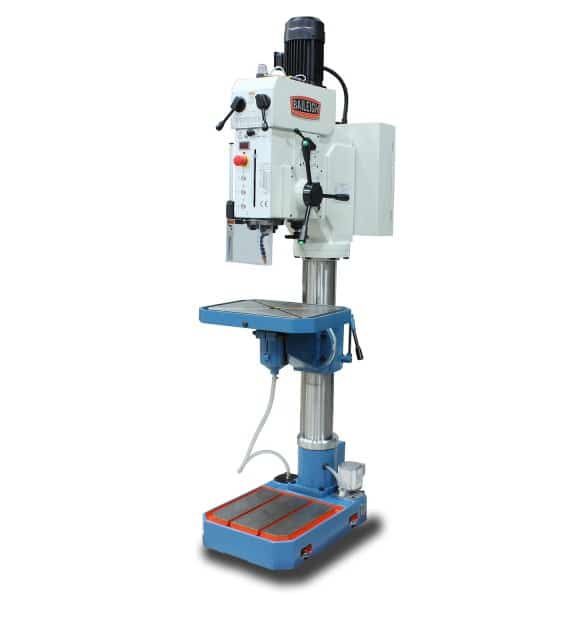

Baileigh DP-1850G Gear Driven Drill Press 400v

Baileigh DP-1850G Gear Driven Drill Press 400v

The DP-1850G drill press harnesses a lot of power for its price. This variable-speed drill press can handle those bigger, tougher jobs at your fabrication or machine shop.

• 2 hp motor runs on 400 volt 3-phase power.26-3/4” swing to tackle large pieces of material.
• Drills a maximum capacity of 1.57” with a tapping capacity of up to 1”.
• Gear head turns at speeds between 90 and 2425 rpm, so you can select the right speed for almost any application.
• #4 Morse spindle taper feed is electric and completely adjustable.
• Massive column and cast steel base reduce flexing even when you’re drilling at full capacity.
• 21-1/4” x 17-1/4” work table with X-pattern T-Slots.
• 7” table-slots allow for a vise or fixture to get a firm hold on the material.
• Includes an electronic power-down feed
• Gear driven
• 40mm capacity
• Speeds between 90 to 2425 rpm

• Item Number DP-1850G
• Spindle Speeds 12
• Max. Drill Capacity 1.57″
• Max. Tapping Capacity 7/8″
• Swing 26-3/4″
• Distance from Spindle to Table 4″ to 24-3/8″
• Distance from Spindle to Base 47″
• Spindle Taper MT-4
• Spindle Travel 7-3/4″
• Spindle Speed Range 90-2,425 RPM
• Power Feed .0047″, .0094″, .0157″
• Table Size 17-1/4″x 21-1/4″
• Base Size 33″ x 25″
• T-Slot Width .7″
• Motor 2 hp
• Power 400V 3-phase
• Shipping Weight 1200 lbs
• Shipping Dimensions (Inches) 89″ x 23″ x 43″
