Baileigh DP-1250VS-HS Variable-Speed High-Speed Metalworking Drill Press 240v

Baileigh DP-1250VS-HS Variable-Speed High-Speed Metalworking Drill Press 240v

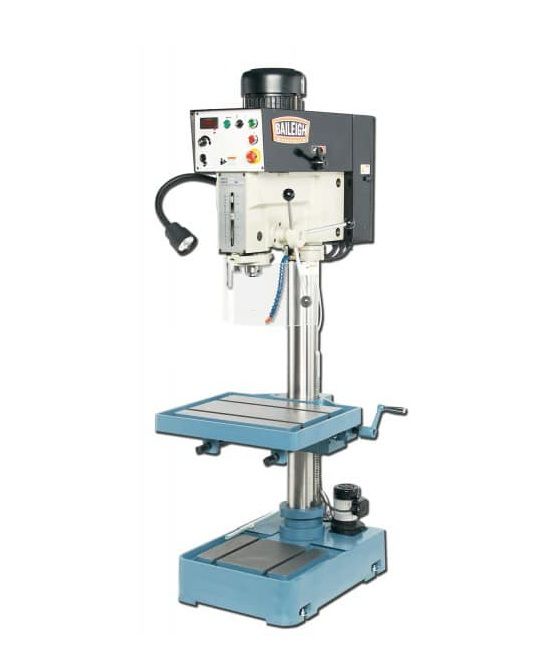

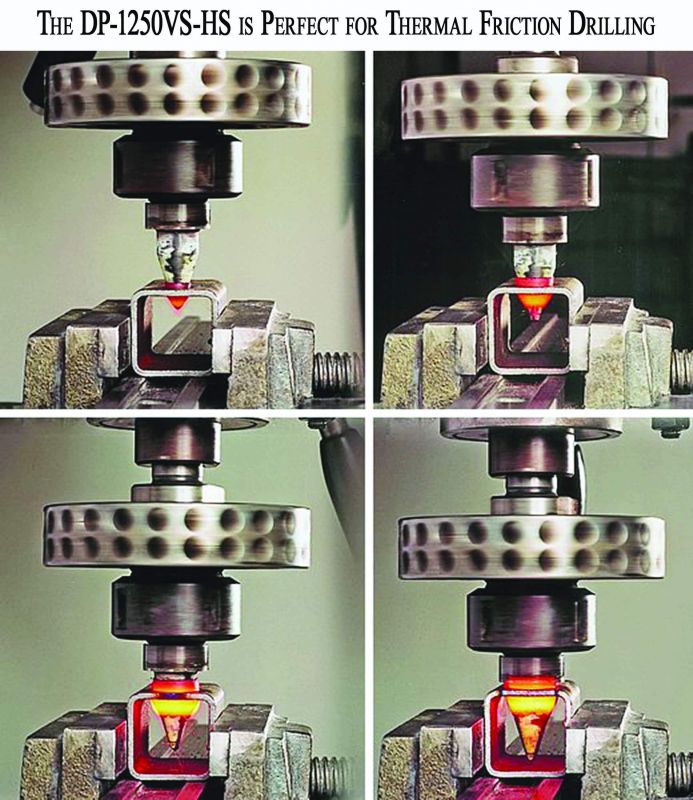

The DP-1250VS-HS is a high-speed version of the DP-1250VS from Baileigh Industrial. The reason for the high-speed is to allow any shop to enjoy the process of thermal friction drilling. This is a unique process in which a specially designed drillbit melts the material, creating inner walls that can then be tapped. But in order to use this process, the bit must be turning more than 3000rpms. This is where the DP-1250VS-HS high-speed drill press comes in.The DP-1250VS-HS shares all the exact same features as the DP-1500VS and would be perfect for anybody looking to upgrade their current drill.

• The DP-1250VS-HS from Baileigh Industrial is a 20 drill press that has a capacity of 1.5 mild steel.

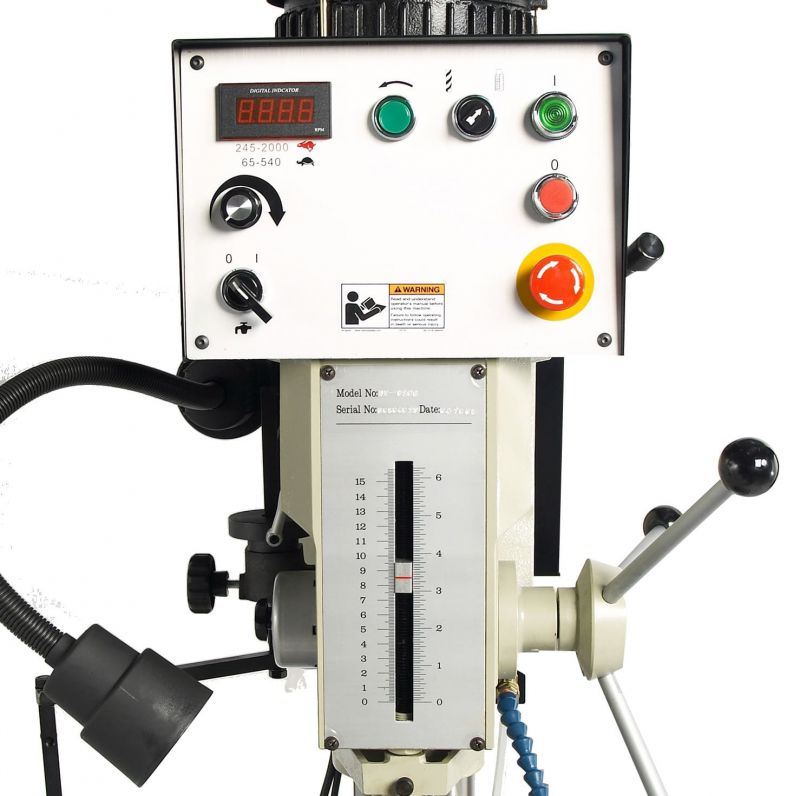

• It uses 220 volt, single phase power to run a Delta inverter.
• The inverter regulates the amount of power and RPMs to the spindle.
• Using an inverter to drive its massive MT4 spindle gives the DP-1250VS-HS the ability to set RPMs to an exact speed; from 0rpm to 4000rpm.
• It also has a reverse function and can tap.
• The DP-1250VS-HS uses a heavy-duty cast iron base that has a coolant system built right in.
• The DP-1250VS-HS also has a 4.5 wide column that was designed to minimise the flex.

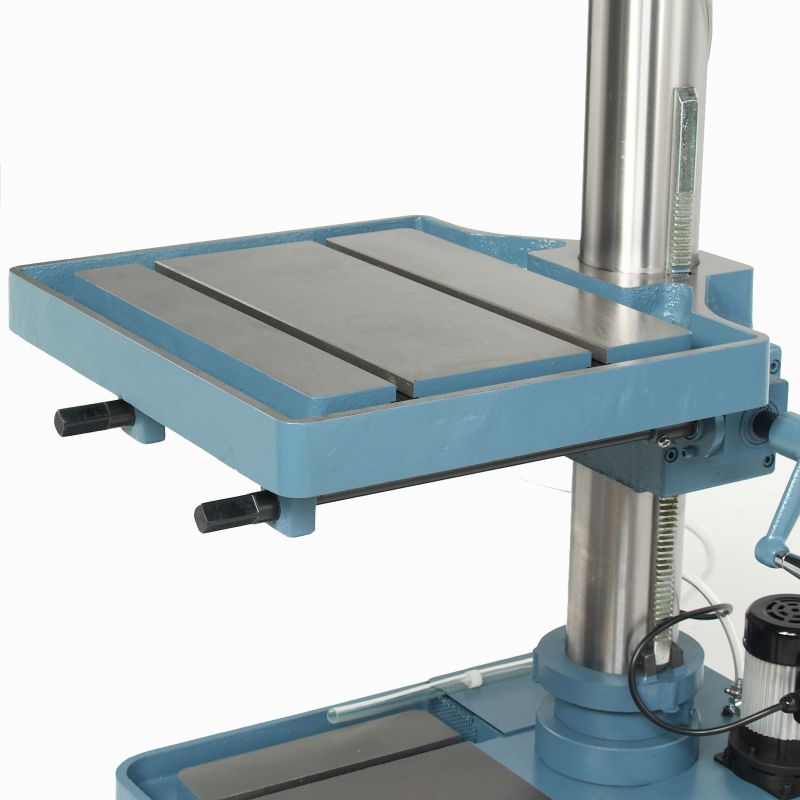

• The worktable has been machined, polished and has T-slots for work-holding devices.

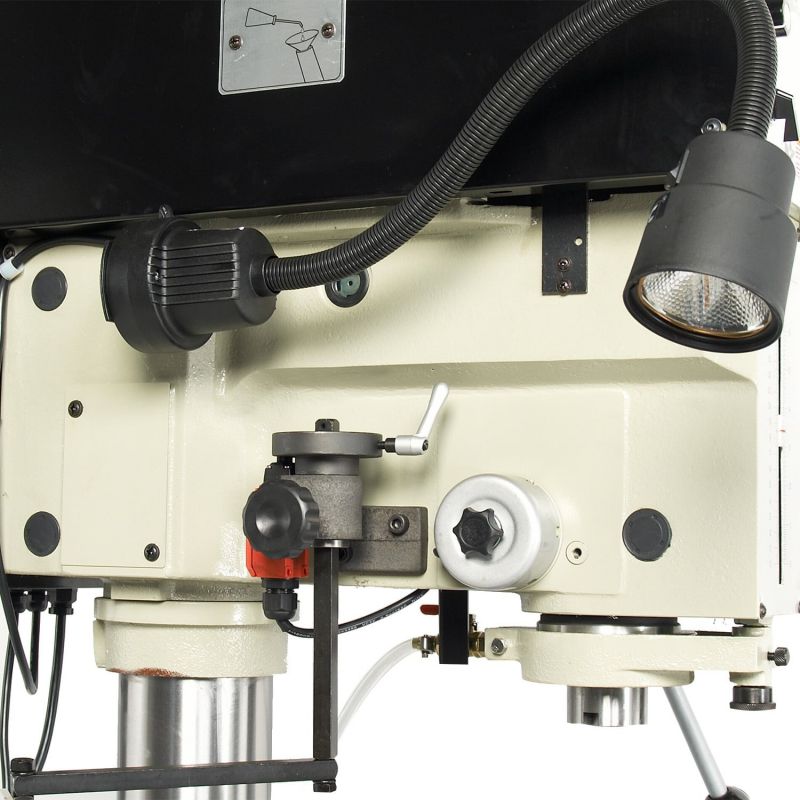

• Other features include a spindle safety shield with limit switch and halogen worklight.
• Inverter driven
• MT4 spindle taper
• 32mm capacity
• High-Speed Operation

• Item Number DP-1250VS-HS
• Country of Manufacture Taiwan
• Table Dimensions 559 mm x 470 mm
• Motor 1.5 kW
• Quill Diameter 75 mm
• Spindle Nose to Table 925 mm
• Spindle Nose to Base 1225 mm
• Spindle Speed High 540 – 4000 rpm
• Spindle Speed Low 85  540 rpm
• Spindle Taper MT 4
• Table Slot 16 mm
• Tapping Capacity 19 mm
• Motor Coolant 0.125 kw
• Shipping Weight 385 kgs.
• Swing 530 mm
• Drill Capacity 32 mm
• Spindle Travel 150 mm
• Column Diameter 115 mm
• Base Dimensions L x W 685 mm x 485 mm
• Shipping Dimensions (Inches) 620 x 940 x 1870 mm
