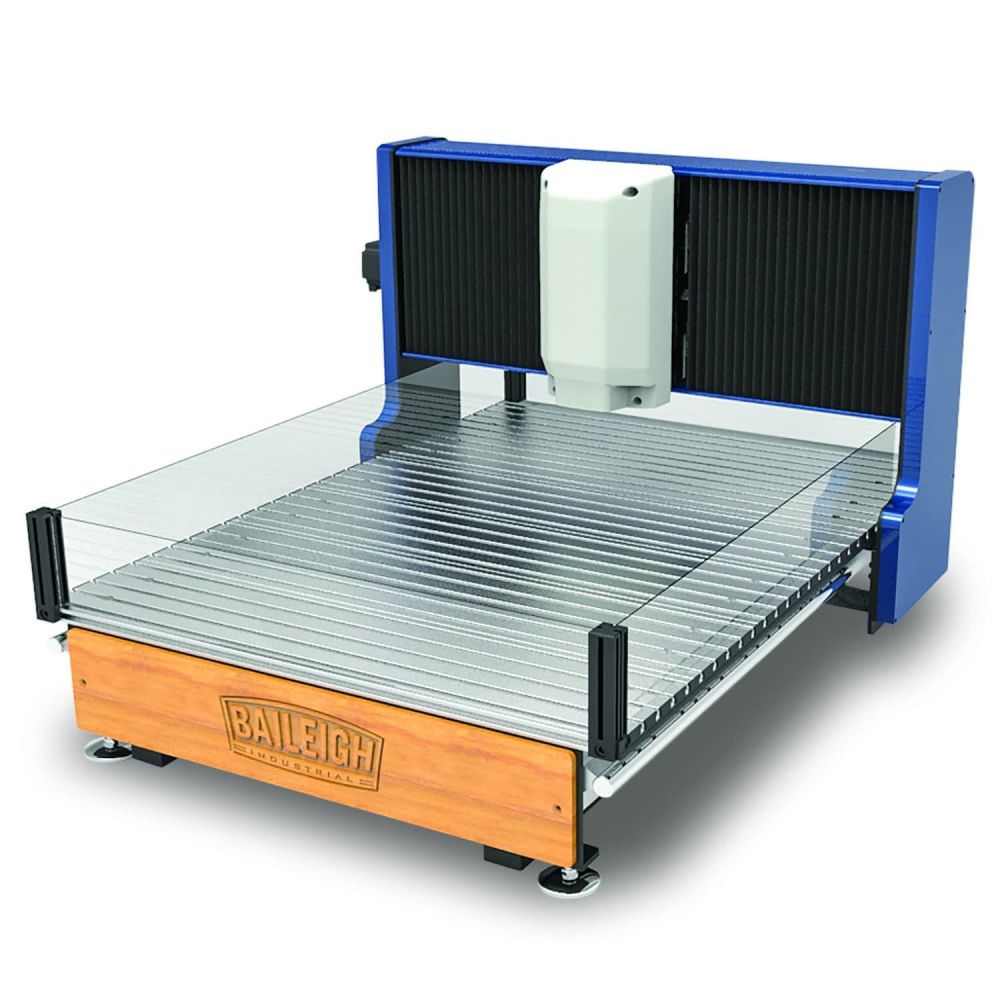

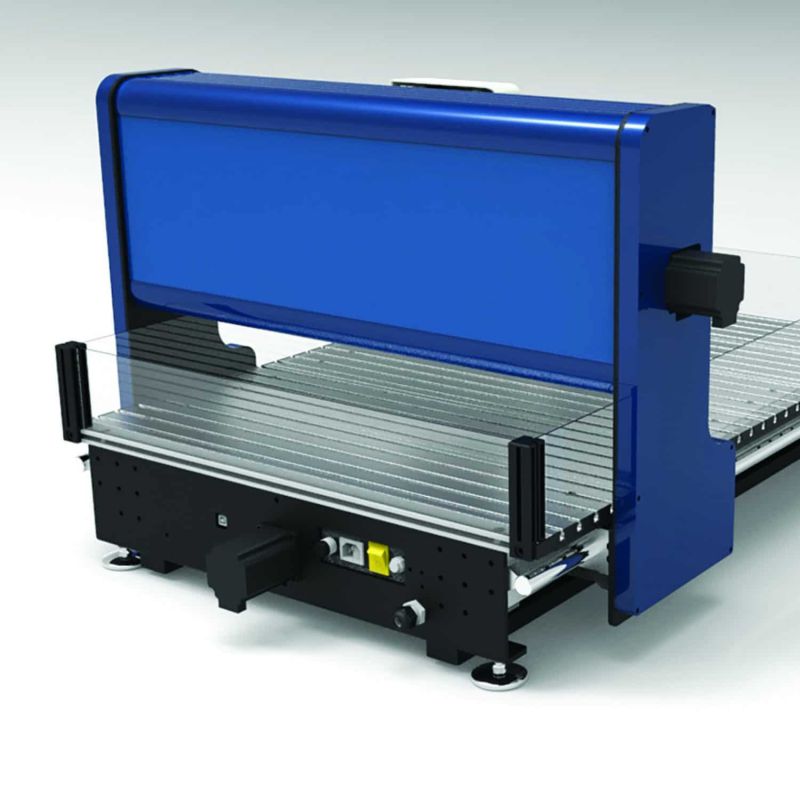

Baileigh DEM-2720 Desktop CNC Engraver

Baileigh DEM-2720 Desktop CNC Engraver

The DWR-2720 desktop CNC router table comes with software, and tooling - often not included with competing tables that cost more. Built to last and the router arrives fully assembled.

• 510mm x 760mm working area.
• Recommended for sign-makers, and hobbyists.
• Powerful 200 watt DC Brushless Motor.
• Up to 20,000 rpm variable spindle speed.

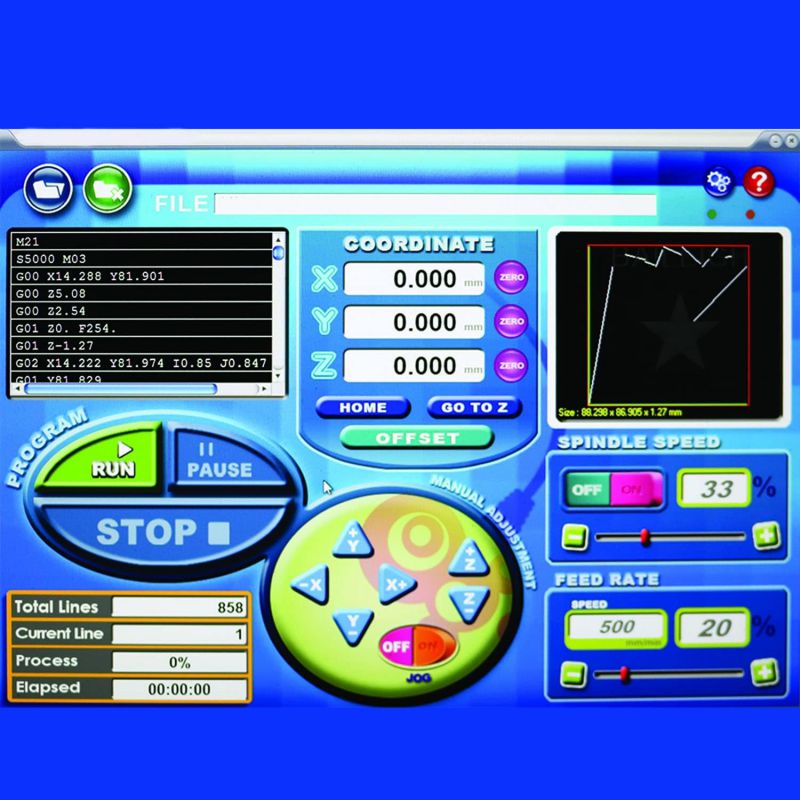

• Easy-to-learn design software; just install it onto your computer and start creating patterns.

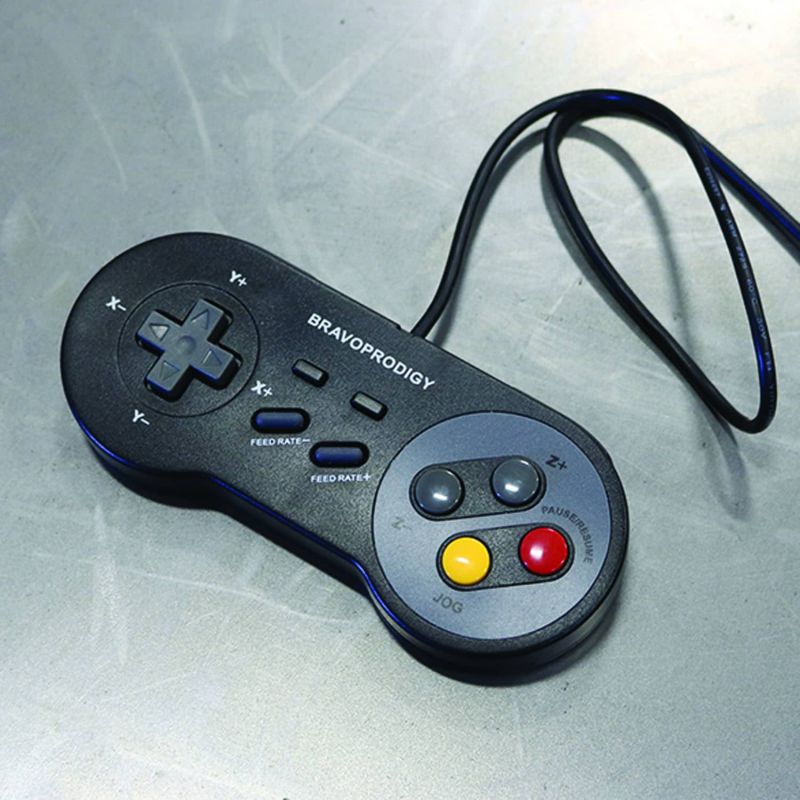

• Upload your design file to the table via a USB drive, then use the convenient handheld controller to move the spindle.
• Stepper motors move the spindle at a maximum speed of 98.43" per minute.
• Lead screw X, Y, and Z axis movement for accurate positioning.
• ER-11 4.0 mm tooling diameters.
• 4 T-slotted clamps fit on the table to hold the material down for clean cuts.
• Structurally strong extruded aluminum table won't buckle under material weight or spindle pressure.
• The desktop CNC router table ships pre-built with correct alignment for a fast and simple set-up - just an hour or so to uncrate the table and get started with the software.
• Covered by a 1-year parts warranty.
• 510mm x 760mm working area
• 0.02mm accuracy
• 240 volt power

• Item Number DEM-2720
• Actual Working Area 510mm x 760mm
• Speeds 0 – 20,000 rpm
• Z Axis Stroke 100mm
• Maximum Moving Speed (Inches Per Minute) 98.43
• Maximum Engraving Speed (Inches Per Minute) 98.43
• Reposition Accuracy 0.02mm
• Tool Diameters Collets: 4mm, 6mm
• Power 240V, 50Hz, 1-Phase
• Length 815mm
• Width 990mm
• Height 560mm
• Weight (lbs) 155 lbs
• Table Style T-Slot
