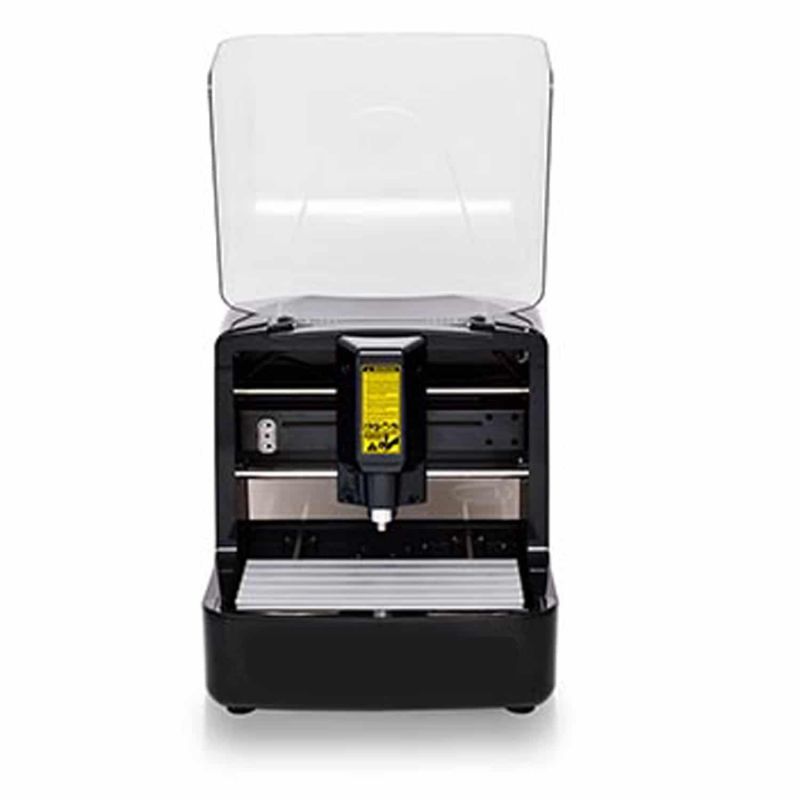

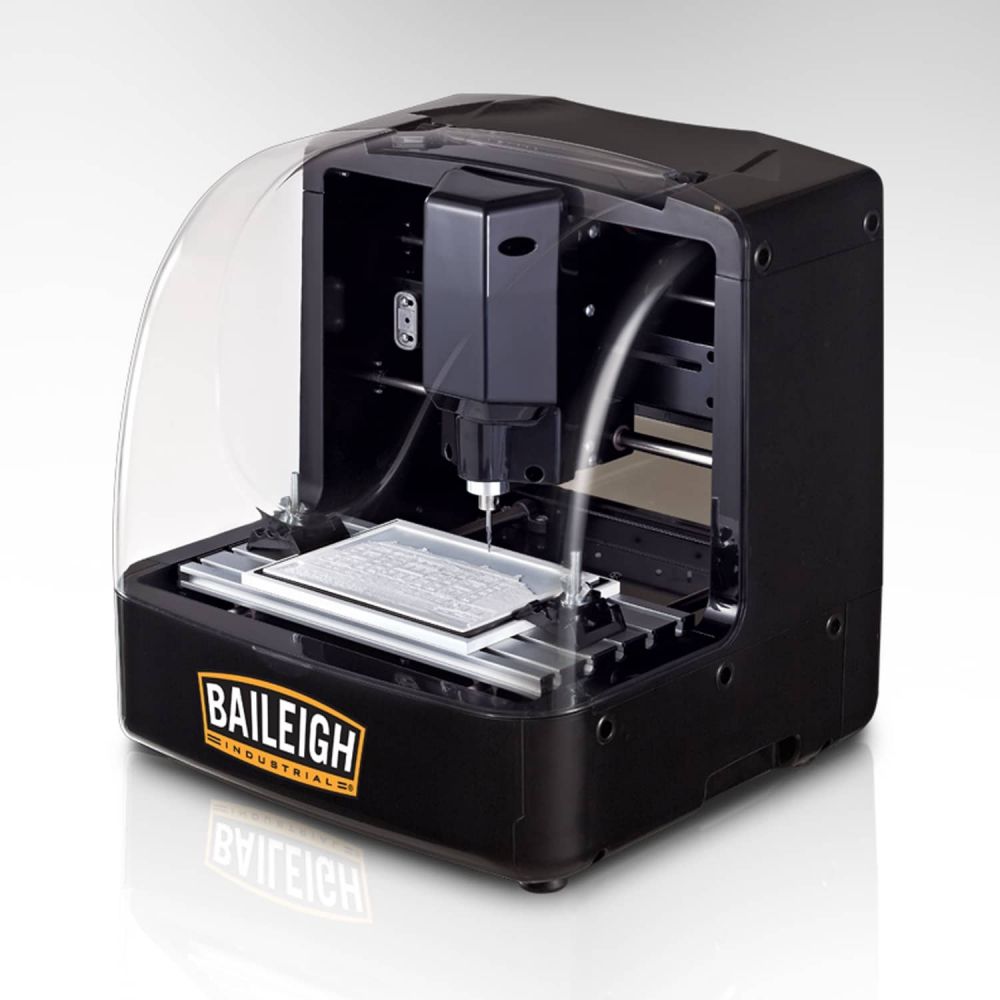

Baileigh DEM-0906 Desktop CNC Engraving Table

Baileigh DEM-0906 Desktop CNC Engraving Table

The DEM-0906 is a small, lightweight, and portable mini desktop CNC engraver - not only for small woodworking projects, but also for acrylic and ABS lathophane, EVA foam, styrofoam, modeling wax, plastic, soft metal. It's able to carve products like tooling boards, toolboxes, tiny ornaments and other miscelaneous projects. The DEM-0906 CNC engraving table comes with software, and tooling - often not included with competing tables that cost more. Built to last and the router arrives fully assembled.

• 221mm x 160mm working area.
• Recommended for sign-makers, and hobbyists.
• Powerful 80 watt DC Brushless Motor.
• Up to 15,000 rpm variable spindle speed.

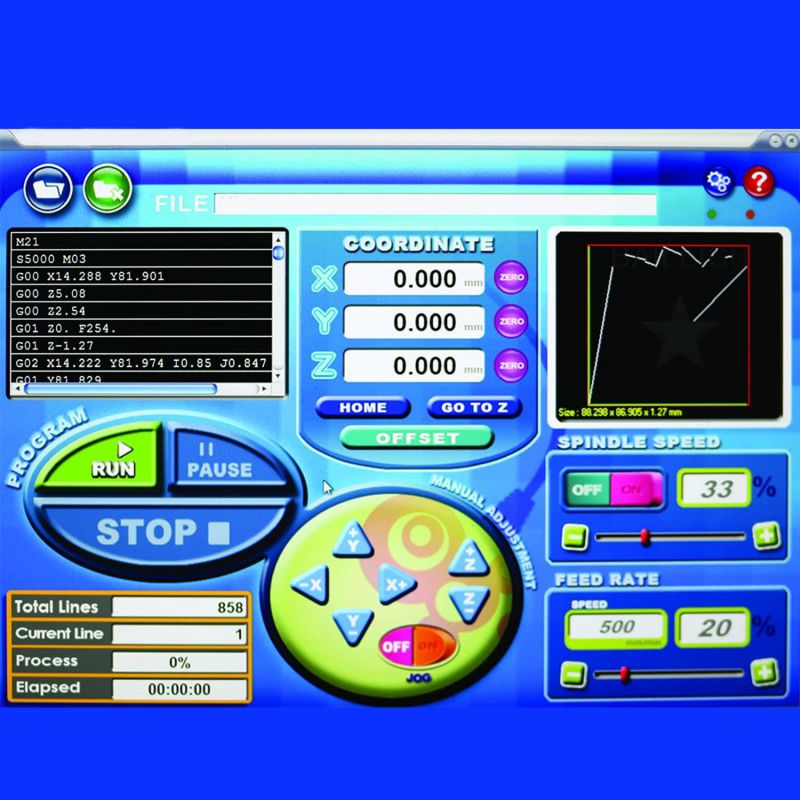

• Easy-to-learn design software; just install it onto your computer and start creating patterns.

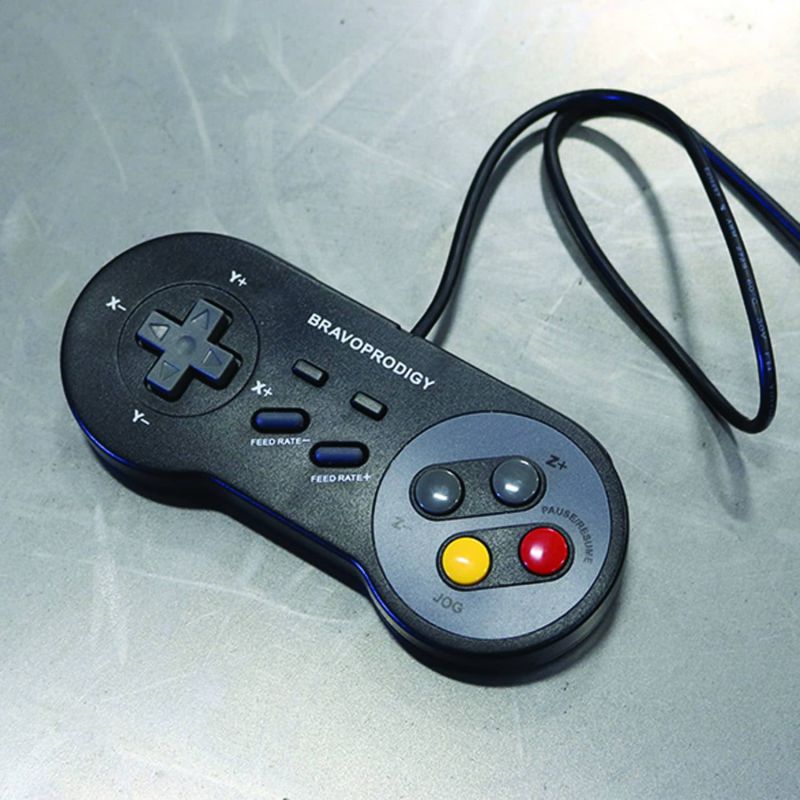

• Upload your design file to the table via a USB drive, then use the convenient handheld controller to move the spindle.
• Stepper motors move the spindle at a maximum speed of 98.43" per minute.
• Belt driven X, Y, and Z axis movement for accurate positioning.
• 4 T-slotted clamps fit on the table to hold the material down for clean cuts.
• Laser engraver ready, (sold seperatly).
• Structurally strong extruded aluminum table won't buckle under material weight or spindle pressure.
• The table ships pre-built with correct alignment for a fast and simple set-up - just an hour or so to uncrate the table and get started with the software.
• Covered by a 1-year parts warranty.
• 221mm x 160mm working area
• 0.02mm accuracy
• 240 volt power

• Item Number DEM-0906
• Special Notes Laser Engraver Ready, Sold Separately
• Actual Working Area 221mm x 160mm
• Speeds 0 – 15,000 rpm (Variable)
• Z Axis Stroke 63mm
• Maximum Moving Speed (Inches Per Minute) 98.43
• Maximum Engraving Speed (Inches Per Minute) 98.43
• Reposition Accuracy 0.02mm”
• Tool Diameters 4.0 mm
• Power 240V, 50Hz, 1-Phase
• Length 390mm
• Width 400mm
• Height 425mm
• Weight (lbs) 33
• Table Style T-Slot
• Max. Table Load 3kgs
• Notes: Includes Power Cord, USB 2.0 Cable, Controller, Allen Key_2.5mm & Spare Socket Screw, Silicone Mat, Tungsten Carbide Tool, Clamp set ( big x 2 pcs, small x 2 pcs ), Support Board
