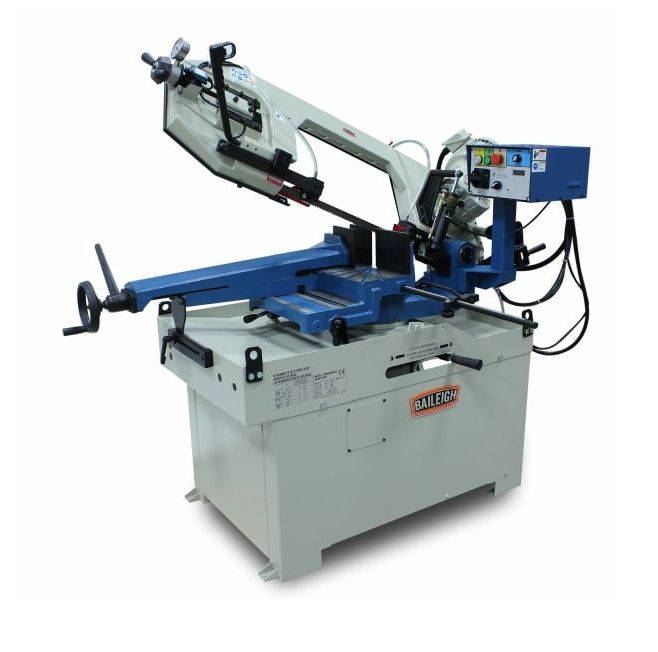

Baileigh BS-350M Dual Mitering Bandsaw 240V

Baileigh BS-350M Dual Mitering Bandsaw 240V

This dual mitering saw has a full cast iron head and bow that swivels 60° right and 45° left. The BS-350M has a 90° round capacity of 267mm, making this the perfect saw for almost any fabrication shop.

• The BS-350M features a 3hp motor which is driven by an AC inverter built to deliver the reliability that most shops demand.
• The BS-350M is built to make the straightest, highest quality cuts on the market. This is achieved through the use of the best materials, such as fully cast iron that is machined to exacting tolerances as well as precision ball bearing guides, which provide the most accurate cuts and long blade life.

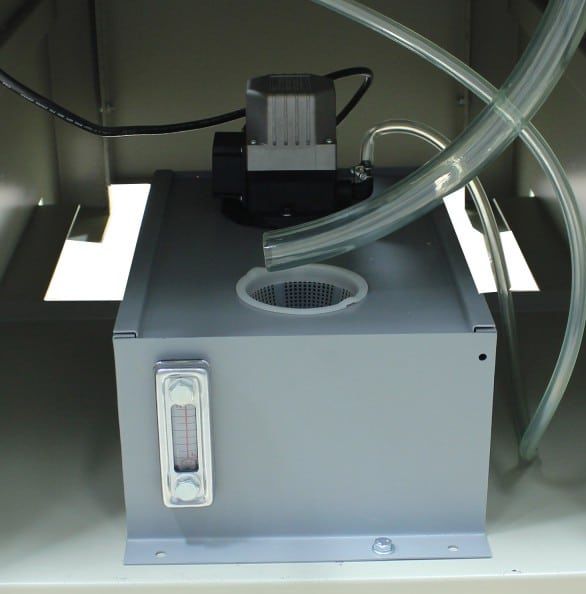

• A full flood coolant system is also standard on the BS-350M.

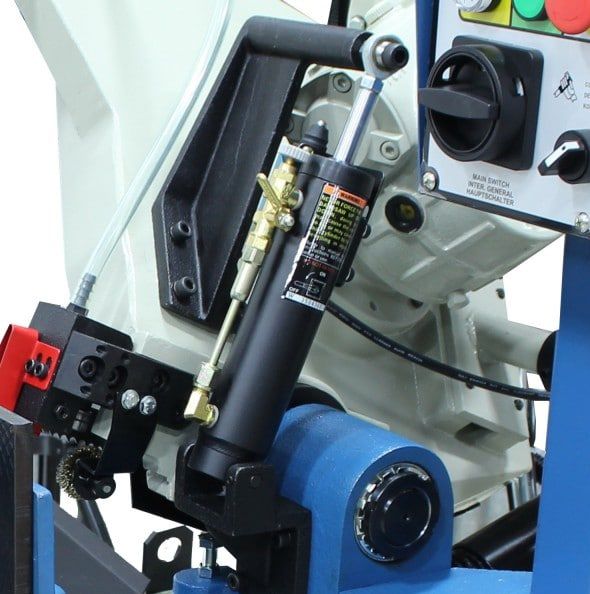

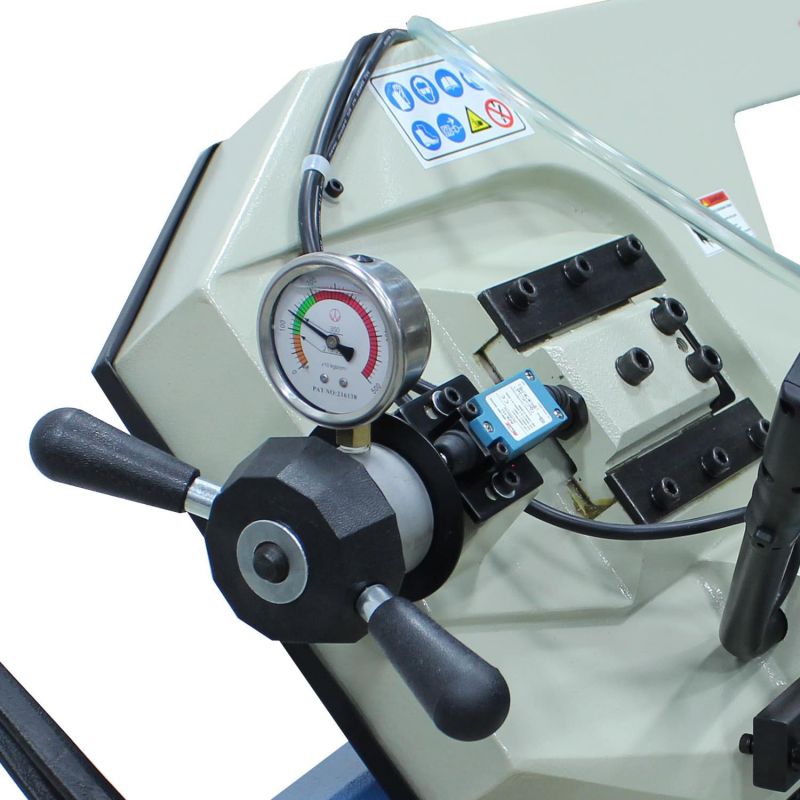

• There are two mode of operation depending on your preference: The first option is manual descent for small production runs. The operator simply turns on the machine with a trigger switch in the descent handle, and manually guides the bandsaw blade through the material. This mode is perfect for the small or medium sized fabricators needs. The second option is to use the hydraulic descent. The hydraulic descent has a down feed adjustment for feed pressure, and is perfect for larger production runs, increases blade life and reduces operator fatigue.
• 1ph Dual-Mitering Manual
• 270mm round capacity
• 0°-45° mitre l, 0°-60° mitre r
• Hydraulic descent

• Item Number BS-350M
• Country of Manufacture Taiwan
• Motor Hp 2
• Return Manual
• Miter Adjustment Dual Swivel Head
• Miter Angle 0  60°, 45°L
• Motor High Torque 1.5Kw (AC)
• Capacity Square 90 x 45 x 60 x 45L 260 mm x 220 mm x 150 mm x 180 mm
• Capacity Round 90 x 45 x 60 x 45L 270 mm x 240 mm x 160 mm x 210 mm
• Capacity Rectangular 90 x 45 x 45L 350 x 220 x 240 x 160 x 185 x 110 mm
• Table Height 889 mm
• Blade Guide Carbide x Roller
• Blade Size (H x W x L) 25 x 1 x 3160 mm
• Blade Speed 20 – 85 mpm
• Descent Control Hydraulic
• Drive Gear
• Power 240v Single phase
• Shipping Weight 431 kgs.
• Shipping Dimensions (Inches) 1753 x 762 x 1219 mm
