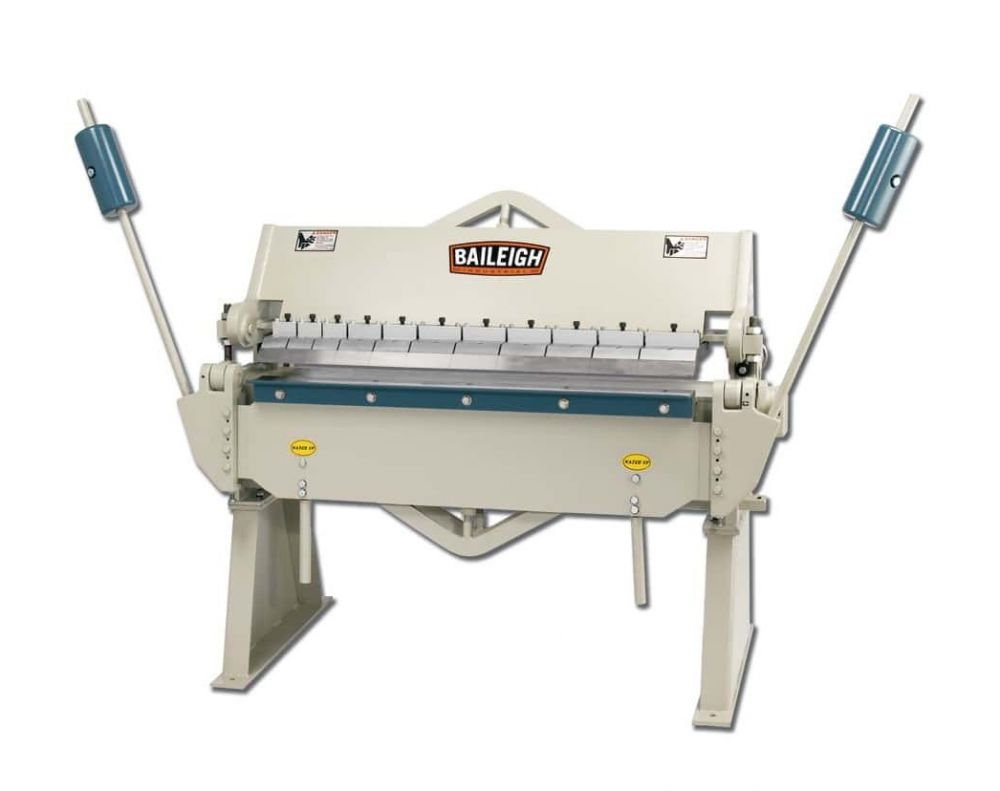

Baileigh BB-4812 Box and Pan Folder 1270mm

Baileigh BB-4812 Box and Pan Folder 1270mm

The BB-4812 box and pan brake from Baileigh Industrial is a must in every type of metal fabrication shop. Its compact size makes it a great fit for tight floor plans, but the heavy-duty construction makes it one of the most powerful manual finger breaks available for its size.

• The fully welded framework, supported by solid steel adjustable trusses, allow the BB-4812 sheet metal brake to bend 2.8mm mild steel over the entire 48 length.
• The BB-4812 weighs in at just less than 2000lbs, truly making it one heavy-duty sheet metal brake.
• The BB-4812 finger brake comes with 11 hardened and polished 3-piece fingers of varying lengths that allow the operator to configure the sheet metal brake in any way possible.
• Because of the three piece design, the box depth of the BB-4812 is 6", making it one of the largest on the market.
• The heavy-duty apron on the BB-4812 has an integrated stop-rod for repeatability.
• Also included is a pair of heavy counterweights to assist the operator in the bending of 12 gauge sheet metal.
• The BB-4812 is built to offer years of service.
• 2.6mm mild capacity
• 1.6mm stainless capacity
• 1270mm folder length
• 0° – 135° bend angle

• Item Number BB-4812
• Country of Manufacture Taiwan
• Min Reverse Bend 16 mm
• Mild Steel Capacity 2.6mm
• Thickness (SS) 12 ga. (16 ga.)
• Box Depth 152 mm
• Beam Adjustment 25.4 mm.
• Bend Angle 0  135°
• Finger Sizes 3″  4″  5″  6″
• Shipping Weight 900 kgs.
• Length 1270 mm
• Shipping Dimensions (Inches) 1803 x 864 x 1118 mm
