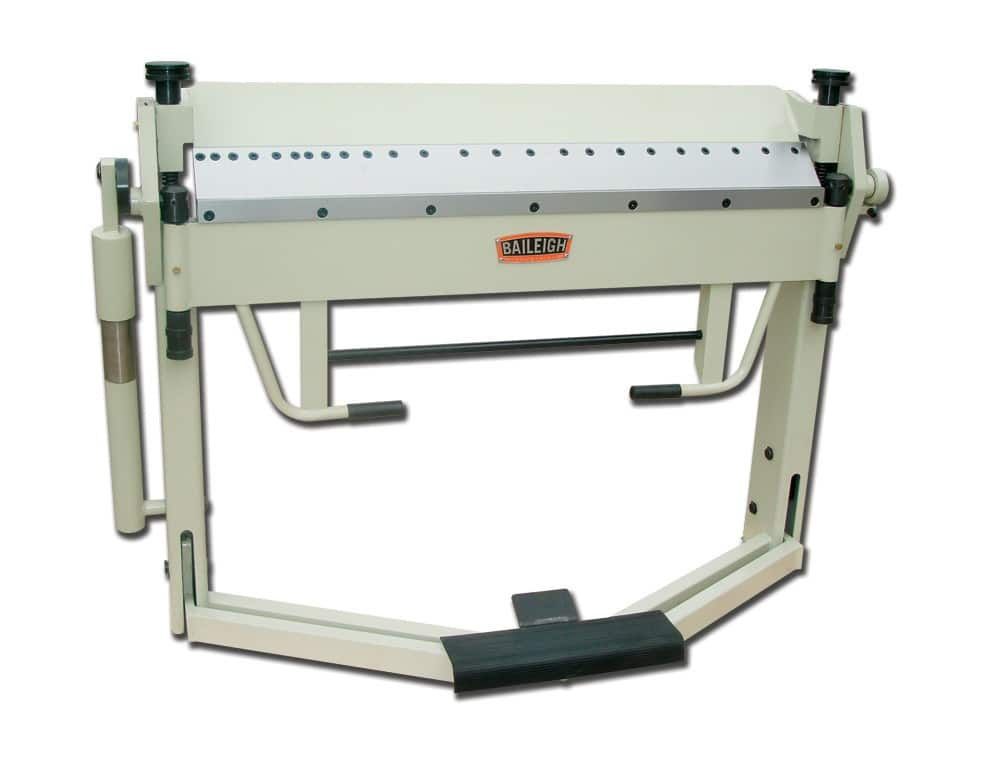

Baileigh BB-4012F Box and Pan Folder 1016mm

Baileigh BB-4012F Box and Pan Folder 1016mm

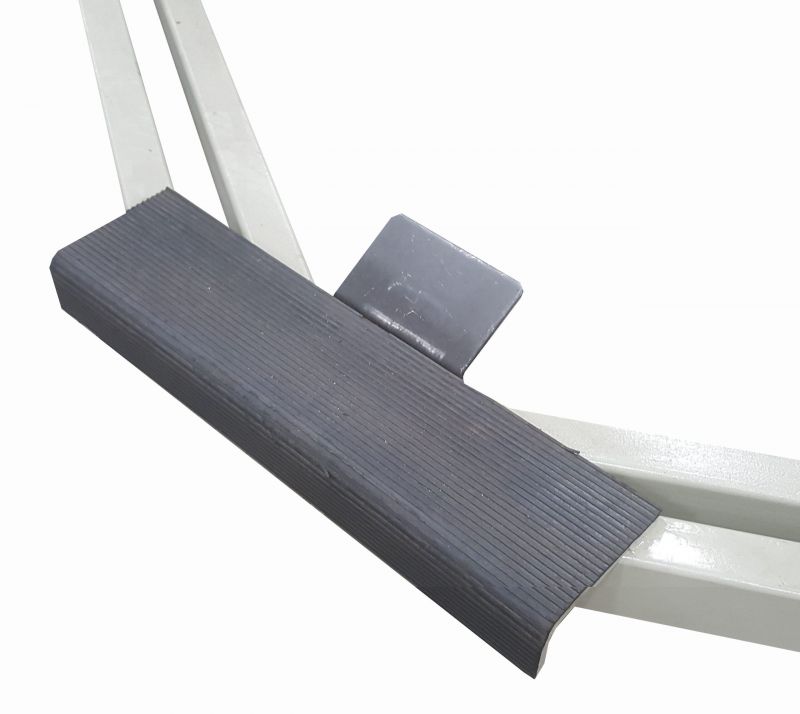

Baileigh Industrial's BB-4012F finger brake allows the operator to clamp the material with his or her foot, so both hands are free for perfect positioning of the sheet metal before clamping the material in place. Although different from other sheet metal brakes on the market, the BB-4012F is definitely a machine built from the best possible components.

• The BB-4012F finger brake comes standard with hardened fingers in an assortment of different widths to accommodate bending various sizes and shapes of tanks, pans, boxes and much more.
• Another nice feature of the BB-4012F box and pan brake is an easy-to-adjust gap adjustment, this is important to get a correct bend when braking various gauges of sheet metal.
• A spring loaded cylinder assists lifting the apron which gives assistance to the operator when bending at full capacity, which is an impressive 2.5mm mild steel at a full 40 inches.
• The BB-4012F sheet metal brake also features hardened fingers and bending die for long life and years for use along with an adjustable Bend Stop.
• The BB-4012F, like all of Baileigh Industrial's box and pan brakes, is typically in stock for fast shipment.
• 2.7mm mild capacity
• 1.6mm stainless capacity
• 1016mm folder length
• 0° – 135° bend angle

• Item Number BB-4012F
• Thickness (SS) 12 ga. (16 ga.)
• Box Depth 64 mm
• Bend Angle 0  135°
• Max. Clamping Bar Lift Foot Operated 47 mm
• Finger Sizes 25 mm, 30 mm, 35 mm, 40 mm, 45 mm, 50 mm, 76 mm, 100 mm
• Shipping Weight 320 kgs.
• Length 1016 mm
• Shipping Dimensions (Inches) 1473 x 635 x 1270 mm
