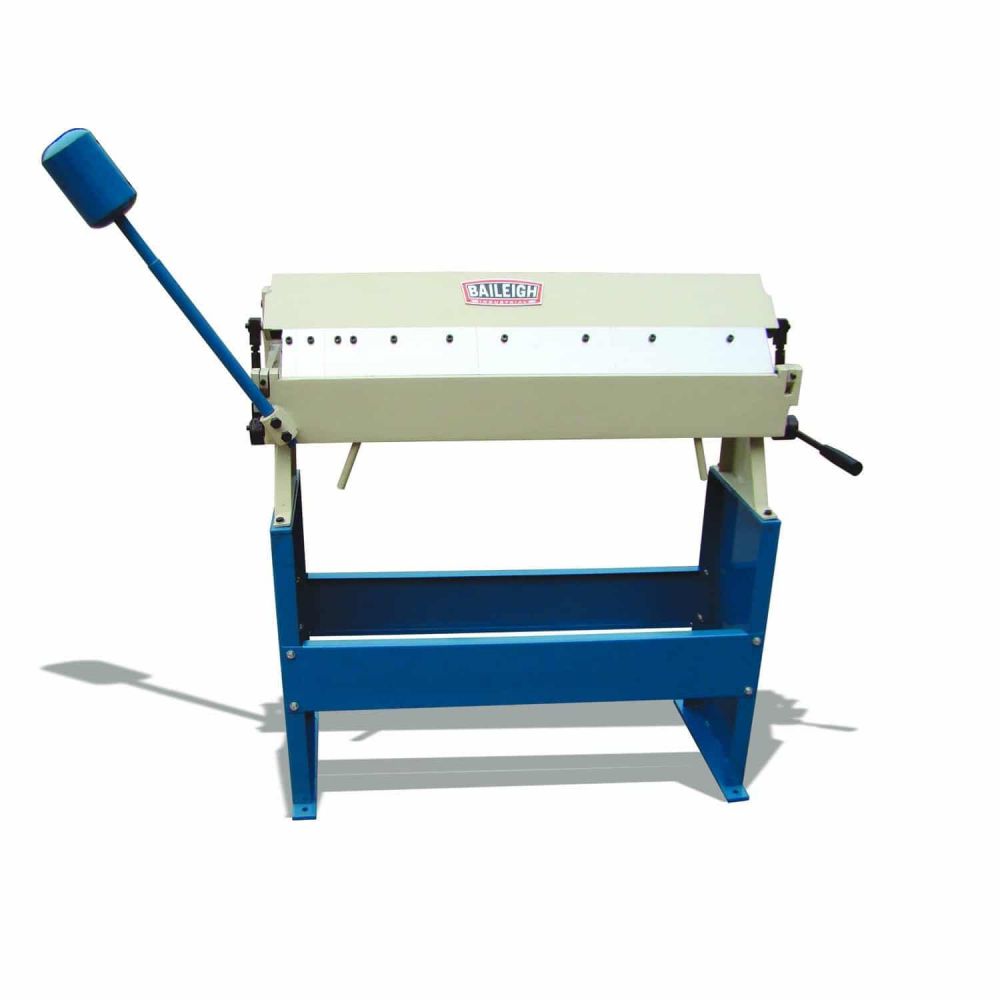

Baileigh BB-3616E Box and Pan Folder 915mm

Baileigh BB-3616E Box and Pan Folder 915mm

Sometimes a job requires a more delicate machine to get the job done. The large robust sheet metal brakes that most metal fabrication shops haves might be too difficult to operate when working with short pieces of sheet metal. That is where the BB-3616E finger brake fits in, its small size allows for easier operation while not sacrificing on quality.

• Built to the best standards, but at an economical price.
• The BB-3616E sheet metal folder has an assortment of 10 fingers to allow for fabricating various depths and sizes of boxes and pans out of sheet metal that is 16 gauge mild steel or thinner.
• This finger brake's heavy-duty construction consists of plate steel and an electrowelded frame work that allows for crisp bend angles even at the middle of the beam at full capacity.

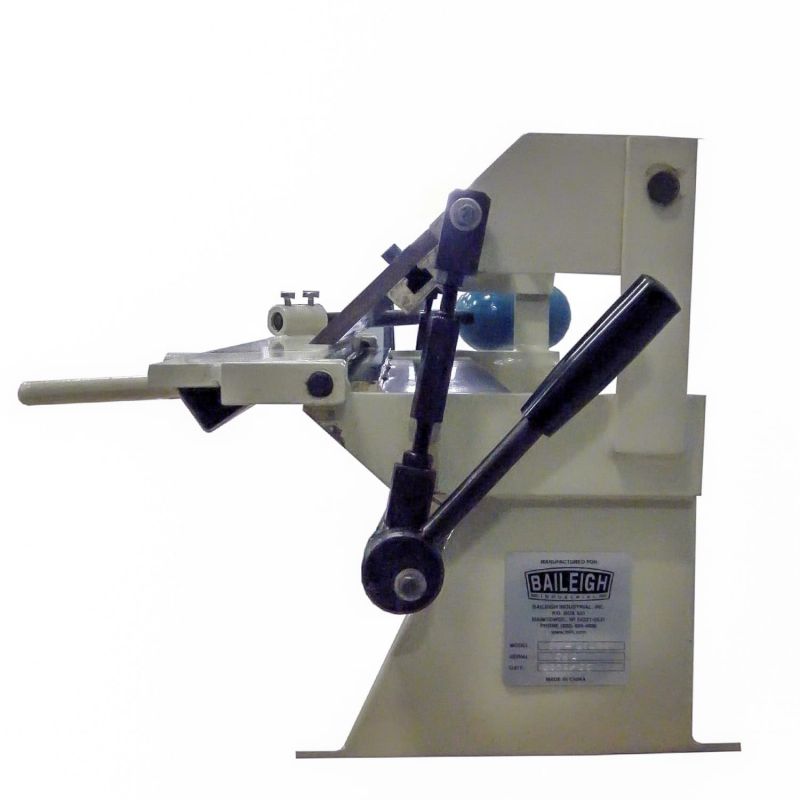

• This finger brake has a heavy counterweight to assist lifting the apron, which comes in handy when bending at full capacity.

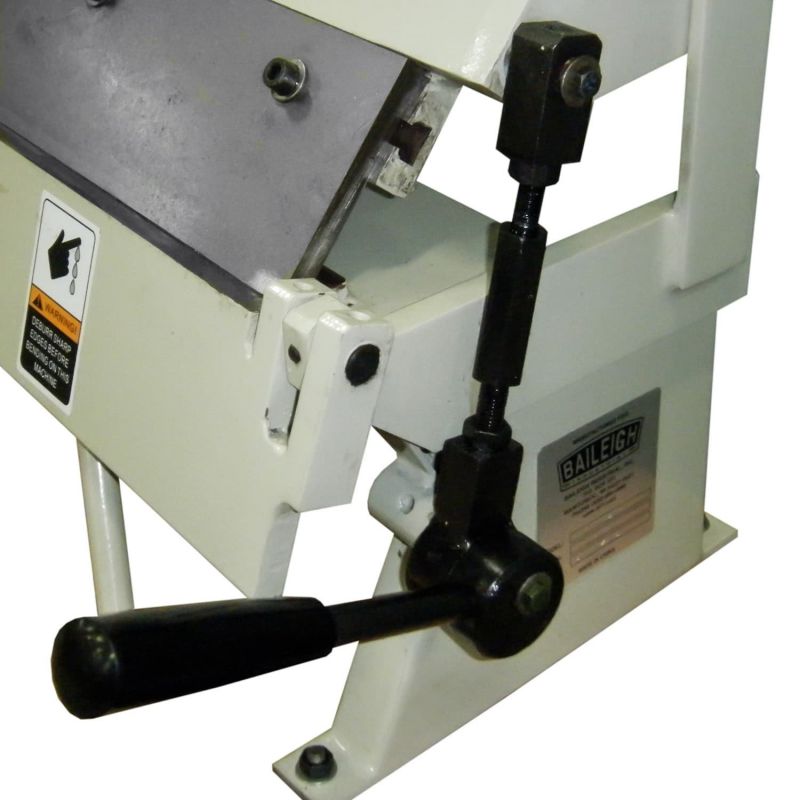

• There is a finger gap adjustment on the right and left of the bend brake to allow for different gauges of material.
• 1.6mm mild capacity
• 1mm stainless capacity
• 915mm folder length
• 0° – 135° bend angle

• Item Number BB-3616E
• Thickness 16 ga. (20 ga.)
• Stand Yes
• Box Depth 35mm
• Bend Angle 0  135°
• Shipping Weight 123 kgs.
• Length 915 mm
• Shipping Dimensions (Inches) 1194 x 406 x 584 mm
